Oxygen Deficiency Monitor

A fixed oxygen monitor that warns occupants and ventilation controls when inert gas displaces breathable air.

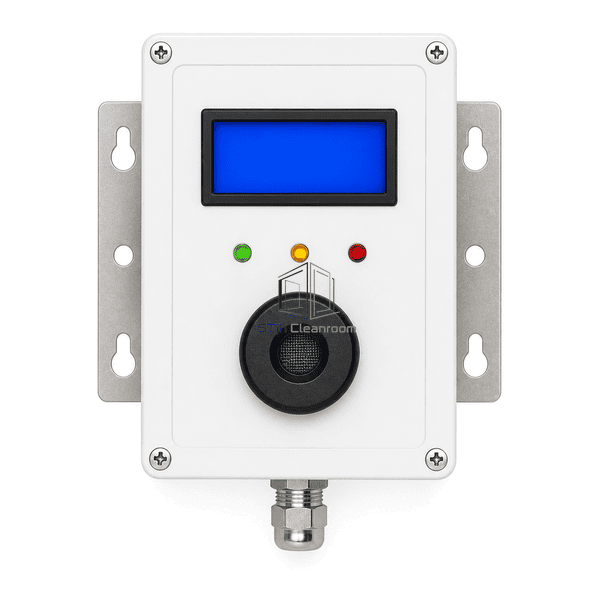

Continuous Oxygen Display
Low-Oxygen Alarm Stages
Local Beacon and Sounder
Ventilation Relay Output

Request a Quote Browse Products

Product Introduction

The oxygen deficiency monitor continuously measures ambient oxygen with a replaceable electrochemical or optical sensor and presents the value on a local display. Configurable low-level alarms operate relays, beacon and sounder outputs before conditions become severe. Remote heads can be positioned at the breathing zone or according to the release scenario while the display remains visible outside the room.

Key Features

Continuous oxygen indication gives personnel an immediate room-status check.

Two alarm stages support ventilation and evacuation actions.

Sensor and system faults are separated from gas alarms.

Remote outputs integrate with ventilation and access-control logic.

Customer Product Concerns

Inert gases are odorless and can displace oxygen without visible warning, especially in enclosed utility spaces.

Personnel cannot sense oxygen depletion directly.A fixed sensor continuously measures and displays oxygen concentration.

A single high alarm provides little time for corrective action.Staged low alarms can start ventilation before evacuation level.

Sensor end-of-life can mimic a safe reading.Fault monitoring and scheduled replacement maintain measurement integrity.

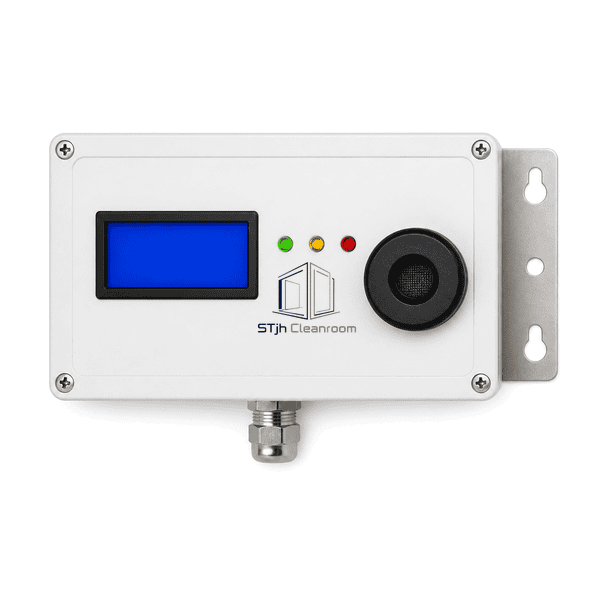

The safest display location may differ from the sensing point.Remote-sensor configurations separate the room sensor from the entrance display.

Typical Applications

Nitrogen utility roomsCryogenic storage areasInert-gas process suitesLaboratory gas storage

Technical Parameters

Typical monitor construction is listed below; sensor placement and alarm setpoints follow the inert-gas risk assessment.

Core Material	Powder-coated steel or polymer enclosure with oxygen sensor electronics
Panel Thickness	1.0-1.5 mm metal enclosure
Effective Width	150-300 mm
Maximum Length	Up to 450 mm enclosure height
Steel Facing Thickness	1.0-1.5 mm steel enclosure panels
Core Density	7850 kg/m³ for steel enclosure parts
Thermal Conductivity	45-60 W/(m·K) for steel enclosure components
Surface Finish	Smooth light-gray coating with high-visibility alarm indicators

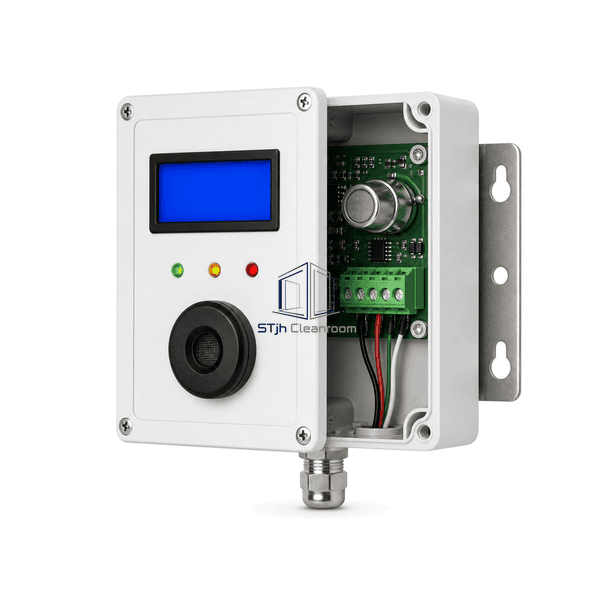

Joint Type	Gasketed enclosure with pluggable sensor, relay and power terminals
Customization	Available based on the intended application and operating environment.

Available Options

Integral or remote sensorDual alarm relaysBeacon and sounderAnalog or network output
