Industry-Specific Cleanroom Equipment
Operating Room Surgical Scrub Sink
A wall-mounted dual-station surgical scrub sink with two deep sloping basins, touch-free water activation and knee-operated manual backup for controlled preoperative hand washing.
- Two Independent Wash Stations
- Infrared Water Activation
- Knee-Control Manual Backup
- Deep Fully Draining Basins
Product Introduction

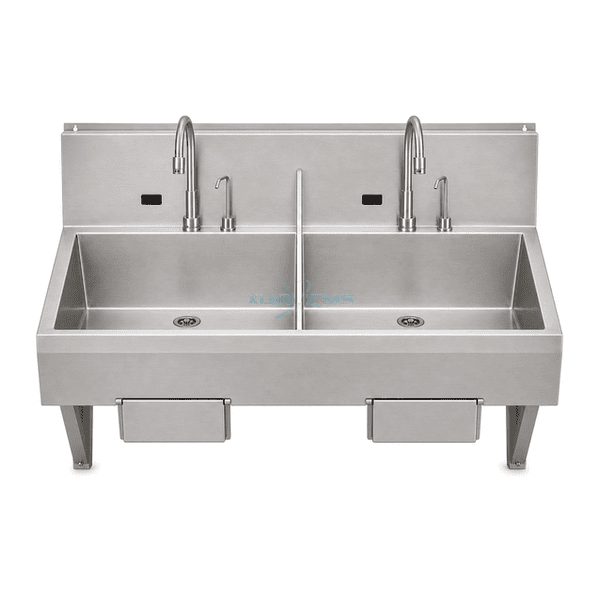

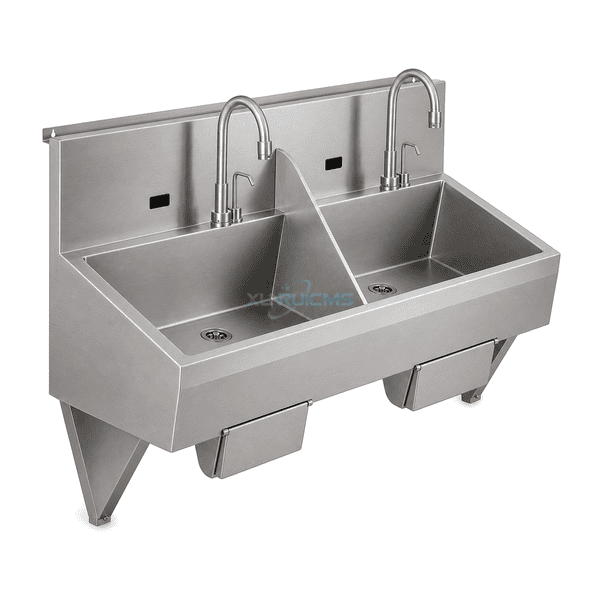

The operating room surgical scrub sink is fabricated as one welded 304 stainless steel assembly with two separate deep basins, a tall integral backsplash and a centered splash divider. Each station has its own high-mounted gooseneck outlet, infrared sensor, stainless soap spout, drain and front knee-control panel. Smooth radiused basin transitions direct water toward the outlets, while the continuous rear mounting rail and paired triangular supports transfer the suspended load to a prepared wall structure. The satin No. 4 finish provides a cleanable clinical surface without decorative coatings.
Key Features
Black infrared sensor windows initiate water flow without hand contact at either station.
Hinged knee panels provide a mechanical backup path and open for access to the concealed valve linkage.

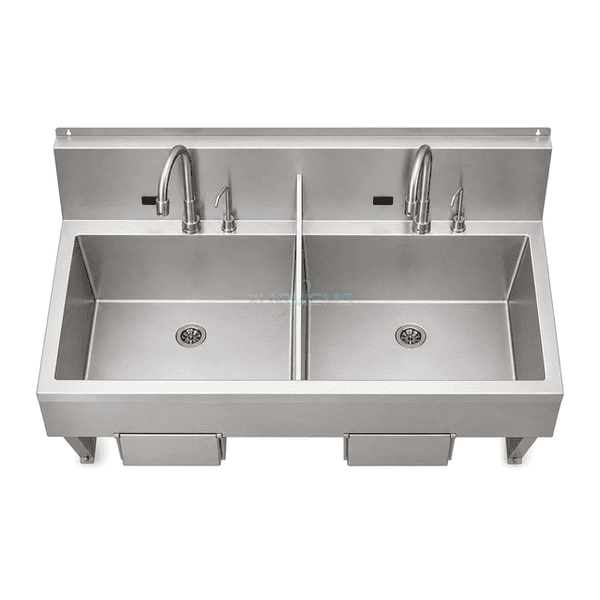

A tall backsplash and center divider contain splash while the sloped basin floors reduce residual pooling.
Customer Product Concerns
A surgical wash station must support simultaneous hands-free use while controlling splash, draining promptly and keeping service components accessible outside the basin.
Hand-operated taps can recontaminate scrubbed hands at the end of the washing sequence.Each station uses an infrared water sensor, with a broad knee panel available for contact-free manual actuation.
A shallow or flat-bottomed sink can splash outward and retain water between users.Deep separate bowls, high rear shielding and sloped floors direct runoff toward one drain per station.
Two users working side by side can transfer spray into the adjacent wash position.The fixed center divider separates the two basin openings without obstructing either gooseneck outlet.

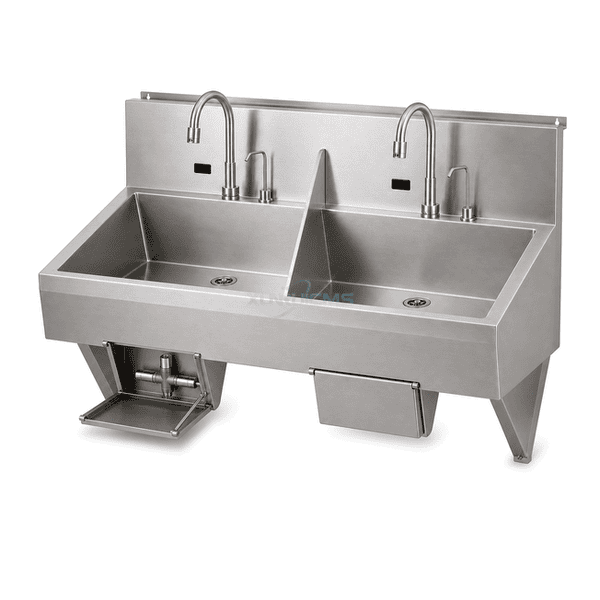

Concealed mixing and control hardware can be difficult to inspect after wall mounting.Hinged front knee panels expose the compact station valve and linkage while the basin remains fixed to its supports.
Typical Applications
Operating theatre scrub alcovesSurgical-suite clean corridorsCentral sterile service preparation zonesHospital procedure-room wash areas
Technical Parameters
Typical configurable construction values for a wall-mounted dual-station stainless surgical scrub sink are listed below.
| Core Material | Welded AISI 304 stainless steel basin, backsplash, divider, apron and wall-support structure |
|---|---|
| Panel Thickness | 250-320 mm formed basin and front-apron section |
| Effective Width | 1450-1626 mm usable dual-station sink width |
| Maximum Length | Up to 1800 mm configurable overall sink length |
| Steel Facing Thickness | 1.2-1.5 mm formed AISI 304 stainless sheet |
| Core Density | 7900 kg/m³ for AISI 304 stainless steel |
| Thermal Conductivity | 15 W/(m·K) for AISI 304 stainless steel at room temperature |
| Surface Finish | Neutral satin No. 4 brushed stainless steel with smooth welded and radiused basin transitions |
| Joint Type | Continuously welded basin and backsplash with a rear Z mounting rail, two triangular supports and serviceable hinged knee panels |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single-, dual- or triple-station configurationsInfrared-only or infrared-with-knee-backup water controlLaminar-flow or rose-spray outlet headsDigital scrub timers and alternative soap-delivery arrangements
Planning a Operating Room Surgical Scrub Sink specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
