Laminar Flow and Containment Equipment
Modular Restricted Access Barrier System
A configurable barrier platform assembled from standard glazed, glove-access and service modules to fit new or existing aseptic equipment.
- Configurable Modular Bays
- New or Retrofit Installation
- Interchangeable Glove Panels
- Custom Machine Interfaces
Product Introduction
This modular RABS platform focuses on adaptable enclosure construction rather than one fixed open or closed airflow arrangement. Standard stainless frame bays accept clear fixed panels, glove doors, service doors, return sections and equipment cut-outs. The layout can be configured as an open or more enclosed barrier according to the process and cleanroom. Replaceable modules make later changes possible without rebuilding the entire enclosure, while the final airflow and access strategy remain specific to the installation.
Key Features

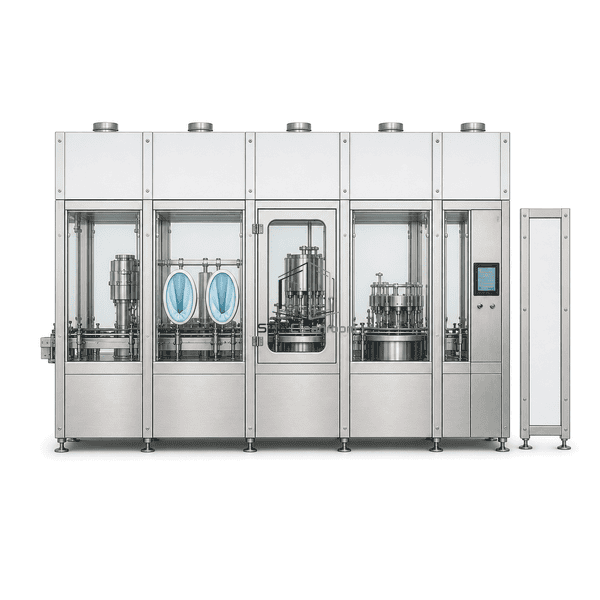

Fixed glazing, glove panels and service doors can exchange positions within the grid.

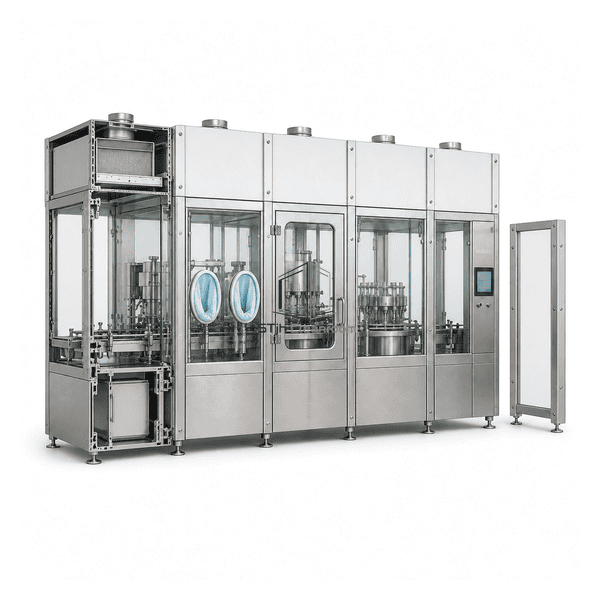

Custom lower interfaces connect to irregular machine frames and conveyors.
Sectioned construction supports phased installation around existing equipment.
The platform can support open or closed airflow arrangements selected for the process.
Customer Product Concerns
Existing process lines rarely match a fixed barrier geometry, and intervention points may change as equipment is upgraded.
A one-piece barrier cannot enter the existing production room.Sectioned modules assemble around the installed equipment.
Glove ports do not align after a machine change.Interchangeable glove-panel bays can be relocated within the modular grid.
Irregular conveyor penetrations remain open.Custom lower skirts and flexible seals close each equipment interface.

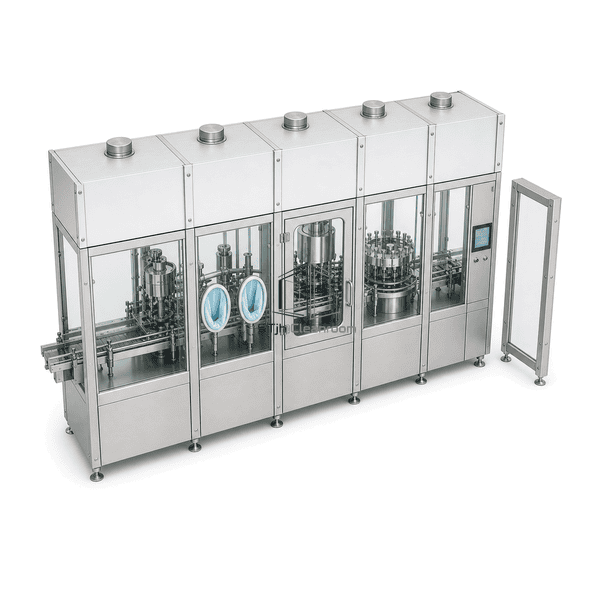

Future expansion requires replacing the full enclosure.Additional frame bays extend the barrier while existing modules are retained.
Typical Applications
RABS retrofit projectsPilot filling linesFlexible aseptic production cellsBarrier upgrades around legacy equipment
Technical Parameters
Typical configurable construction ranges for a modular restricted access barrier system are listed below.
| Core Material | SUS304 or SUS316L modular frame with laminated safety-glass panels and interchangeable CSM glove modules |
|---|---|
| Panel Thickness | 30-80 mm modular barrier and service sections |
| Effective Width | 1200-5000 mm protected equipment width |
| Maximum Length | Up to 30000 mm expandable barrier length |
| Steel Facing Thickness | 1.2-2.0 mm stainless doors, skirts and utility panels |
| Core Density | Approximately 2500 kg/m³ for laminated safety-glass panels |
| Thermal Conductivity | 0.8-1.0 W/(m·K) for laminated safety glass |
| Surface Finish | Fine-brushed stainless modular frame with flush clear glazing |

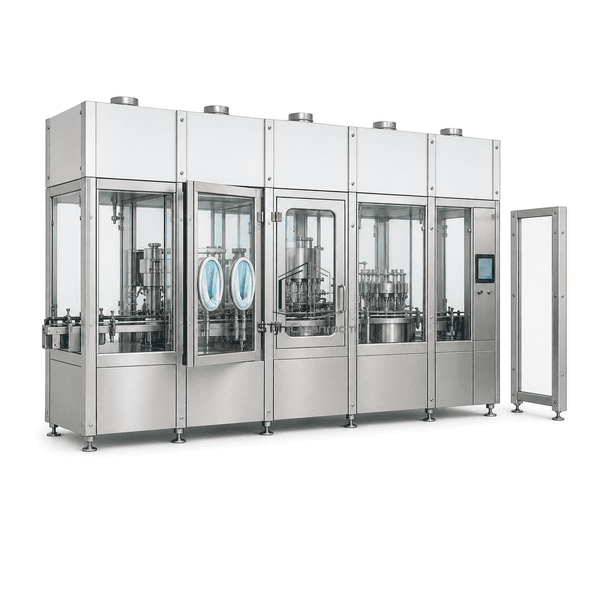

| Joint Type | Bolted gasketed frame bays with replaceable glove, door, glazing and equipment-interface modules |
| Customization | Available based on the intended application and operating environment. |
Available Options
Open or closed airflow arrangementFixed, glove or service-door modulesStainless machine skirtsIntegrated lighting and monitoring rails
Planning a Modular Restricted Access Barrier System specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
