Personnel and Material Decontamination Equipment
Low-Profile Adhesive Sole Cleaner with Remote Extraction Cabinet
A low SUS304 adhesive-mat tray paired with an independent suction-and-filtration cabinet for dry contamination-control entry areas.
- Low-profile SUS304 mat tray
- Replaceable adhesive collection media
- Separate filtered extraction cabinet
- Remote service access
Product Introduction

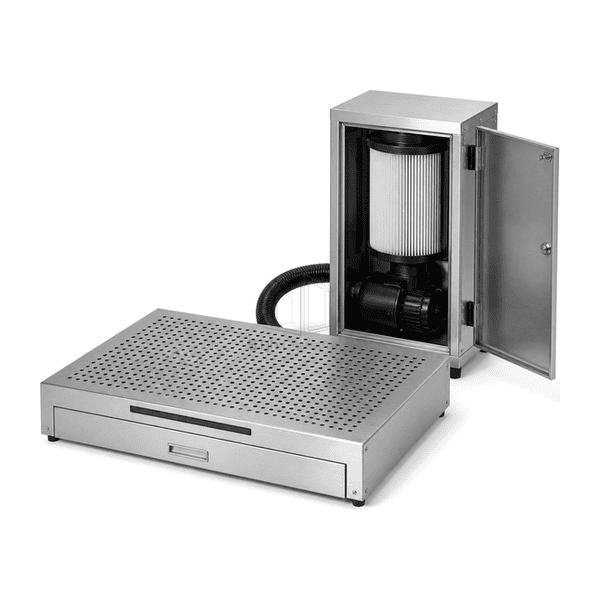

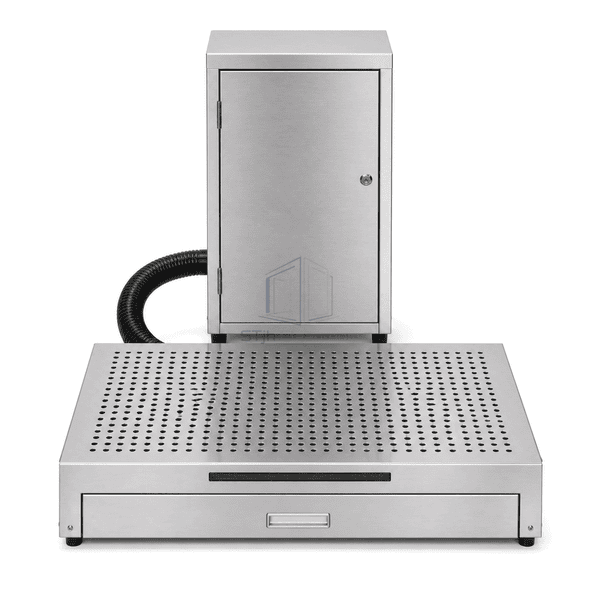

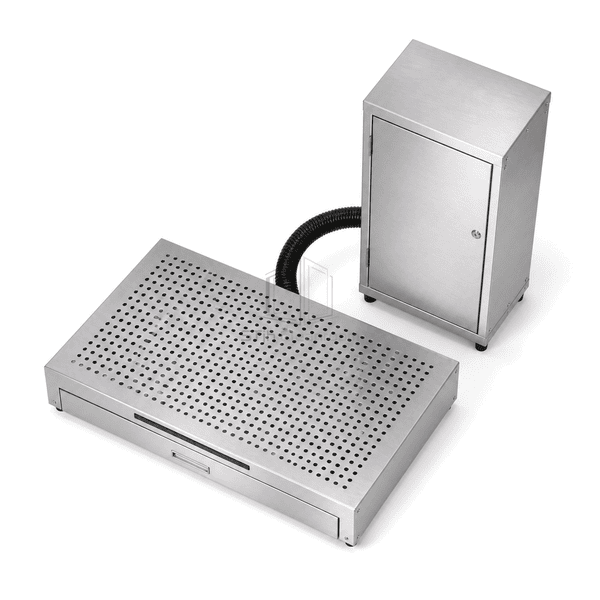

This two-part entry system keeps the walking surface and extraction service equipment separate. The low-profile SUS304 tray holds replaceable adhesive collection media at the approach point, while an independently located suction-and-filtration cabinet manages extracted dust from the designated collection zone. The layout suits dry controlled entries where the service cabinet should not occupy the personnel walking surface.
Key Features

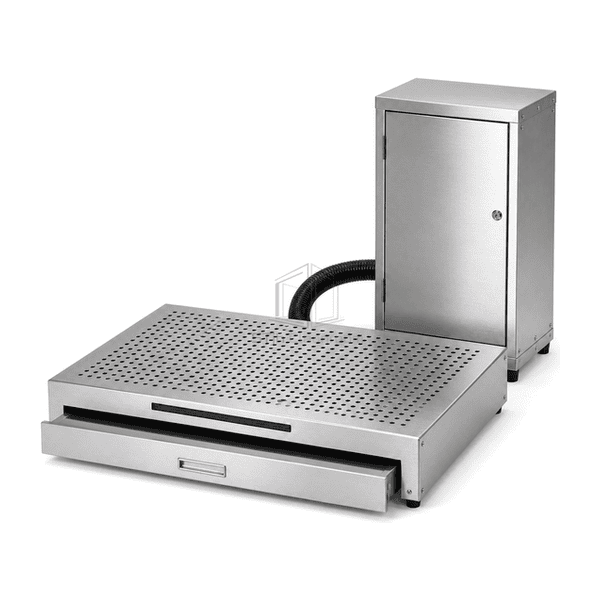

Replaceable adhesive sheets or film can be changed without moving the extraction cabinet.
The separate cabinet allows filter service away from the entry mat position.
A low threshold profile reduces the step-up at the personnel route.
The mat tray and cabinet can be positioned to suit the available entrance geometry.
Customer Product Concerns
A dry entry may need adhesive collection at floor level while placing suction and filter servicing away from the walking line.
A raised dust-control unit disrupts a narrow personnel route.The SUS304 mat tray uses a low-profile format at the approach point.
Filter servicing beside the entry surface creates congestion.The suction-and-filtration cabinet is independent from the adhesive mat tray.
Adhesive media must be renewed without dismantling the complete entry system.The mat tray accepts replaceable adhesive media as a separate service item.
Dry areas cannot use a wet footwear-cleaning process.The system relies on dry adhesive collection and a separate extraction arrangement.
Typical Applications
Electronics cleanroom approachesDry pharmaceutical support entriesPrecision optics changing areasBattery dry-room access zonesLaboratory personnel routes
Technical Parameters
The tray footprint, adhesive-media format and remote cabinet placement can be selected around the dry entry layout.
| Core Material | SUS304 adhesive mat tray with separate SUS304 filtered extraction cabinet |
|---|---|
| Panel Thickness | 1.0–1.5 mm stainless steel tray and cabinet panels |
| Effective Width | 450–800 mm active adhesive mat width |
| Maximum Length | 600–1200 mm low-profile mat length |
| Steel Facing Thickness | 1.0–1.5 mm SUS304 |
| Core Density | 900–950 kg/m³ for adhesive-film polymer backing |
| Thermal Conductivity | 0.35–0.45 W/(m·K) for adhesive-film polymer backing |
| Surface Finish | Brushed SUS304 tray and cabinet with replaceable adhesive collection media |
| Joint Type | Removable adhesive-media tray with independently ducted filter cabinet |
| Customization | Available based on the intended application and operating environment. |
Available Options
Adhesive sheet or film formatSingle or dual mat-tray layoutExtraction cabinet positionPre-filter and final-filter service stages
Planning a Low-Profile Adhesive Sole Cleaner with Remote Extraction Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
