Cleanroom HVAC and Air Handling Equipment
Hot-Water Reheat Coil
A shallow one- or two-row hydronic coil that restores neutral supply-air temperature after deep cooling and dehumidification.
- Post-Dehumidification Reheat
- Shallow Low-Pressure-Drop Face
- Fast Valve Response
- Compact AHU Integration
Product Introduction

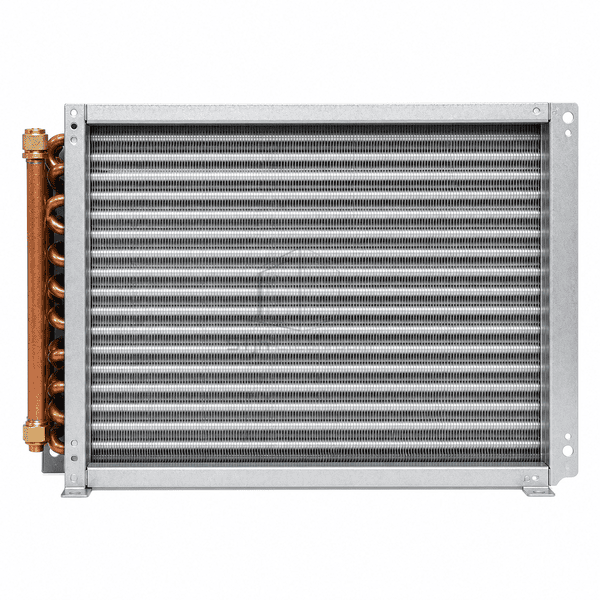

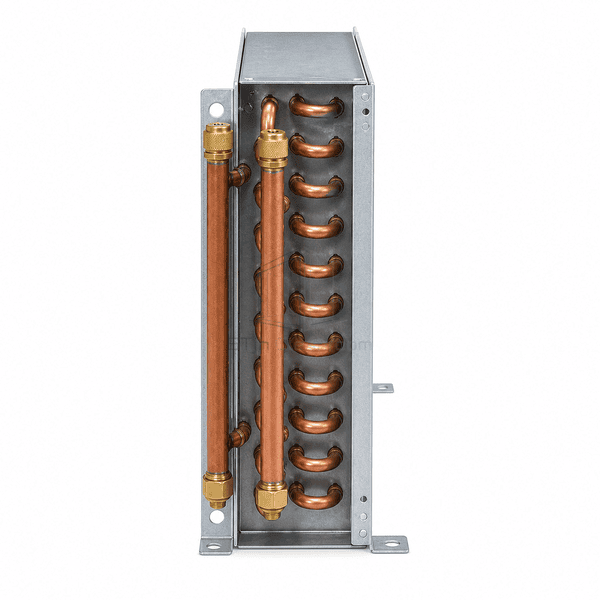

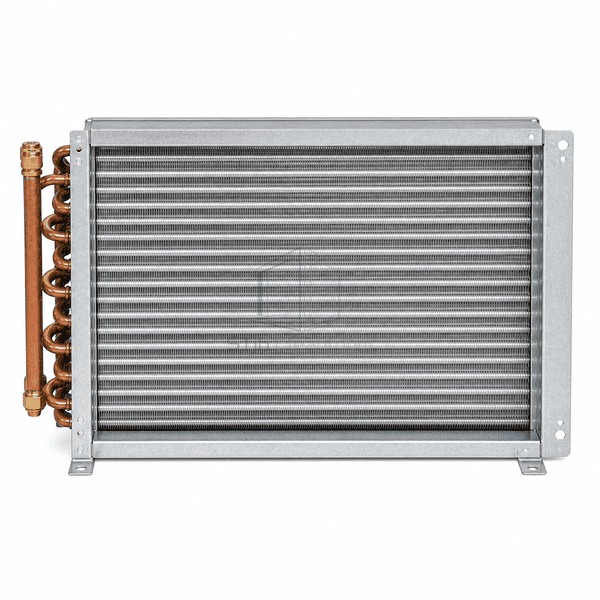

The reheat coil is positioned downstream of a cooling coil so it can add sensible heat without increasing air moisture. Its shallow copper-tube and aluminum-fin construction minimizes air pressure drop while providing enough surface area for precise leaving-temperature control. Low water volume and short circuits respond quickly to a modulating valve, making the coil suitable for tight cleanroom temperature and humidity sequences.
Key Features
Small internal water volume responds rapidly when the modulating valve changes position.
Accessible vents and drains prevent air binding during low-flow operation.
Compact casing fits between cooling-coil, fan and final-filter sections in constrained AHUs.
Customer Product Concerns
Reheat must correct overcooled supply air precisely without adding excessive pressure drop or fighting the cooling sequence.
Air leaves the dehumidifying coil too cold for the occupied zone.A downstream hydronic coil adds only sensible heat and preserves the achieved moisture content.
An oversized multi-row coil causes sluggish temperature control.A shallow low-volume circuit responds quickly to modulating water flow.
Excessive fin resistance increases cleanroom fan power.A one- or two-row face and appropriate fin pitch minimize air-side pressure drop.
Simultaneous cooling and reheat waste plant energy.Heat-recovery or low-temperature return water can supply the reheat duty when available.
Typical Applications
Cleanroom temperature-humidity decouplingLaboratory dehumidification reheatHospital operating-room AHUsPharmaceutical make-up air unitsNeutral-temperature supply-air systems
Technical Parameters
Typical physical ranges for a compact AHU hot-water reheat coil are summarized below.
| Core Material | Copper tubes with aluminum fins and compact copper headers |
|---|---|
| Panel Thickness | 1.2-1.8 mm galvanized steel casing |
| Effective Width | 250-2200 mm active fin face width |
| Maximum Length | Up to 3200 mm overall casing length |
| Steel Facing Thickness | 1.2-1.8 mm galvanized or stainless frame |
| Core Density | Approximately 2730 kg/m³ for the thin 3003 aluminum fin stock in the shallow reheat section |
| Thermal Conductivity | Approximately 193 W/(m·K) for the 3003 aluminum reheat fins at room temperature |
| Surface Finish | Natural or coated aluminum fins with bright galvanized casing |

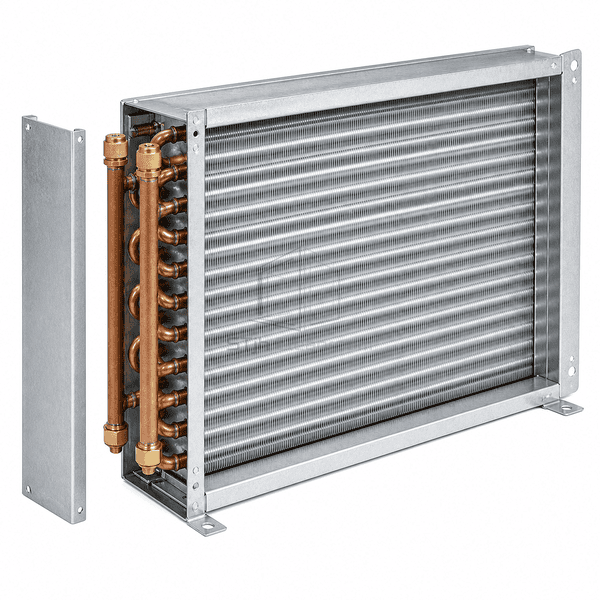

| Joint Type | Brazed copper tube/header joints inside a shallow flanged casing |
| Customization | Available based on the intended application and operating environment. |
Available Options
One- or two-row circuitHeat-recovery, boiler-water or heat-pump-water serviceDifferent fin pitch and protective coatingsStainless casing with vent, drain and sensor pocket
Planning a Hot-Water Reheat Coil specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
