Laminar Flow and Containment Equipment
Horizontal Laminar Flow Clean Bench
A rear-filtered workstation that sweeps clean air horizontally across non-hazardous products toward the open front without a top filter section over the work.
- Full-Height Rear Filter
- Forward Horizontal Airflow
- Open Front Access
- Low Overhead Profile
Product Introduction
A full-height rear filter forms the working back wall of this clean bench. Filtered air travels in a horizontal path across the stainless worktop and leaves through the open front, giving small parts and low-profile assemblies a direct first-air path. The open ceiling improves access to microscopes and fixtures, while the deeper cabinet body houses the rear fan and plenum. Because airflow moves toward the operator, the bench is reserved for non-hazardous work where product cleanliness is the objective.
Key Features

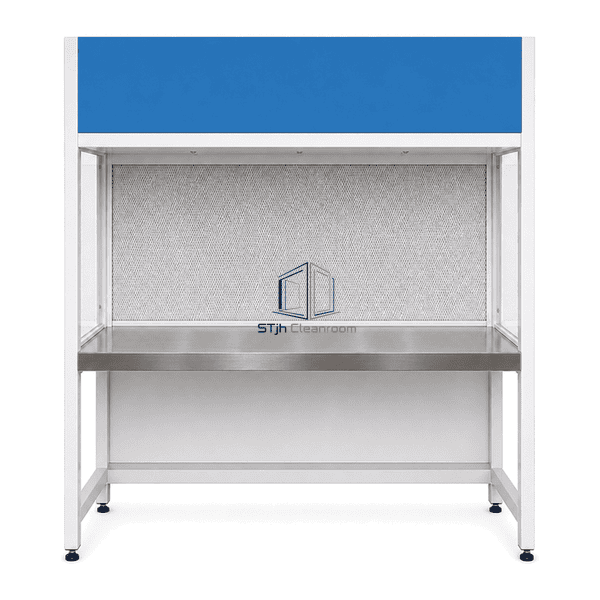

An open upper work zone accommodates tall optical stands and assembly fixtures.

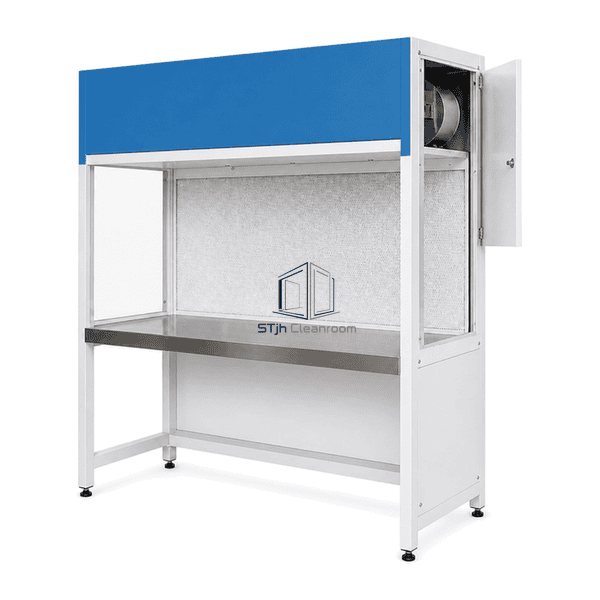

A rigid rear plenum keeps the filter face evenly supplied across its height.
Rounded worktop edges reduce turbulence at the front discharge boundary.
Front-access controls and a visible pressure indicator simplify daily checks.
Customer Product Concerns
Horizontal flow is effective only when equipment placement preserves the direct air path from the rear filter to the open front.

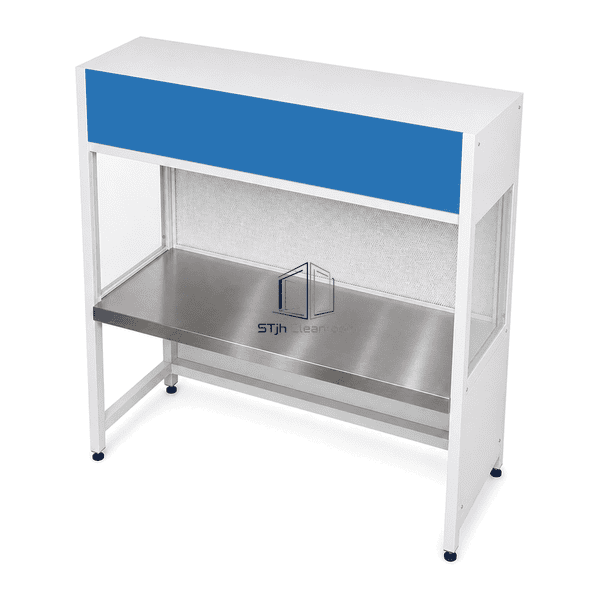

Large objects block clean air to items positioned in front of them.The deep worktop allows fixtures to be arranged in a single layer close to the rear filter.
A top-mounted filter interferes with tall optical equipment.The rear fan-filter arrangement leaves the upper work zone unobstructed.
Sharp front edges disturb the outgoing air sheet.A radiused stainless worktop lip supports a smoother discharge path.
Hazardous samples could be directed toward the user.Clear use labeling restricts the bench to non-hazardous product-protection tasks.
Typical Applications
Electronics assemblyOptical alignmentNon-hazardous sample preparationParticle-sensitive component packaging
Technical Parameters
Typical configurable construction ranges for a horizontal laminar flow clean bench are listed below.
| Core Material | SUS304 worktop with a powder-coated steel rear plenum and mineral-wool acoustic infill |
|---|---|
| Panel Thickness | 30-50 mm rear and side plenum sections |
| Effective Width | 900-1800 mm clear working width |
| Maximum Length | Up to 1200 mm overall cabinet depth |
| Steel Facing Thickness | 0.9-1.2 mm powder-coated steel; 1.0-1.5 mm SUS304 worktop |
| Core Density | 80-120 kg/m³ acoustic mineral-wool infill |
| Thermal Conductivity | 0.035-0.045 W/(m·K) for the acoustic infill |
| Surface Finish | White powder-coated exterior with brushed SUS304 horizontal worktop |

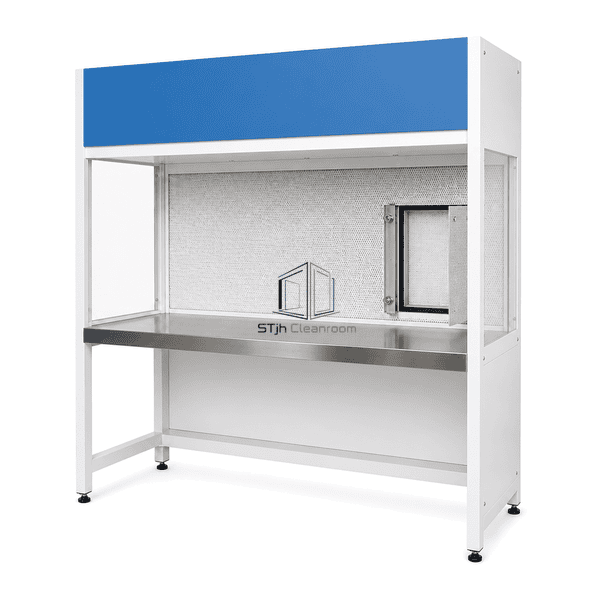

| Joint Type | Welded rear plenum with a gasketed full-height filter frame and radiused worktop edge |
| Customization | Available based on the intended application and operating environment. |
Available Options
HEPA or ULPA filter wallTabletop or freestanding baseStatic-dissipative work surfaceTask lighting and service outlets
Planning a Horizontal Laminar Flow Clean Bench specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
