Cleanroom Flooring Systems

Homogeneous PVC Sheet Flooring

A compact single-layer PVC floor covering whose color and pattern extend through the full 2 mm thickness for durable, repairable clean-area surfaces.

Full-Thickness Wear Layer
Heat-Welded Seams
Compact 2 mm Construction
Restorable PUR Surface

Request a Quote Browse Products

Product Introduction

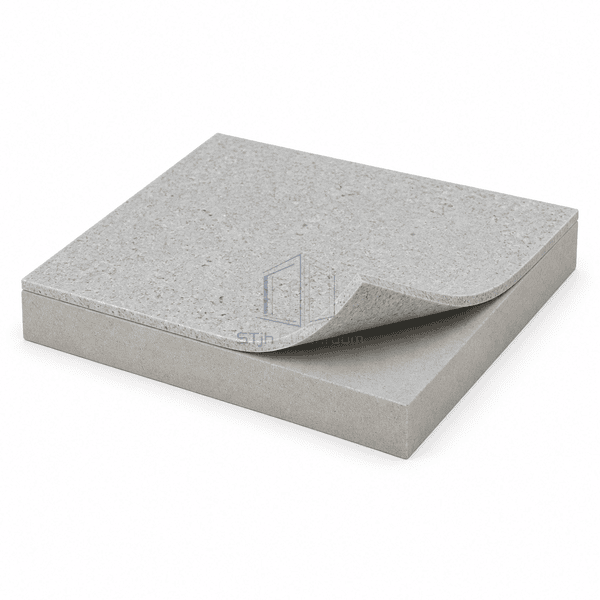

Homogeneous PVC sheet flooring is manufactured as one compact wear layer rather than a printed film over a backing. The through-pattern construction helps small abrasions remain less conspicuous and permits compatible surface-restoration methods during the service life. Two-metre-wide sheets reduce the number of field seams, and matching welding rod closes sheet junctions after adhesive installation. A factory PUR treatment supports routine machine cleaning without adding a separate site-applied coating.

Key Features

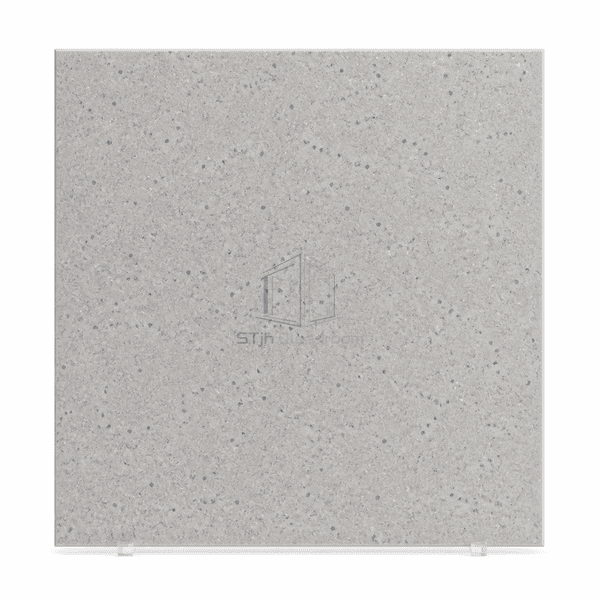

Color and pattern continue through the entire wear layer instead of relying on a thin decorative print film.

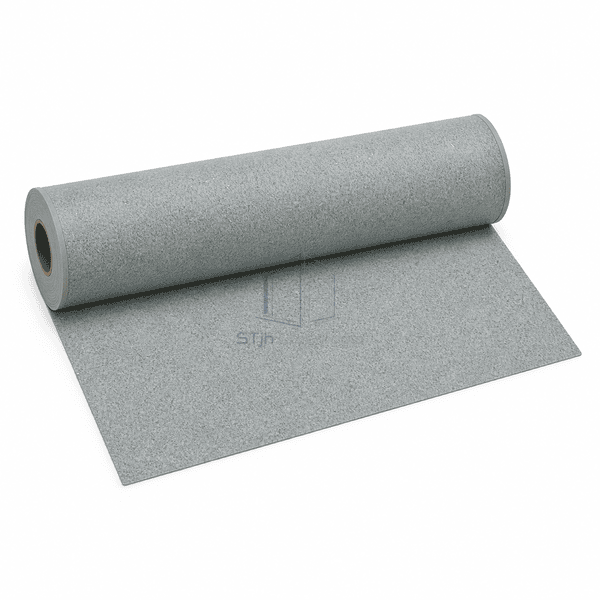

Wide rolls cover corridors and rooms with fewer joints than modular tile layouts.

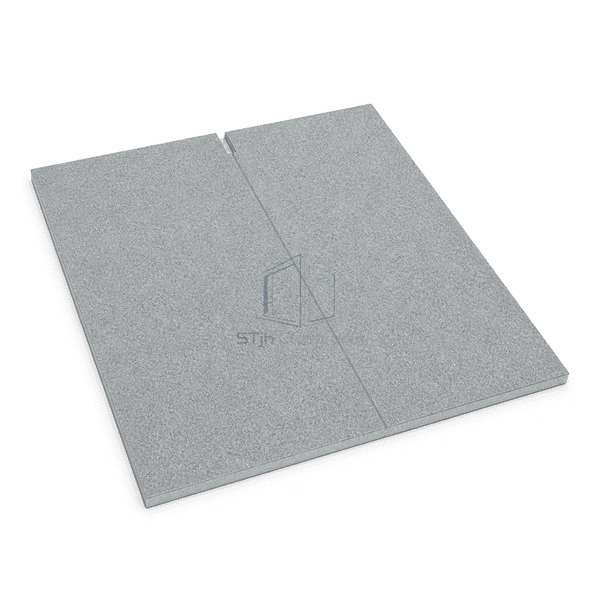

Hot-welded seams create a closed junction that resists routine wet cleaning when correctly installed.

A compact PUR-treated surface improves stain release and can be mechanically refreshed with compatible maintenance methods.

Customer Product Concerns

A resilient clean-area floor must remain presentable under rolling traffic while limiting joints and avoiding a fragile decorative layer.

Surface scratches expose a visibly different backing layer on conventional printed flooring.The homogeneous construction carries the visual pattern through the full 2 mm gauge.

Numerous tile joints lengthen cleaning time and increase seam-maintenance points.Two-metre-wide sheets reduce joint count and accept color-matched heat welding.

Repeated polishing adds chemicals and labor to controlled-area maintenance.The factory PUR treatment supports routine cleaning and compatible dry-buff restoration.

Typical Applications

Cleanroom support corridorsHealthcare preparation roomsLaboratory circulation areasGowning and changing roomsControlled manufacturing support spaces

Technical Parameters

Typical dimensions and material values for commercial Type I homogeneous PVC sheet flooring are shown below.

Core Material	Single-layer compact PVC compound with mineral filler, color pigments and plasticizer
Panel Thickness	2.0 mm total homogeneous wear thickness
Effective Width	2000 mm standard sheet width
Maximum Length	Up to 23000 mm standard roll length
Steel Facing Thickness	0 mm; no steel facing is used in the PVC sheet
Core Density	Approximately 1375–1500 kg/m³ based on common 2.0 mm commercial sheet weights
Thermal Conductivity	Approximately 0.20–0.25 W/(m·K) for compact homogeneous PVC
Surface Finish	Non-directional matte pattern with factory-applied PUR treatment
Joint Type	Fully adhered butt seams routed and closed with color-matched hot-welding rod
Customization	Available based on the intended application and operating environment.

Available Options

Non-directional neutral and zoning colorsMatching hot-welding rodSite-formed coved skirting with cove formerSheet or 610 mm modular tile format

Planning a Homogeneous PVC Sheet Flooring specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.

Talk to Our Team
