Cleanroom HVAC and Air Handling Equipment
High-Pressure Mist Humidifier
A high-capacity adiabatic system that pressurizes treated water and atomizes it through precision anti-drip nozzles into an AHU or large controlled space.
- Fine High-Pressure Atomization
- Low-Energy Adiabatic Operation
- Anti-Drip Nozzle Manifold
- Integrated Water Treatment
Product Introduction

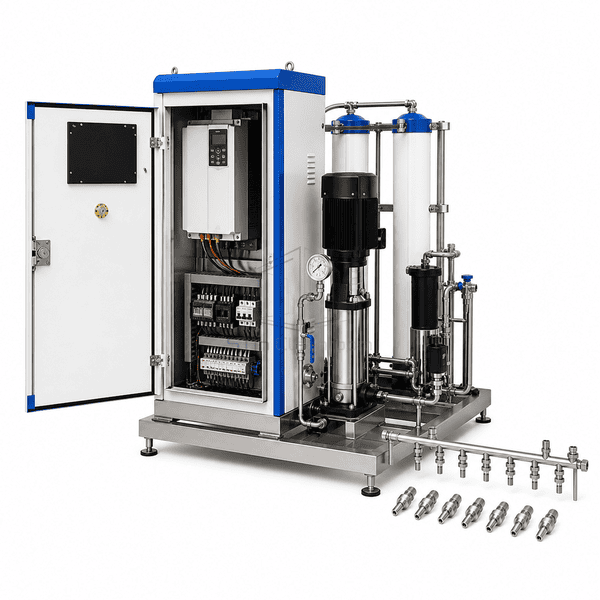

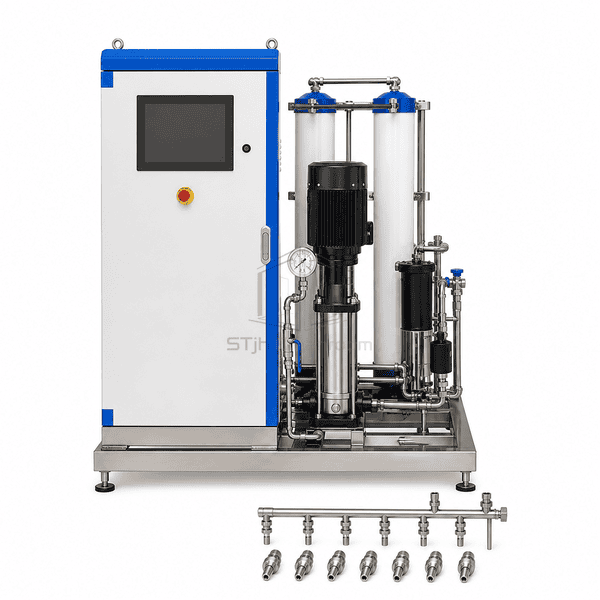

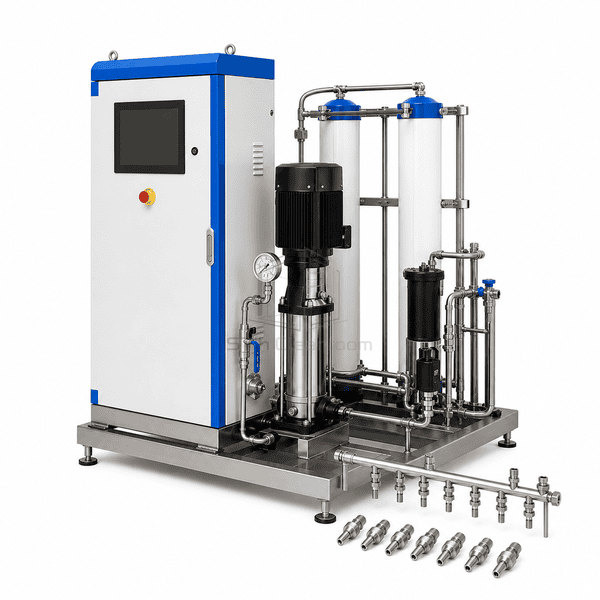

A stainless multistage pump raises treated water to high pressure and supplies a manifold of precision nozzles. Each orifice creates a fine mist that evaporates into the airstream, adding moisture while absorbing sensible heat. Filtration and reverse-osmosis pretreatment limit nozzle deposits, and staged nozzle banks or variable pump control match output to demand.
Key Features
Stainless pump, tubing and manifold resist continuous purified-water service.

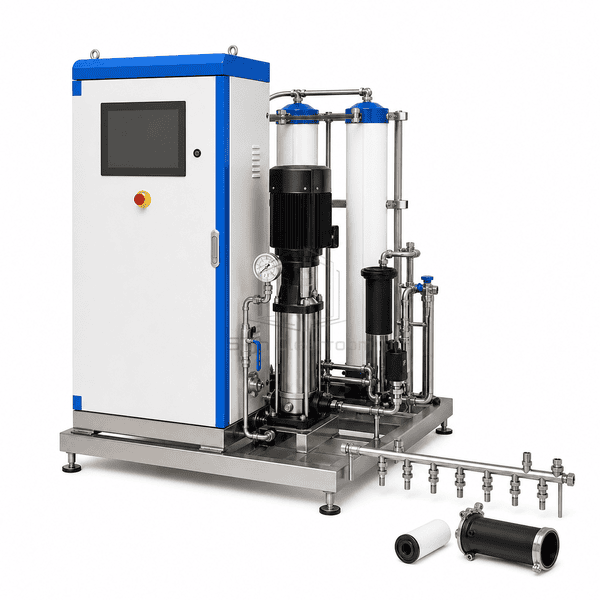

Anti-drip nozzles close positively when pressure falls and reduce post-cycle wetting.
Integrated filtration and treatment protect small orifices from scale and suspended particles.
Customer Product Concerns
High-pressure systems require fine atomization, clean water and controlled staging so droplets evaporate before reaching surfaces.
Nozzle deposits change spray pattern and create large droplets.Fine filtration and low-mineral treated water protect the precision orifices.
Nozzles drip after the pump stops.Spring-loaded anti-drip valves close each nozzle below operating pressure.
Short duct length does not allow full mist absorption.Nozzle placement, droplet size and staged capacity are matched to airflow and available distance.
A fixed-output pump causes repeated on-off cycling.Variable-speed pressure control or staged nozzle zones follow the actual humidity demand.
Typical Applications
Large pharmaceutical cleanroomsElectronics manufacturing hallsData-center air handlersPrinting and paper productionIndustrial evaporative cooling and humidification
Technical Parameters
Representative construction ranges for a packaged high-pressure mist station are listed below.
| Core Material | AISI 304 or 316 stainless pump, manifold and tubing with ceramic or stainless nozzles |
|---|---|
| Panel Thickness | 1.2-2.0 mm powder-coated control-cabinet panels |
| Effective Width | 600-1800 mm packaged pump-station width |
| Maximum Length | Up to 5000 mm modular nozzle-manifold section length |
| Steel Facing Thickness | 1.2-2.0 mm cabinet and stainless base sheet |
| Core Density | Approximately 7900-8000 kg/m³ for stainless pump, manifold and tubing material |
| Thermal Conductivity | Approximately 14-16 W/(m·K) for stainless water-contact parts |
| Surface Finish | White-blue powder coating with passivated stainless pump and tubing |
| Joint Type | Compression-connected high-pressure tubing with threaded anti-drip nozzles and bolted skid |
| Customization | Available based on the intended application and operating environment. |
Available Options
In-duct or direct-room nozzle arrangementIntegrated reverse-osmosis and ultraviolet treatmentVariable-speed pump or staged solenoid zonesStainless droplet separator and water-quality monitoring
Planning a High-Pressure Mist Humidifier specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
