Foot-Operated Cleanroom Door Switch

A low-mounted recessed toe switch that sends an opening request without requiring users to touch the door or wall controls with their hands.

Hands Remain Free
Recessed Toe Activation
Stainless Cleanable Face
Protected Sensor Module

Request a Quote Browse Products

Product Introduction

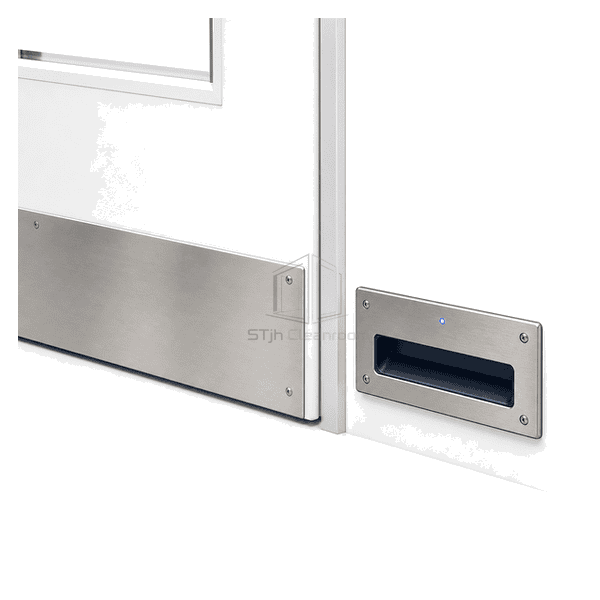

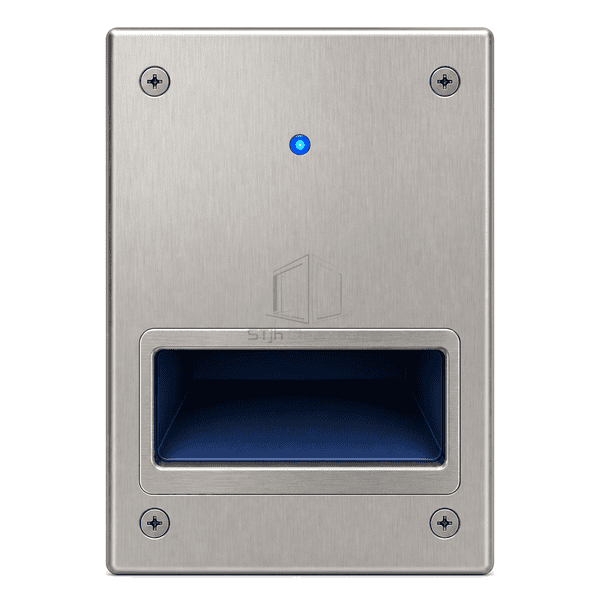

The foot-operated cleanroom door switch places a recessed activation tunnel at the lower wall or door jamb. A user inserts a shoe toe into the protected zone, where an optical or low-force sensor operates a relay without an exposed floor pedal. The brushed stainless faceplate, sealed rear electronics box and clear status LED support frequent cleaning while keeping the activation point away from trolley impact paths.

Key Features

The recessed toe zone enables activation while both hands carry materials or remain gloved.

A flush stainless faceplate avoids the projecting hinge and spring of a conventional floor pedal.

The protected optical cavity limits accidental triggering from nearby foot traffic.

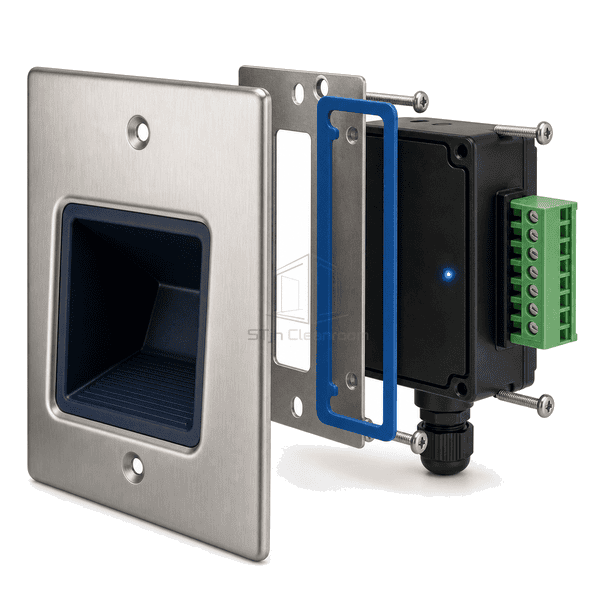

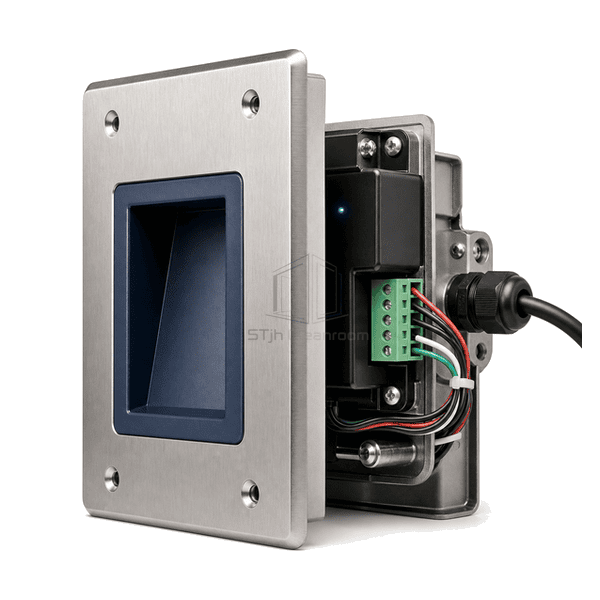

A sealed rear module and removable terminal block simplify service from the wall cavity.

Customer Product Concerns

A foot control must be accessible during material handling without becoming a projecting obstruction or a hard-to-clean floor fixture.

Operators carrying trays cannot reach a wall plate without shifting the load.The recessed toe switch provides a deliberate foot-operated request at the jamb.

Floor pedals trap residue around hinges and are vulnerable to trolley wheels.The mechanism mounts flush in the wall with no hardware on the walking surface.

A broad motion sensor opens the door for every person walking past.The protected recess requires a close, intentional toe insertion.

Typical Applications

Material-handling cleanroom doorsGowning-room exitsClinical sterile corridorsFood-processing hygiene entrances

Technical Parameters

Representative dimensions and materials for a recessed stainless foot-operated cleanroom switch are listed below.

Core Material	Optical activation sensor and FR-4 relay board in a sealed polymer rear enclosure
Panel Thickness	Approximately 45–55 mm recessed installation depth
Effective Width	Approximately 100–120 mm stainless faceplate width
Maximum Length	Approximately 160–200 mm faceplate height
Steel Facing Thickness	1.5–2.0 mm brushed 304 stainless-steel faceplate
Core Density	Approximately 1850 kg/m³ for the FR-4 control-board laminate
Thermal Conductivity	Approximately 0.25–0.35 W/(m·K) for the FR-4 electronic core
Surface Finish	Brushed 304 stainless steel with dark blue or black recessed activation insert
Joint Type	Flush recessed wall box with sealed faceplate gasket and removable terminal connection
Customization	Available based on the intended application and operating environment.

Available Options

Optical or low-force activationBlue status LEDDry-contact relay outputStainless wall-box and gasket kit
