Explosion-proof cleanroom LED luminaire with robust light-grey metal housing

Cleanroom Lighting and Electrical Equipment

Explosion-Proof Cleanroom Light

A heavy-duty sealed LED fixture that combines hazardous-area enclosure principles with a smooth exterior suitable for controlled-room cleaning.

Robust Metal Enclosure
Protected Cable Hub
Impact-Resistant Lens
Cleanable External Geometry

Request a Quote Browse Products

Product Introduction

The explosion-protected cleanroom luminaire encloses the LED driver and connection terminals within a robust cast or fabricated metal body. A thick glass or impact-resistant lens is retained by a bolted sealed frame, and incoming power passes through a matching threaded hub. The room-facing surfaces are simplified and coated or stainless so the fixture can be cleaned without exposing flame-path or electrical joints.

Key Features

A rigid metal body protects the driver and terminal chamber from impact and enclosure distortion.

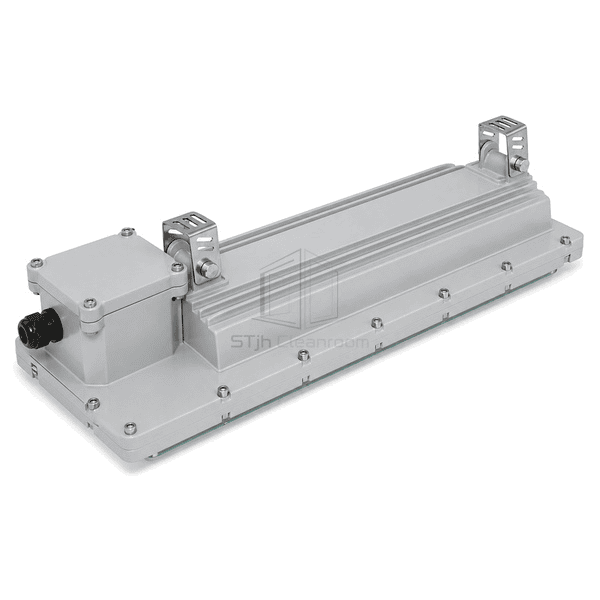

Threaded cable hubs maintain the intended protection at each wiring entry.

The retained lens frame resists accidental opening during cleaning.

External cooling fins are minimized or positioned away from the primary wipe face.

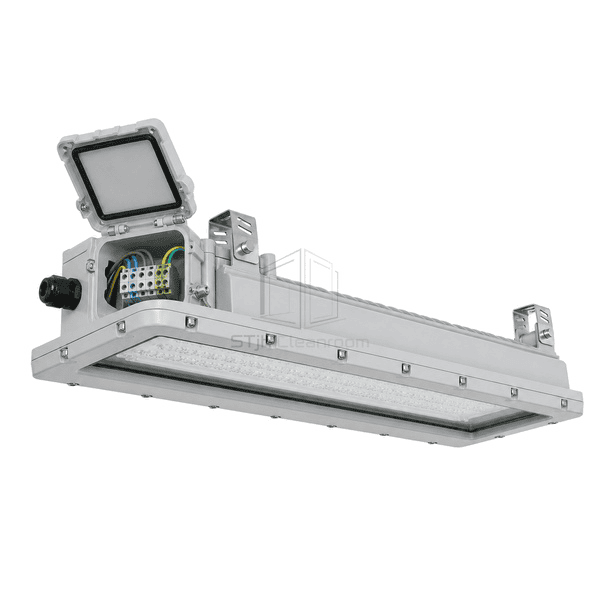

Color-coded terminals and a separate wiring chamber simplify controlled servicing.

Customer Product Concerns

Hazardous-area protection and cleanability can conflict when deep cooling fins, open glands or rough castings face the controlled room.

A general industrial Ex light has deep fins that are difficult to sanitize.The selected cleanroom configuration presents a simplified smooth room-facing enclosure.

An unmatched cable gland compromises the protected connection chamber.Threaded entries use glands selected for the cable and enclosure arrangement.

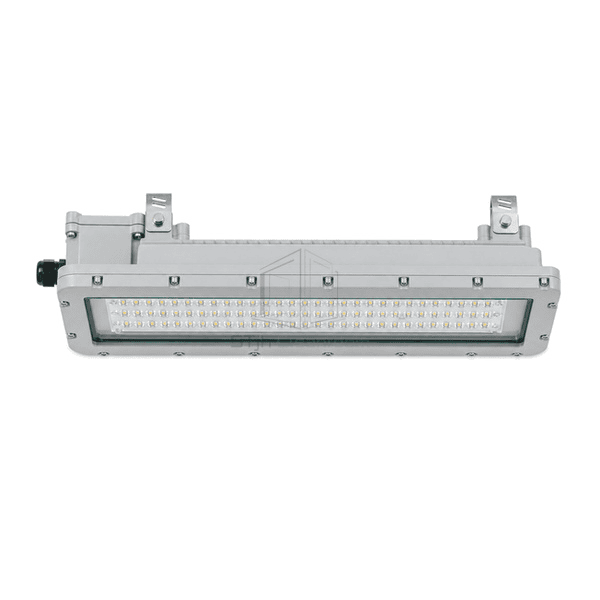

Thin lens frames distort when bolts are tightened unevenly.A rigid retained frame distributes clamping load around the thick optical window.

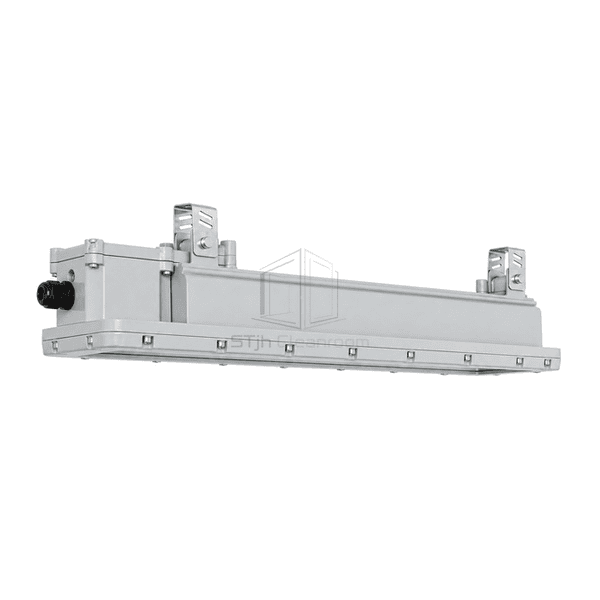

Maintenance can mix power wiring with the optical chamber.A segregated terminal compartment limits access to the connection area.

Typical Applications

Solvent-handling cleanroomsHazardous compounding suitesBattery manufacturing dry roomsFine-chemical controlled areas

Technical Parameters

Typical configurable construction ranges for an explosion-proof cleanroom LED luminaire are listed below.

Core Material	Copper-free aluminum or stainless enclosure with LED engine, protected driver chamber and tempered-glass lens
Panel Thickness	110-220 mm complete enclosure depth
Effective Width	180-420 mm exposed fixture width
Maximum Length	Up to 1400 mm complete luminaire length
Steel Facing Thickness	2.0-4.0 mm stainless fabricated body where selected
Core Density	Approximately 2700 kg/m³ for copper-free aluminum housing material
Thermal Conductivity	150-200 W/(m·K) for the aluminum enclosure
Surface Finish	White or light-grey chemical-resistant coating, or fine-brushed stainless exterior
Joint Type	Bolted gasketed lens frame with segregated terminal chamber and threaded protected cable hubs
Customization	Available based on the intended application and operating environment.

Available Options

Linear or compact low-bay formCast aluminum or stainless constructionCeiling or wall mounting bracketsEmergency battery enclosure

Planning a Explosion-Proof Cleanroom Light specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
