ESD Footwear Grounding System

The ESD Footwear Grounding System uses a matched pair of adjustable heel grounders and conductive ribbons to connect personnel to a compatible ESD floor.

Dual-foot configuration maintains contact as the operator walks.
Conductive ribbon links the wearer to the floor through the shoe.
Adjustable reusable cups suit common closed work footwear.

Request a Quote Browse Products

Product Introduction

Each unit combines a non-marking rubber heel cup, adjustable retention strap and bright conductive ribbon placed inside the shoe beneath the wearer. Used on both feet, the system preserves a grounding path when one foot lifts during walking. A tester verifies the complete person-footwear-floor path before entry.

Key Features

Pair configuration supports continuous walking contact.

Black conductive rubber sole contacts the ESD floor.

High-visibility ribbon helps supervisors confirm correct fitting.

Adjustable strap retains the cup around different shoe profiles.

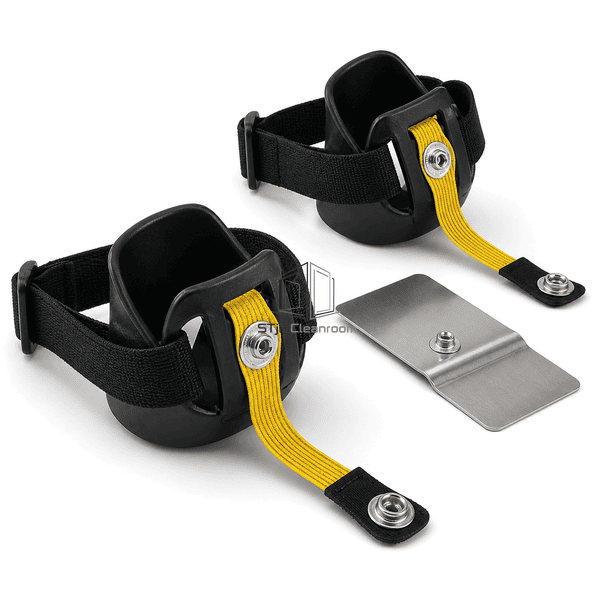

Snap-connected components permit inspection and replacement.

Compact design works with ordinary enclosed work shoes.

Customer Product Concerns

Reliable footwear grounding depends on two-foot use, ribbon contact with the wearer, secure fit and a compatible, verified ESD floor.

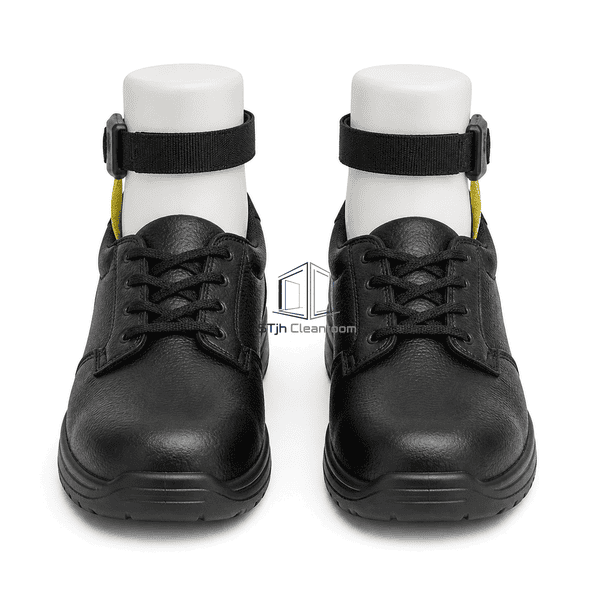

Ground is interrupted whenever one foot leaves the floor.A grounder on each foot maintains a second contact during normal walking.

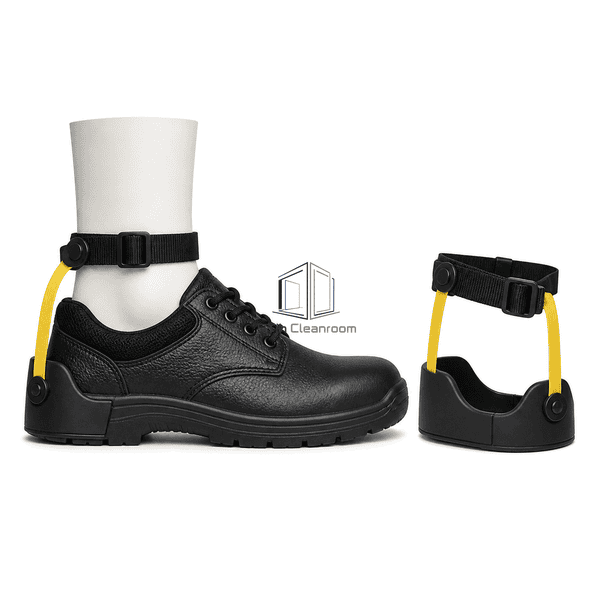

A loose cup slips off the heel.Adjustable ankle retention holds the molded cup against the shoe.

The ribbon is incorrectly left outside the shoe.Bright yellow material makes routing easy to see during entry checks.

Dark rubber marks clean flooring.Non-marking dissipative outer layers are available for light surfaces.

Visual inspection cannot prove electrical continuity.The complete worn system can be checked on a footwear or personnel tester.

Typical Applications

Electronics production and repair areas.Semiconductor assembly corridors.ESD-protected warehouses.Component inspection and packing rooms.Visitor grounding at controlled-area entrances.

Technical Parameters

The specifications represent a reusable dual-cup heel-grounder set; strap length, resistor arrangement and sole construction can be selected for the site program.

Core Material	Conductive and static-dissipative rubber with polyester conductive ribbon
Panel Thickness	1.5–3.0 mm rubber sole thickness
Effective Width	35–70 mm heel-contact width
Maximum Length	Up to 760 mm conductive ribbon length
Steel Facing Thickness	0.5 mm nominal stainless snap shell thickness
Core Density	1050–1250 kg/m³ rubber compound density
Thermal Conductivity	0.13–0.20 W/(m·K)
Surface Finish	Black non-marking molded rubber, black strap and yellow conductive ribbon
Joint Type	Adjustable heel cup with snap-connected ribbon and hook-and-loop strap
Customization	Available based on the intended application and operating environment.

Available Options

Single-cup or dual-cup profiles.One-megohm, two-megohm or resistor-free configurations.Yellow, blue or black straps.Hook-and-loop, buckle or quick-release closure.Disposable visitor grounding strips.Compatible entrance tester and test plate.
