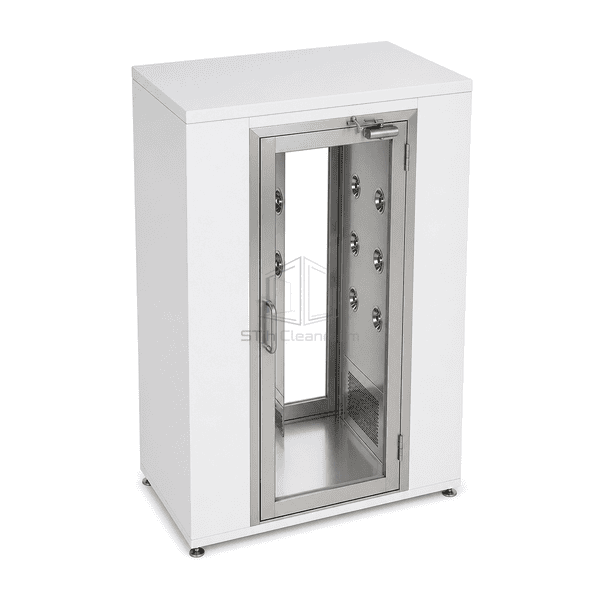

Three-quarter view of a double-sided single-person cleanroom air shower

Personnel and Material Decontamination Equipment

Double-Sided Single-Person Air Shower

A compact one-person air shower with active nozzle arrays on both sidewalls for balanced exposure across front, back and side garment surfaces.

Opposed Nozzle Walls
Balanced Air Coverage
Compact Passage
Closed-Loop Filtration

Request a Quote Browse Products

Product Introduction

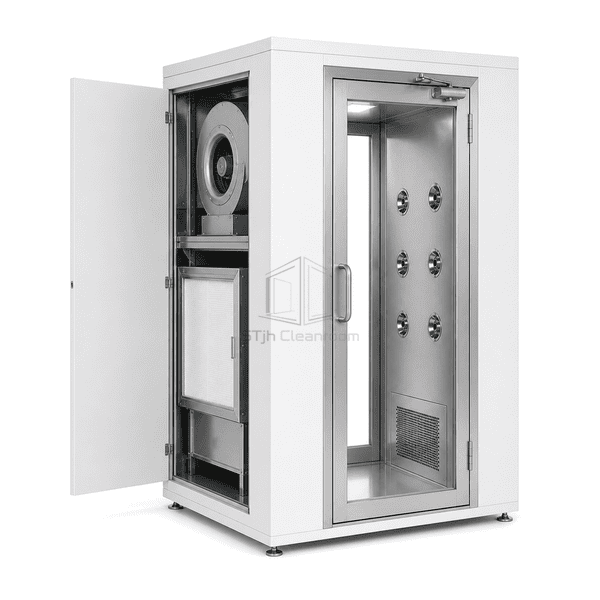

Two pressurised side plenums form the core of this double-sided air shower. Their opposed nozzle arrays provide cleaning air from both sides of the operator while screened lower returns collect the released particles. The layout is designed for facilities that require fuller all-around garment coverage than a one-wall air shower but retain a one-person entrance route.

Key Features

Opposed nozzle fields reduce shadow areas on the side of the body away from a single air source.

Individually aimable outlets support adjustment for different garment lengths.

Two return paths collect air from both sides of the passage.

Removable inner access panels simplify cleaning of the nozzle and return surfaces.

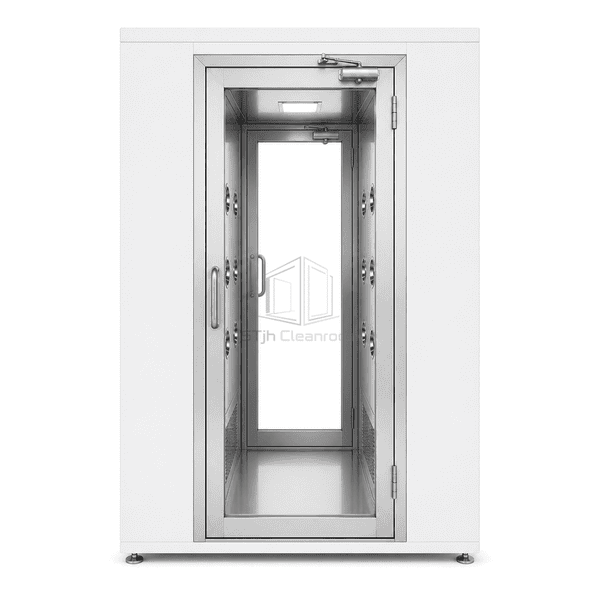

Straight-through door alignment gives operators an intuitive direction of travel.

Customer Product Concerns

Two active walls must improve body coverage while keeping airflow distribution and service access manageable.

One-sided airflow leaves protected surfaces on the far side of the operator.Matched arrays on the two sidewalls deliver air from opposing directions in the same cycle.

One side may feel stronger when the plenums are not balanced.Separate fan branches and balancing adjustments can equalise the two nozzle banks.

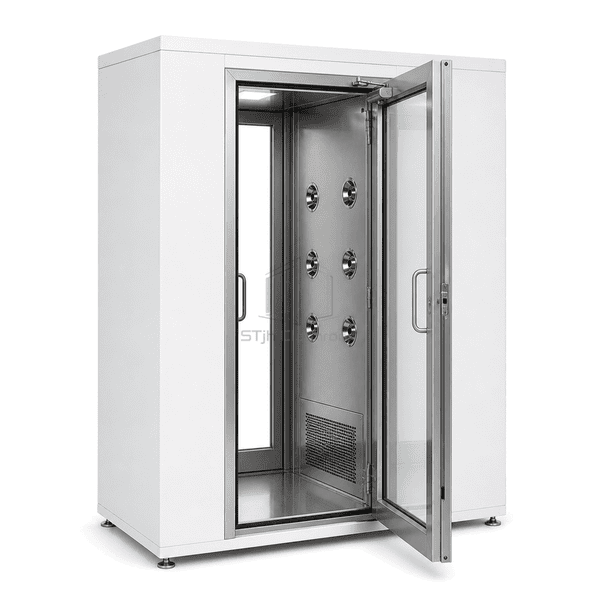

Crossing air streams may keep particles in the central passage.Paired low-level returns remove the contaminated air along both walls.

Internal maintenance disrupts the occupied passage.Serviceable nozzle panels provide access without dismantling the outer enclosure.

Typical Applications

Semiconductor gowning routesOptics manufacturing cleanroomsSterile-packaging accessPrecision assembly laboratories

Technical Parameters

The following ranges suit a double-sided one-person cleaning chamber.

Core Material	Mineral-wool insulated steel shell with two stainless nozzle banks, dual prefilters and H13 final filtration
Panel Thickness	50 mm insulated side and roof panels
Effective Width	800-1000 mm clear operator passage width
Maximum Length	Up to 1500 mm straight-through enclosure length
Steel Facing Thickness	1.0-1.2 mm powder-coated steel or stainless facing
Core Density	80-100 kg/m³ mineral-wool panel infill
Thermal Conductivity	0.035-0.045 W/(m·K) for the mineral-wool insulation layer
Surface Finish	Low-sheen white powder coat with brushed stainless nozzle plates
Joint Type	Flush panel seams with sealed twin-plenum access panels and interlocked doors
Customization	Available based on the intended application and operating environment.

Available Options

Twin 6-9 nozzle side arraysPowder-coated or stainless enclosureAirflow adjustment controllerCycle-status display

Planning a Double-Sided Single-Person Air Shower specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
