Cleanroom Flooring Systems

Die-Cast Aluminum Raised Access Floor

A precision die-cast aluminum access-floor panel with orthotropic underside ribs for corrosion-resistant, non-magnetic cleanroom and technical-area installations.

Monolithic Die-Cast Aluminum
Non-Magnetic Construction
Corrosion-Resistant Panel
High Stiffness at Low Weight

Request a Quote Browse Products

Product Introduction

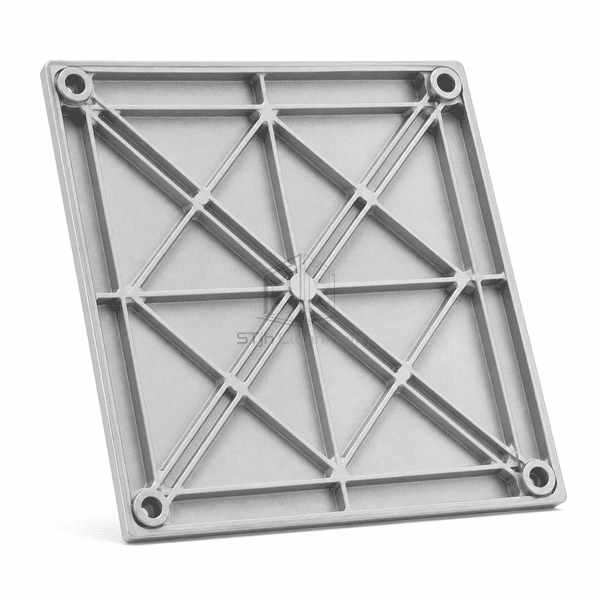

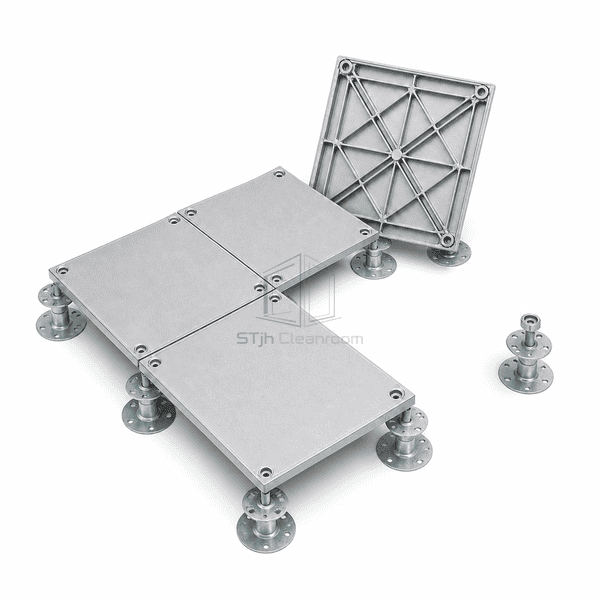

Die-cast aluminum raised access flooring uses a one-piece panel with an orthotropic underside rib pattern that directs material where bending stiffness is needed. The corrosion-resistant, non-magnetic carrier panel is accurately manufactured for repeatable alignment on a 600 mm pedestal grid. Its open ribbed underside leaves space for service distribution and reduces panel weight compared with a solid slab. The top can remain coated aluminum or accept cleanroom PVC and conductive finishes, while each module can be removed to reach the plenum below.

Key Features

The one-piece aluminum casting avoids welded seams within the carrier panel and resists corrosion in controlled environments.

Orthotropic ribs provide high load capacity with controlled deflection while limiting unnecessary panel mass.

Non-magnetic aluminum is suitable around processes and instruments that restrict ferrous floor construction.

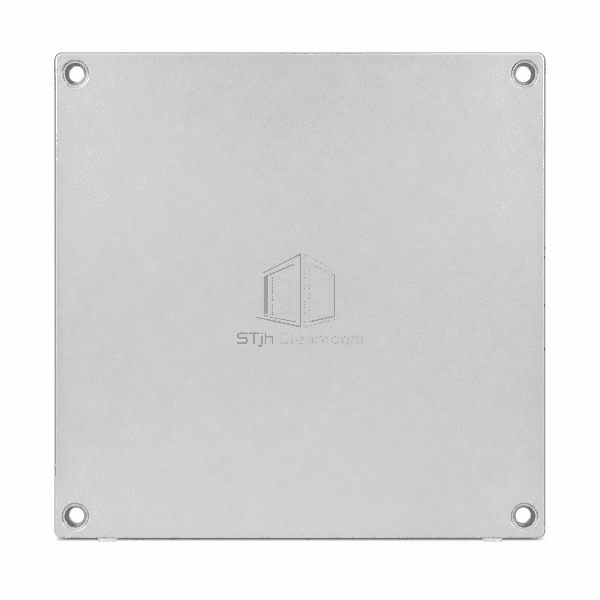

Conductive powder coating or resilient cleanroom covering can be bonded to the accurately machined top surface.

Customer Product Concerns

Cleanroom access flooring must combine frequent panel removal with corrosion resistance, tight fit and low particle-generating movement.

Paint damage exposes conventional steel panels to corrosion in humid service voids.The carrier panel is a corrosion-resistant aluminum casting rather than a painted carbon-steel shell.

Heavy solid panels slow maintenance and increase handling risk during access.The ribbed orthotropic design removes non-working material while retaining structural stiffness.

Ferrous floor components interfere with magnetically sensitive instruments.The principal panel body is non-magnetic aluminum, with understructure materials selected separately for the room.

Inconsistent panel dimensions create rocking edges and dirt-trapping height differences.Precision casting and machining provide repeatable corner geometry across the modular grid.

Typical Applications

Semiconductor cleanroomsPrecision metrology roomsPharmaceutical clean manufacturing suitesMedical-device controlled areasHigh-specification technical rooms

Technical Parameters

Typical values for a high-load die-cast aluminum raised-floor panel are listed below.

Core Material	One-piece die-cast aluminum alloy with orthotropic underside reinforcing ribs
Panel Thickness	52–60 mm overall structural panel depth
Effective Width	600 mm nominal pedestal-grid width
Maximum Length	600 mm nominal modular panel length
Steel Facing Thickness	0 mm; the monolithic aluminum carrier has no steel facing
Core Density	Approximately 2700 kg/m³ for the die-cast aluminum alloy
Thermal Conductivity	Approximately 130–180 W/(m·K) for common die-cast aluminum alloys
Surface Finish	Conductive or non-conductive powder coating, with optional bonded cleanroom PVC

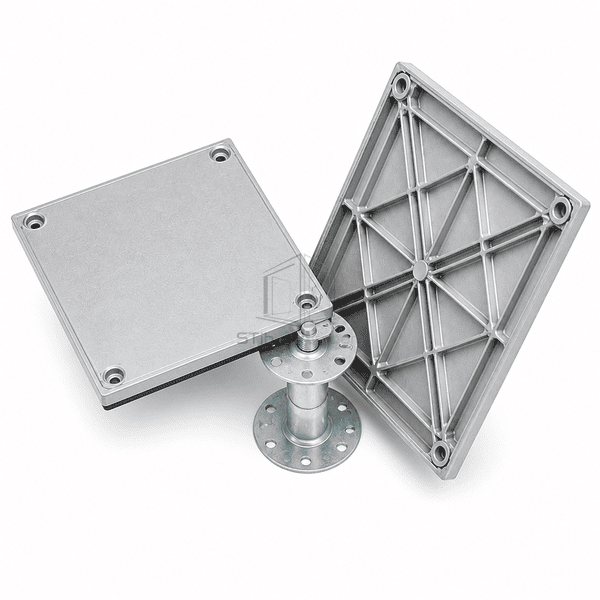

Joint Type	Precision removable panels located on gasketed pedestal heads in a 600 mm grid
Customization	Available based on the intended application and operating environment.

Available Options

Conductive or standard powder-coated surfaceBonded cleanroom PVC finishSolid or drilled ventilation configurationPedestal heights from approximately 50–2000 mm
