Cleanroom Furniture and Stainless Steel Products
Cleanroom Weighing Table

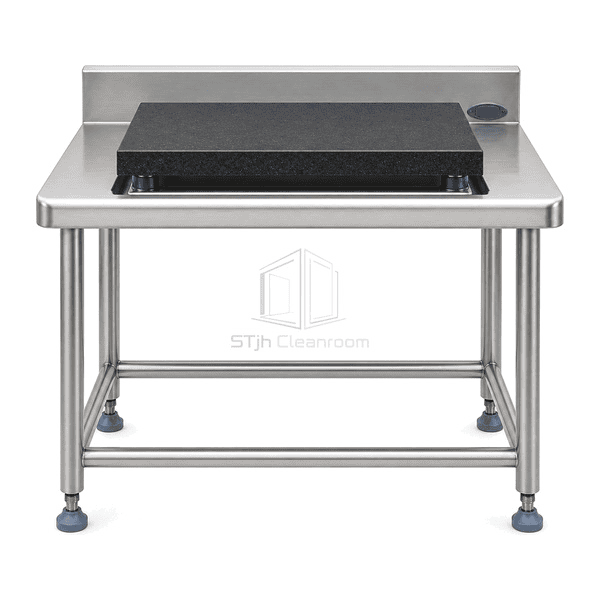

A stainless weighing workstation with an independently supported granite platform that separates precision balances from operator contact.
- Independent granite balance slab
- Elastomer damping mounts
- Stainless cleanable surround
- Fine-adjust leveling feet
Product Introduction

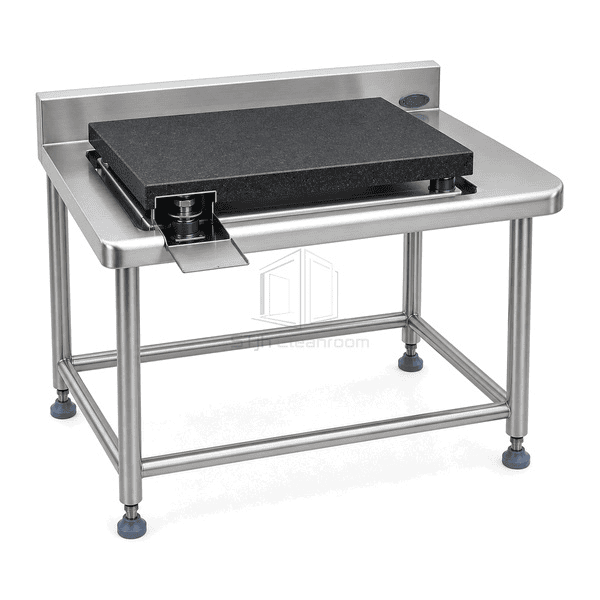

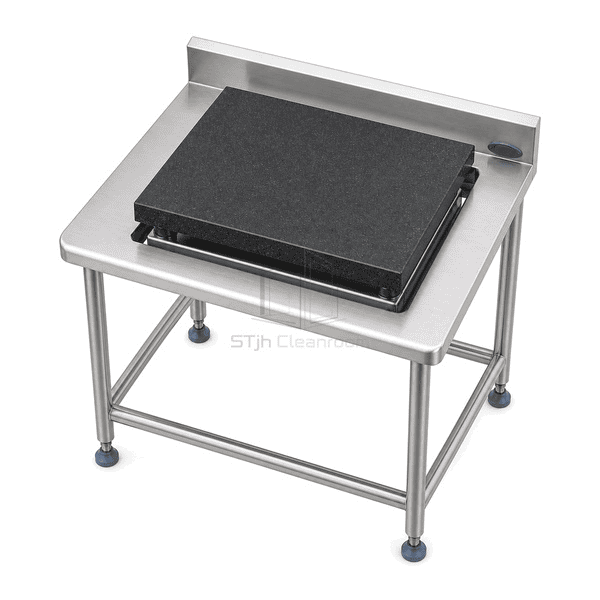

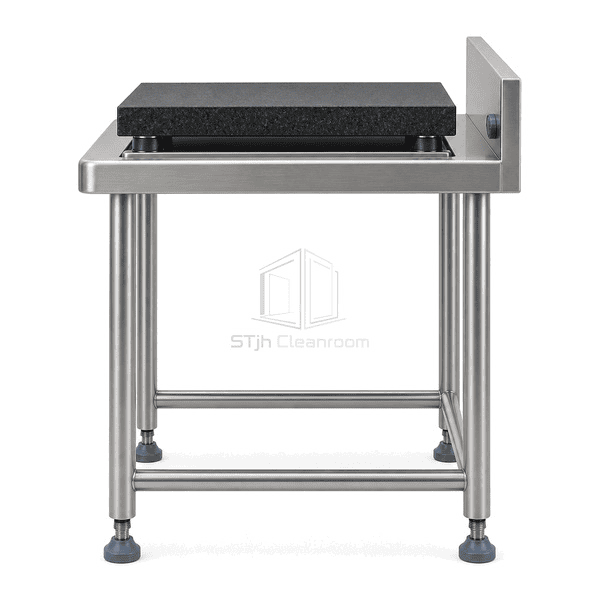

The cleanroom weighing table places the balance on a dense granite insert that is mechanically separated from the surrounding stainless work surface. Operator contact, writing and container handling occur on the outer bench rather than the balance support. Elastomer or pneumatic isolators damp transmitted floor energy, and adjustable feet level the supporting frame. Flush clearances around the stone remain wide enough for wipe access without bridging the isolated platform.
Key Features
The isolated balance slab does not touch the surrounding operator work surface.
Fine-adjust feet level the base before the balance is calibrated.
A stainless surround contains powder spills while keeping the stone perimeter accessible for cleaning.
Customer Product Concerns
Precision weighing can drift when footsteps, door movement or operator contact reaches the balance platform.
Writing or placing containers on the bench moves the balance reading.The balance rests on an independent stone slab isolated from the outer work surface.
A light metal tabletop resonates with nearby footfall and equipment vibration.Dense granite adds mass and damping directly beneath the instrument.
An uneven base forces the balance leveling feet near their adjustment limit.Frame-level adjusters establish a stable reference before instrument setup.
Narrow gaps around a stone insert retain spilled powder.A controlled open clearance exposes the platform perimeter without creating a rigid bridge.
Typical Applications
Analytical balance weighingPharmaceutical dispensing supportReference standard preparationLaboratory sample weighingPrecision formulation
Technical Parameters
Typical configurable specifications for a cleanroom weighing table are listed below.
| Core Material | Dense granite balance platform with Type 304 stainless steel outer work surface and frame |
|---|---|
| Panel Thickness | 50–80 mm granite insert; 1.2–1.5 mm stainless surround |
| Effective Width | 600–750 mm overall work surface depth |
| Maximum Length | 1200 mm |
| Steel Facing Thickness | 1.2–1.5 mm Type 304 stainless steel |
| Core Density | 2600–2800 kg/m³ granite platform |
| Thermal Conductivity | 2.5–3.5 W/(m·K) for granite |
| Surface Finish | Polished granite insert with brushed stainless steel surround |
| Joint Type | Independently supported stone platform on elastomer or pneumatic damping mounts |
| Customization | Available based on the intended application and operating environment. |
Available Options
Elastomer or pneumatic isolationIntegrated balance draft shield shelfRear service chaseSUS316L outer surface
Planning a Cleanroom Weighing Table specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
