Cleanroom Wall and Ceiling Systems
Cleanroom U-Channel Edge Trim

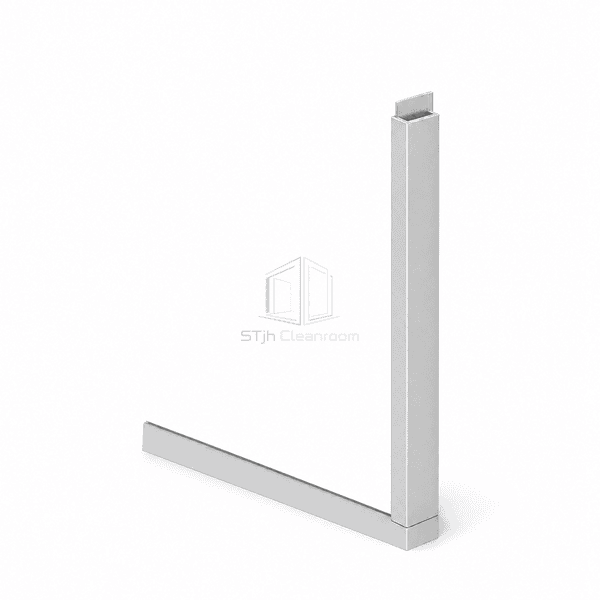

An extruded aluminum U-channel used to close exposed cleanroom panel ends, retain wall or ceiling modules and form straight, sealable junctions around openings and perimeter edges.
- 6063-T5 Aluminum
- Panel Edge Protection
- Straight Sealed Termination
- 50–100 mm Panel Fit
Product Introduction

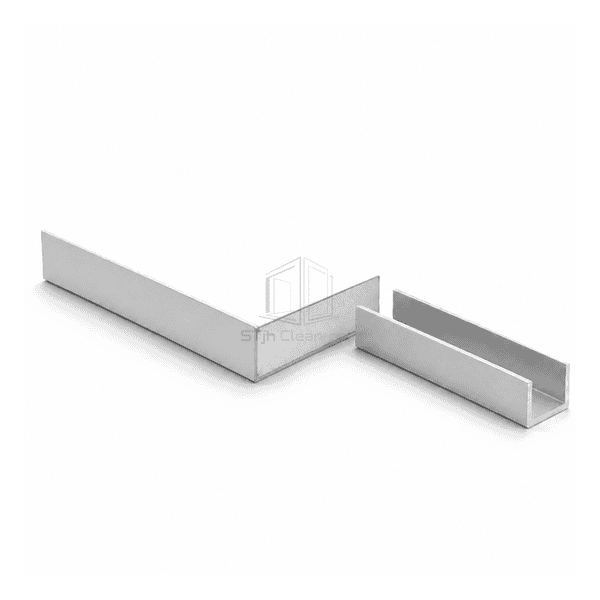

Cleanroom U-Channel Edge Trim is a rigid 6063-T5 aluminum extrusion sized to cap the end of a modular wall or ceiling panel. It protects exposed panel skins and core material, keeps the termination straight and supplies a controlled line for hygienic sealant. Common internal widths match 50, 75 and 100 mm panel systems, while anodized or white powder-coated finishes coordinate with the cleanroom envelope. The profile is useful at wall ends, ceiling perimeters, framed openings and selected T-junctions where a simple, durable closure is preferred to a multi-part trim.
Key Features
6063-T5 aluminum combines dimensional accuracy with practical corrosion resistance indoors.
A straight extrusion creates a consistent perimeter line for silicone or gasket sealing.
Standard channel widths match widely used 50, 75 and 100 mm modular panel systems.
Anodized and powder-coated finishes avoid an unfinished metallic edge in the clean area.
Customer Product Concerns
Edge closures must protect the panel core, remain straight over long runs and leave a surface that can be sealed and wiped without exposed fasteners.
An exposed sandwich-panel core can shed particles or absorb cleaning moisture.The full-depth channel encloses both skins and the open core edge behind a sealed aluminum face.
A loose termination lets the panel end move and crack the sealant line.A correctly sized internal channel width grips the panel and distributes restraint along the edge.
Uneven cut edges remain visible beside doors, windows or equipment openings.The straight extrusion masks minor edge variation and establishes a uniform finished reveal.
Bare or rough metal edges are difficult to clean safely.Smooth anodized or powder-coated aluminum presents a closed, wipeable perimeter surface.
Typical Applications
Cleanroom wall end closuresCeiling perimeter terminationsPanel-to-opening edge trimsT-junction panel restraintsService aperture perimeter finishing
Technical Parameters
The following ranges represent common extruded U-channel edge trims for modular cleanroom panel systems.
| Core Material | Solid 6063-T5 extruded aluminum; no cellular core |
|---|---|
| Panel Thickness | 1.0–1.5 mm profile wall thickness |
| Effective Width | 50, 75 or 100 mm internal channel width |
| Maximum Length | 6000 mm |
| Steel Facing Thickness | N/A — aluminum edge trim has no steel facing |
| Core Density | N/A — solid aluminum extrusion |
| Thermal Conductivity | N/A — not specified as an insulating panel |
| Surface Finish | Clear anodized or polyester powder-coated aluminum |
| Joint Type | Slip-fit U-channel with adhesive, concealed fasteners and perimeter sealant |
| Customization | Available based on the intended application and operating environment |
Available Options
50, 75 and 100 mm internal widthsWhite powder-coated finishClear anodized finishPre-cut lengths and corner mitres
