Cleanroom Panel Clamp

A reusable stainless-steel bridge clamp that holds adjacent sandwich-panel edges in alignment while their joint is fixed and sealed.

Reusable Installation Tool
Opposed Edge Jaws
Threaded Force Control
No Permanent Face Fixing

Request a Quote Browse Products

Product Introduction

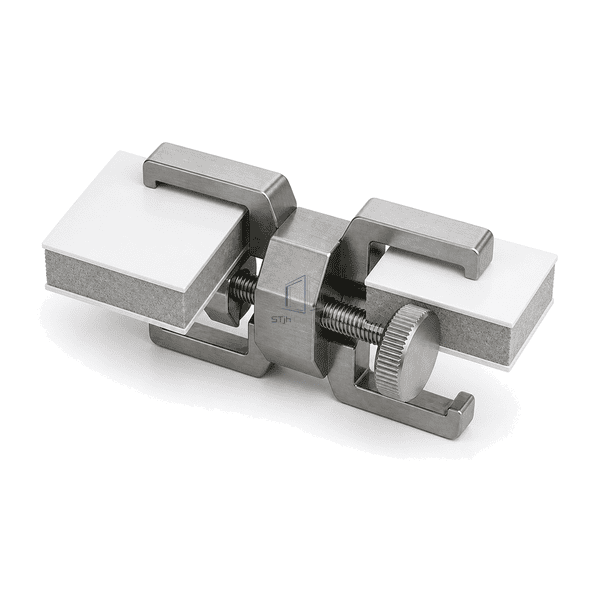

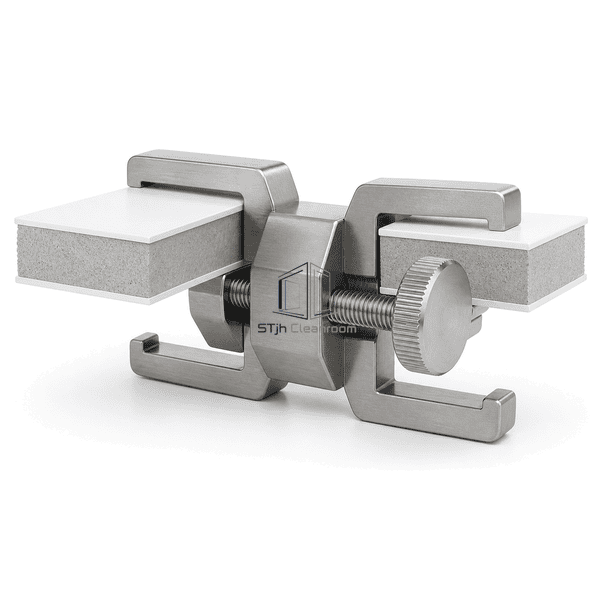

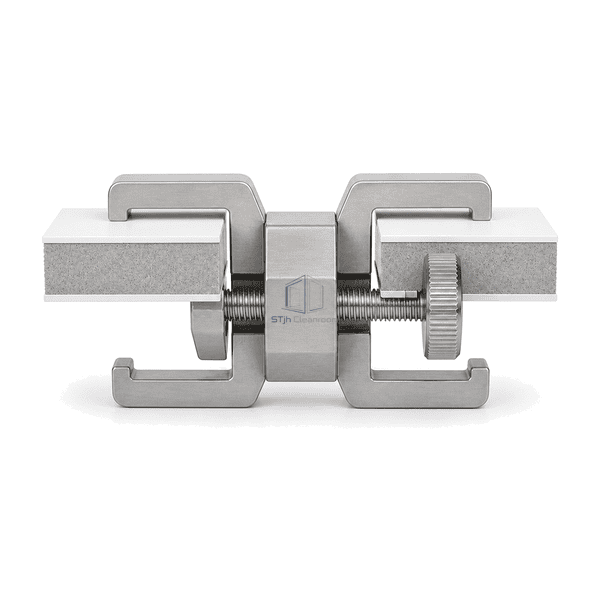

The cleanroom panel clamp is an external installation tool with opposed formed jaws and a threaded adjuster. The jaws bear on protected panel edges while the screw draws adjacent sandwich panels into a stable working position. Installers can therefore check face alignment, close the joint and complete concealed fixing before removing the clamp, without leaving the tool as part of the finished enclosure.

Key Features

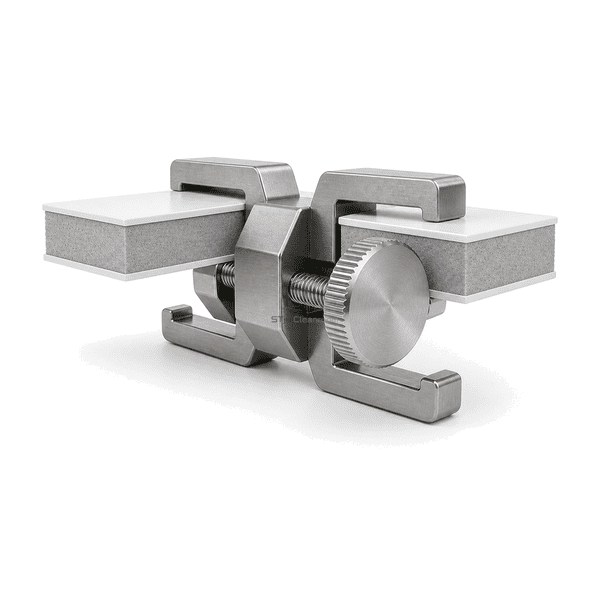

Opposed hooked jaws engage both panel edges without relying on a permanent surface fastener.

A coarse threaded adjuster provides progressive, controllable closing force during alignment.

Stainless construction tolerates repeated handling and can be cleaned between installation areas.

Replaceable contact pads or protected jaw faces can reduce marking on coated steel skins.

Customer Product Concerns

Lightweight insulated panels can move or develop a face step before concealed joint hardware and sealant have secured the assembly.

Two panel faces drift out of plane while the concealed fixing is tightened.The bridge clamp holds both edges against a common jaw position during fastening.

Uncontrolled leverage can dent thin coated-steel facings.Threaded adjustment applies force gradually, with jaw pads selected for the facing finish.

Temporary screws leave holes that require hygienic repair.External jaws grip removable edge locations without adding permanent face penetrations.

Different panel thicknesses make a fixed-gap tool impractical.Jaw reach, bridge width and screw travel can be matched to the installed panel system.

Typical Applications

Cleanroom wall-panel erectionCeiling panel edge alignmentModular enclosure assemblyJoint sealing preparationDoor and window infill installation

Technical Parameters

Typical construction ranges for a reusable stainless cleanroom sandwich-panel alignment clamp are listed below.

Core Material	304 stainless-steel bridge, opposed formed jaws and threaded adjuster
Panel Thickness	50-150 mm compatible sandwich-panel thickness
Effective Width	60-240 mm adjustable jaw span
Maximum Length	Up to 500 mm overall clamp bridge length
Steel Facing Thickness	2.00-6.00 mm structural clamp component thickness
Core Density	Approximately 7900-8000 kg/m³ for stainless-steel components
Thermal Conductivity	Approximately 14-17 W/(m·K) for austenitic stainless steel
Surface Finish	Brushed or bead-blasted stainless steel with optional non-marking jaw pads
Joint Type	Removable opposed-jaw bridge clamp with threaded mechanical adjustment
Customization	Available based on the intended application and operating environment.

Available Options

304 or 316 stainless steelSoft polymer jaw padsHex-bolt or hand-knob adjustmentCustom jaw reach and span
