Cleanroom Furniture and Stainless Steel Products
Cleanroom Instrument Table
A compact all-stainless equipment stand with a solid upper deck, ledgeless lower shelf and round-tube frame for cleanroom instruments.
- Compact instrument footprint
- Ledgeless lower storage shelf
- Round-tube welded frame
- Accessible leveling feet
Product Introduction

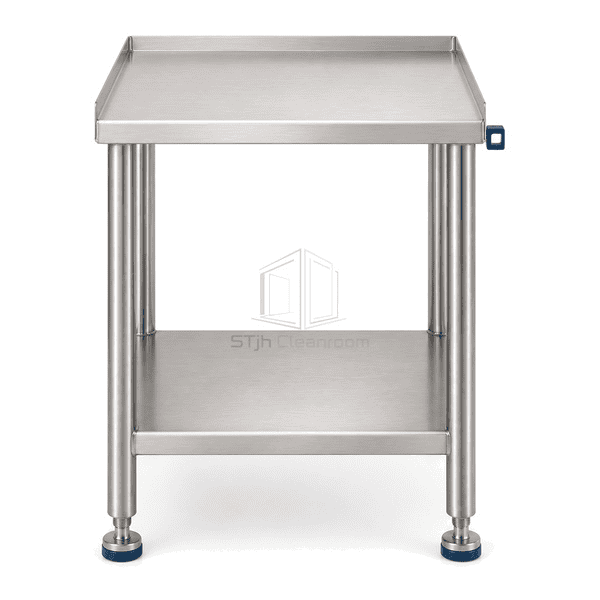

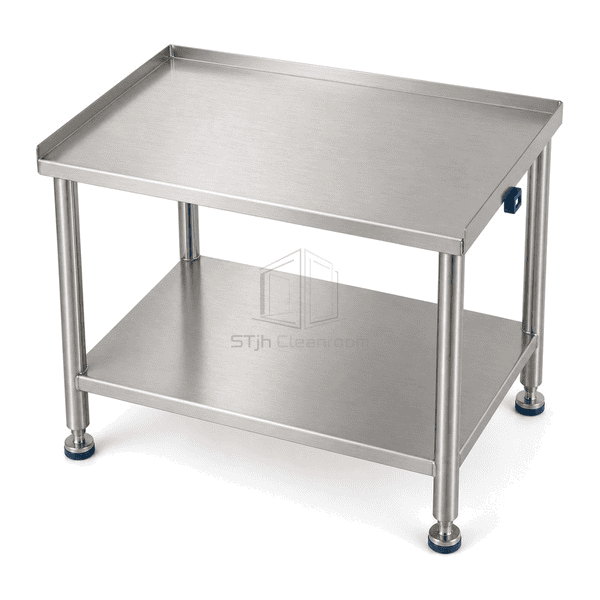

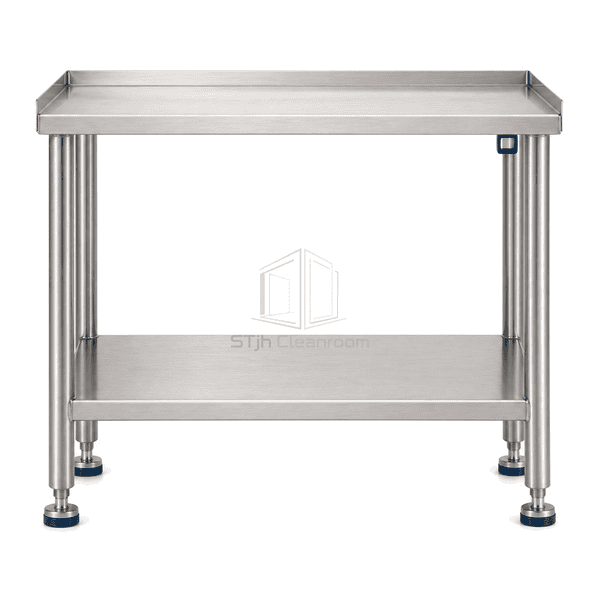

The cleanroom instrument table provides a dedicated support for compact analysers, monitors, pumps and benchtop process equipment. Its solid stainless upper deck has a low marine edge that contains small spills without obstructing loading. A ledgeless lower shelf holds accessories or service modules clear of the floor, and the open round-tube frame exposes every surface to routine wiping. Adjustable feet set the deck level without the particle traps associated with enclosed casework.
Key Features
The low perimeter edge retains minor drips while leaving the front open for direct loading.
A ledgeless lower shelf provides accessible auxiliary storage without a closed cabinet cavity.
Fully welded round tubing reduces external corners and presents smooth lines for wipe-down.
Customer Product Concerns
Compact instruments are often placed on oversized benches or improvised stands that waste floor area and complicate cleaning.
An instrument and its controller occupy unrelated surfaces and create long exposed cable runs.Upper and lower decks keep the operating unit and its auxiliary hardware on one compact stand.
Flat shelves allow small liquid leaks to reach the frame and floor.A low marine edge contains minor drips on the removable cleaning surface.
Box-section legs and enclosed cupboards create inaccessible corners around a small device.An open round-tube base leaves the instrument perimeter and floor visible for cleaning.

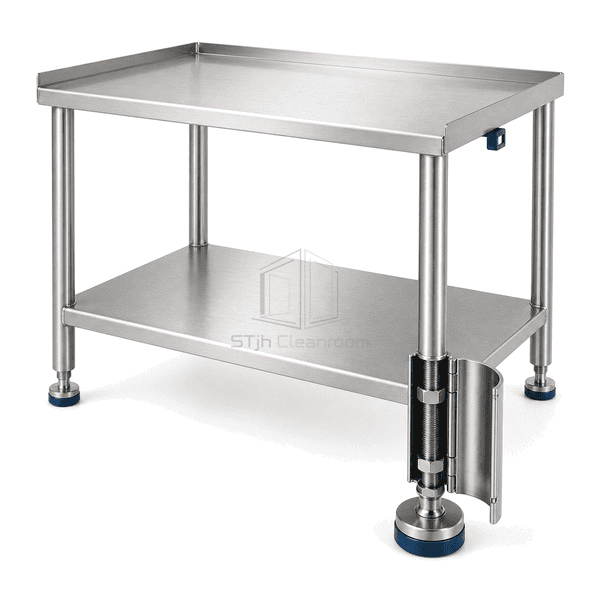

A narrow instrument rocks when the floor is uneven.Four accessible threaded feet level the support independently at each corner.
Typical Applications
Particle counter supportPortable analyser placementSmall process pump stationEnvironmental monitor standBenchtop controller support
Technical Parameters
Typical configurable specifications for a stainless cleanroom instrument table are listed below.
| Core Material | Solid Type 304 stainless steel upper deck and lower shelf on a sealed round-tube frame |
|---|---|
| Panel Thickness | 1.2–1.5 mm stainless deck and shelf with formed reinforcement |
| Effective Width | 450–750 mm instrument deck depth |
| Maximum Length | 1800 mm |
| Steel Facing Thickness | 1.2–1.5 mm Type 304 stainless steel |
| Core Density | 7900–8000 kg/m³ solid stainless components |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Brushed No. 4 stainless steel with radiused edges and smooth welds |
| Joint Type | Continuous welded round-tube frame with formed ledgeless deck and shelf connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Type 316L stainless steel constructionElectropolished finishLocking cleanroom castersCable rail or rear equipment shelf
Planning a Cleanroom Instrument Table specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
