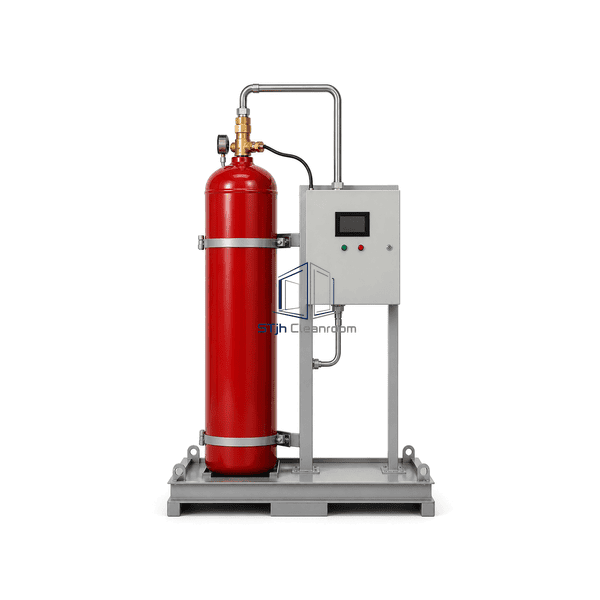

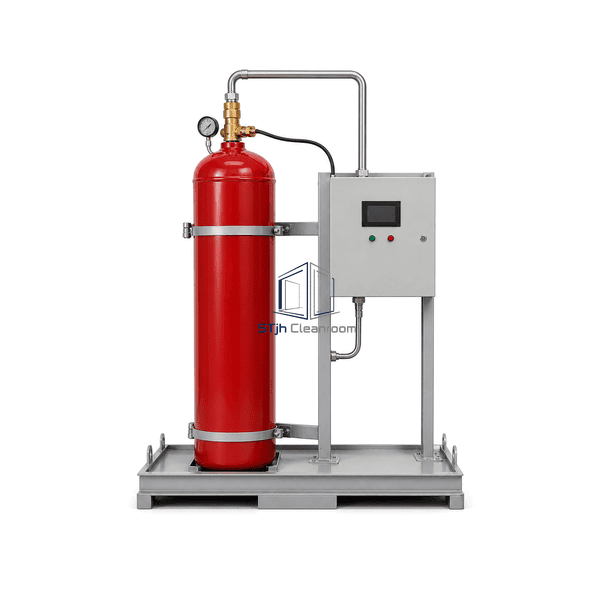

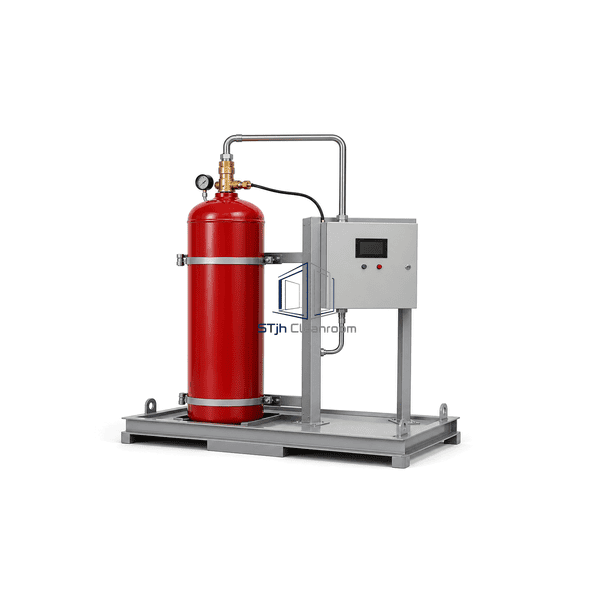

Complete clean-agent suppression cylinder bank and release panel in three-quarter view

Cleanroom Drainage, Hygiene and Safety Equipment

Clean Agent Fire Suppression System

An engineered gaseous suppression package that discharges without water or cleanup residue in critical equipment spaces.

Residue-Free Gaseous Discharge
Supervised Cylinder Bank
Engineered Nozzle Network
Integrated Releasing Controls

Request a Quote Browse Products

Product Introduction

The clean-agent system stores the selected extinguishing medium in supervised cylinders connected to a calculated distribution network. Detection and releasing controls manage alarm verification, shutdown interfaces and discharge sequencing, while pressure switches report system operation. Cylinder capacity, nozzle orifices and room integrity requirements are engineered for the actual protected volume and hazard.

Key Features

Gaseous discharge avoids water damage and post-event powder cleanup.

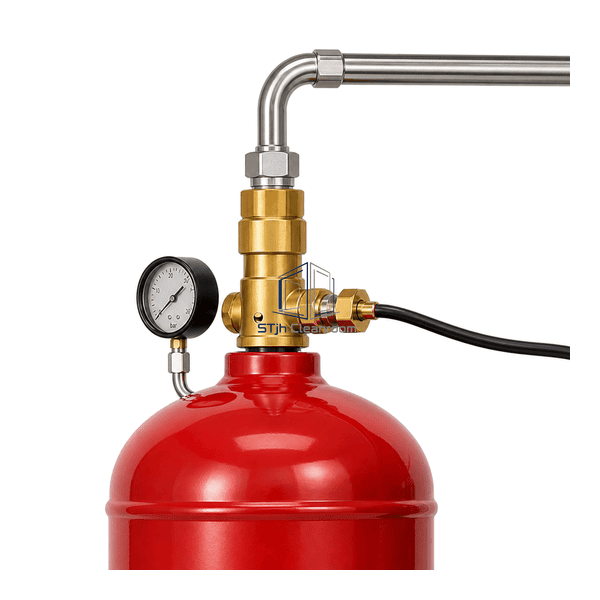

Supervised valves and pressure contacts report system readiness.

Calculated pipe and nozzle sizing distributes agent through the protected enclosure.

Releasing controls coordinate alarms, ventilation shutdown and manual abort functions.

Customer Product Concerns

Critical electronics need rapid fire suppression without conductive water or persistent residue, yet discharge must remain engineered for occupant and enclosure conditions.

Water discharge can damage energized controls and clean equipment.The selected clean agent suppresses fire as a gas and leaves no particulate residue.

An undersized agent quantity fails to reach the design concentration.Cylinder capacity is calculated from protected volume, leakage and design conditions.

Open dampers allow agent to escape before hold time is achieved.The release panel coordinates ventilation shutdown and closure interfaces.

Accidental discharge disrupts production.Cross-zoned detection, manual abort and supervised circuits support controlled release logic.

Typical Applications

Cleanroom control roomsProcess equipment enclosuresElectrical switch roomsCritical data and instrumentation spaces

Technical Parameters

Typical cylinder-bank construction values are listed below; agent quantity, nozzle drilling and release logic remain specific to the protected hazard.

Core Material	Painted steel agent cylinders with brass valves and steel or stainless distribution pipe
Panel Thickness	2.5-6.0 mm cylinder wall depending on pressure and capacity
Effective Width	300-1800 mm cylinder-bank width
Maximum Length	Up to 2200 mm cylinder and manifold height
Steel Facing Thickness	1.2-2.0 mm releasing-control enclosure panels
Core Density	7850 kg/m³ for steel pressure-vessel parts
Thermal Conductivity	45-60 W/(m·K) for carbon-steel components
Surface Finish	Red or white protective coating with corrosion-resistant valve hardware
Joint Type	High-pressure threaded or flared manifold with supervised discharge valves
Customization	Available based on the intended application and operating environment.

Available Options

Single or multi-cylinder bankMain/reserve arrangementLocal releasing panelRemote alarm and shutdown interfaces

Planning a Clean Agent Fire Suppression System specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
