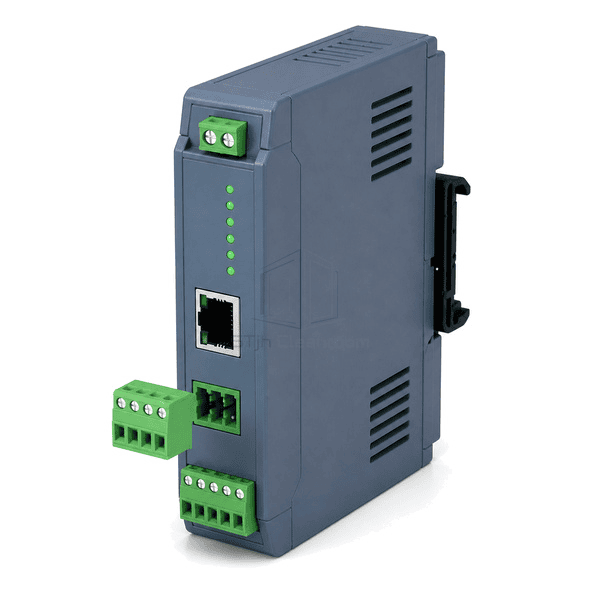

Complete gray-blue BACnet gateway with Ethernet, MS TP terminals and green status LEDs

Cleanroom Control and Environmental Monitoring Systems

BACnet Communication Gateway

An industrial gateway that maps cleanroom field-device data into BACnet objects for building automation, alarming, trending and supervision.

BACnet IP and MS/TP
Mapped BACnet Objects
COV Notification Support
Field Protocol Conversion

Request a Quote Browse Products

Product Introduction

The BACnet protocol gateway reads selected values from Modbus or other field devices and exposes them as named BACnet objects. Object type, instance, units, writable status and change-of-value behavior can be configured to match the building automation database. BACnet/IP Ethernet and BACnet MS/TP serial options allow connection to new or existing supervisory networks. Device discovery, object diagnostics and polling statistics help verify that cleanroom sensors, meters and equipment states are represented accurately without replacing their original controllers.

Key Features

Field registers are mapped into structured BACnet analog, binary and multistate objects.

BACnet/IP and MS/TP options connect to different building automation network layers.

Change-of-value reporting reduces unnecessary polling for slowly changing room conditions.

Object and communication diagnostics identify mapping, timeout and discovery problems.

Customer Product Concerns

Protocol conversion is successful only when engineering units, writable behavior and alarm meaning survive the register-to-object mapping.

Raw Modbus registers appear in the BMS without meaningful names or units.Configured BACnet objects assign descriptive names, units and object types to each value.

A read-only field value is accidentally exposed as writable.Object mapping explicitly controls command permissions and write behavior.

Continuous polling overloads a slower field network.Polling intervals and COV reporting balance freshness with serial-network capacity.

Duplicate BACnet device or object instances prevent discovery.Unique instance planning and built-in diagnostics expose address conflicts before integration.

Typical Applications

Cleanroom BMS integrationEnvironmental sensor mappingEnergy meter BACnet conversionFFU and equipment status integration

Technical Parameters

Typical construction values for an industrial BACnet protocol gateway are listed below.

Core Material	FR-4 protocol processor with isolated interfaces in glass-filled flame-retardant polymer DIN-rail enclosure
Panel Thickness	90-140 mm gateway depth
Effective Width	35-100 mm DIN-rail width
Maximum Length	Up to 170 mm housing height
Steel Facing Thickness	0 mm; non-metallic enclosure
Core Density	1180-1550 kg/m³ for reinforced-polymer enclosure parts
Thermal Conductivity	0.19-0.40 W/(m·K) for polymer enclosure material

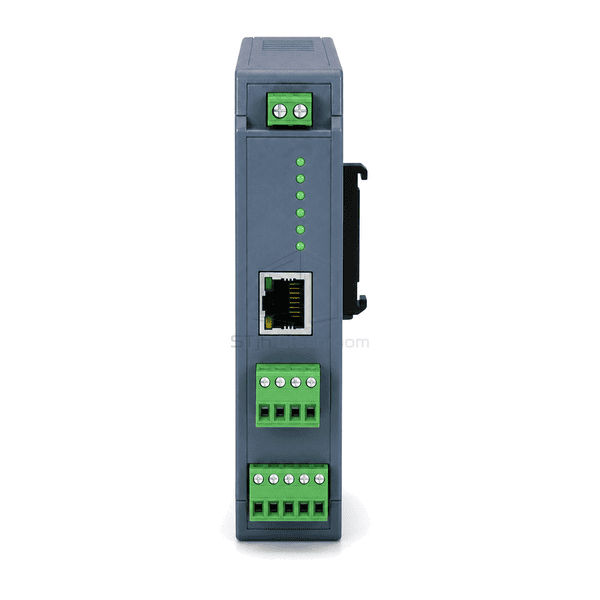

Surface Finish	Gray-blue reinforced-polymer housing with green BACnet and field-network LEDs

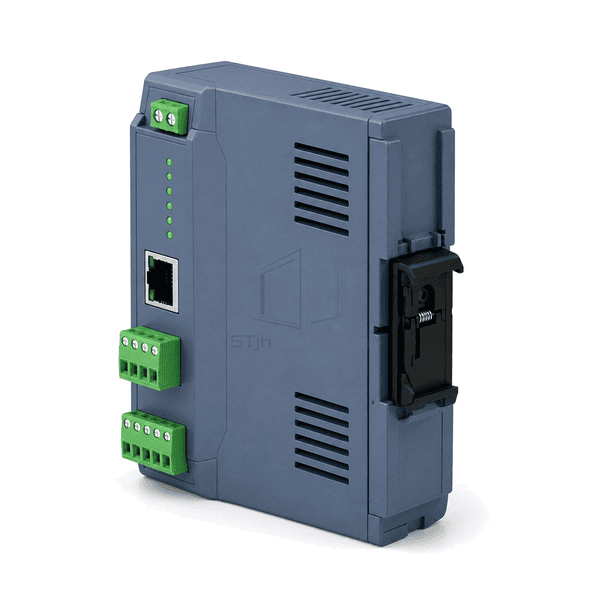

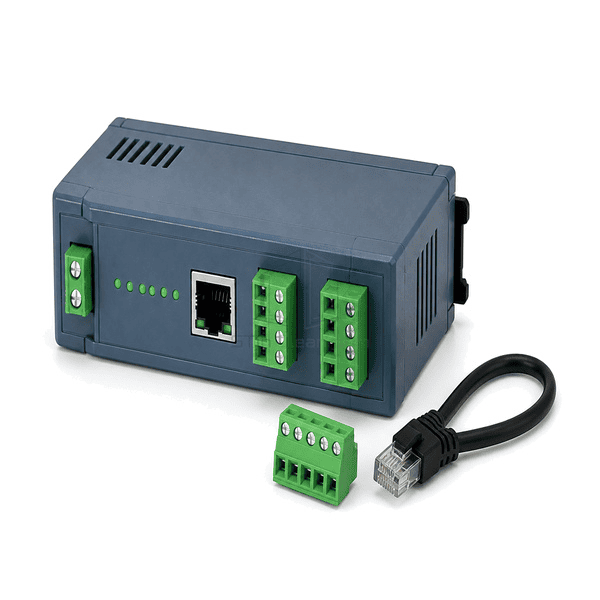

Joint Type	DIN-rail clip with RJ45 BACnet/IP, removable MS/TP and field-bus terminals
Customization	Available based on the intended application and operating environment.

Available Options

BACnet/IP or MS/TPModbus RTU or TCP field sideCOV and alarm object mappingOptional metal enclosure
