Industry-Specific Cleanroom Equipment

Automatic Boot Washer

A compact stainless three-brush washer that automatically scrubs boot soles and shafts with metered water and cleaning chemical.

Three-Brush Cleaning
Automatic Water and Dosing
Stable Grab Rail
Wash-Down Stainless Basin

Request a Quote Browse Products

Product Introduction

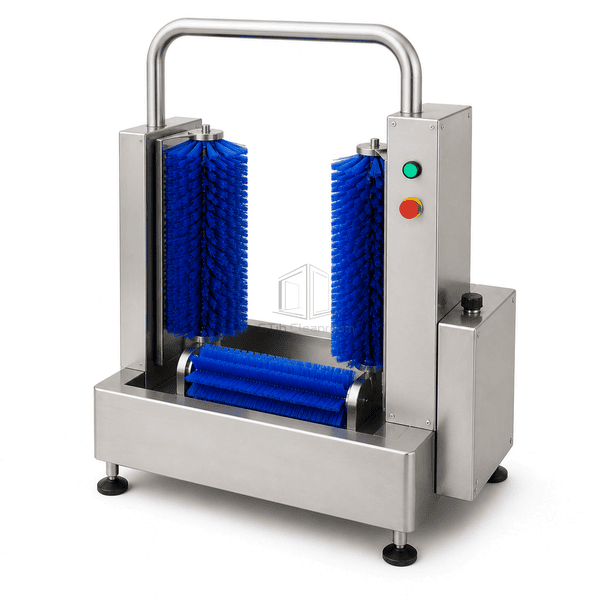

The automatic boot washer positions one powered horizontal brush beneath the sole and two vertical brushes around the boot shaft. Activation starts coordinated brushing with water and detergent inside a drained stainless basin. The overhead rail supports the operator, while accessible controls and a separate dosing enclosure simplify use and service in wet food-production entrances.

Key Features

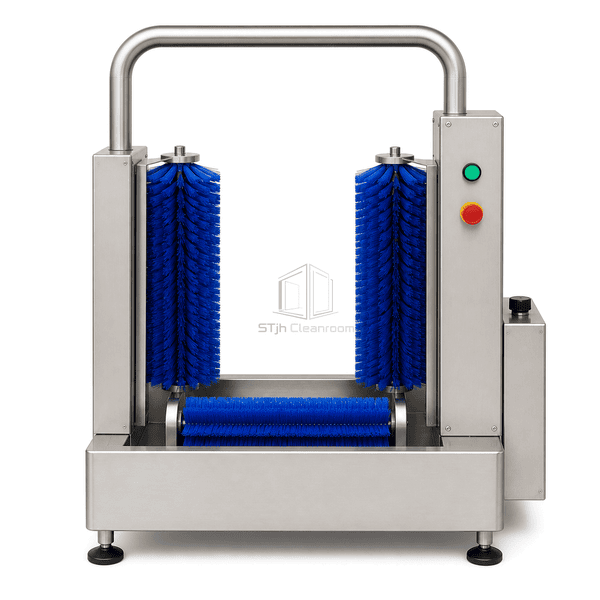

One sole brush and two opposed shaft brushes clean three footwear surfaces together.

Automatic spray and chemical dosing standardize each cleaning cycle.

A rigid overhead handrail improves balance while the brushes rotate.

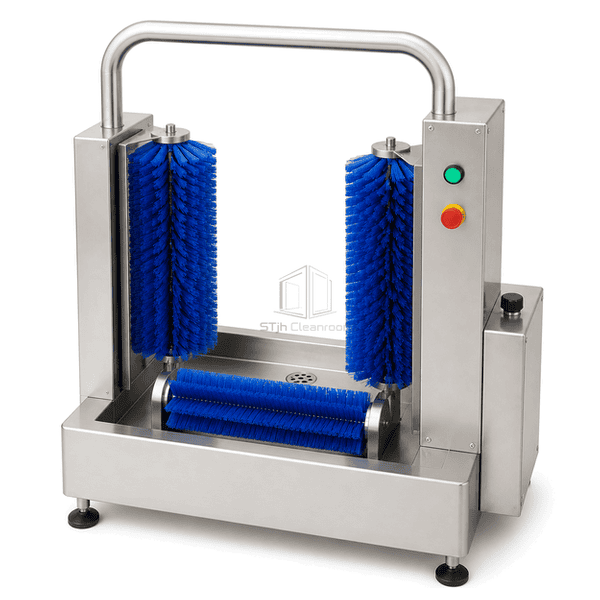

The open stainless basin exposes the brush set for rinsing and inspection.

Customer Product Concerns

Manual boot cleaning is inconsistent, time-consuming and often misses shaft surfaces where food soil remains attached.

Hand brushing produces variable contact time and coverage.Three powered brushes apply repeatable mechanical action to soles and both boot shafts.

Workers may use too little or too much cleaning chemical.The integrated dosing enclosure meters solution during the automatic cycle.

Rotating brushes can affect operator balance.A full-width stainless grab arch provides stable support throughout cleaning.

Enclosed mechanisms are difficult to rinse after production.An open basin and exposed removable brush assemblies support wash-down and inspection.

Typical Applications

Meat and poultry plantsDairy processing entrancesSeafood and ready-meal productionWet pharmaceutical utility areas

Technical Parameters

Typical configurable construction values for a compact automatic boot washer are listed below.

Core Material	304 stainless-steel frame and basin with blue food-grade polymer brushes
Panel Thickness	40-80 mm basin and drive-enclosure sections
Effective Width	450-700 mm clear boot-cleaning opening
Maximum Length	Up to 1100 mm overall machine length
Steel Facing Thickness	1.5-2.5 mm stainless basin and enclosure facing
Core Density	7950-8050 kg/m³ for stainless-steel construction
Thermal Conductivity	14-16 W/(m·K) for austenitic stainless steel
Surface Finish	Brushed hygienic stainless with blue replaceable polymer brushes
Joint Type	Welded drained basin with removable brush shafts and sealed control/dosing enclosures
Customization	Available based on the intended application and operating environment.

Available Options

Photocell or push-button activationAlternative brush stiffness and heightDetergent or disinfectant dosing packageLeft- or right-side service enclosure
