Personnel and Material Decontamination Equipment

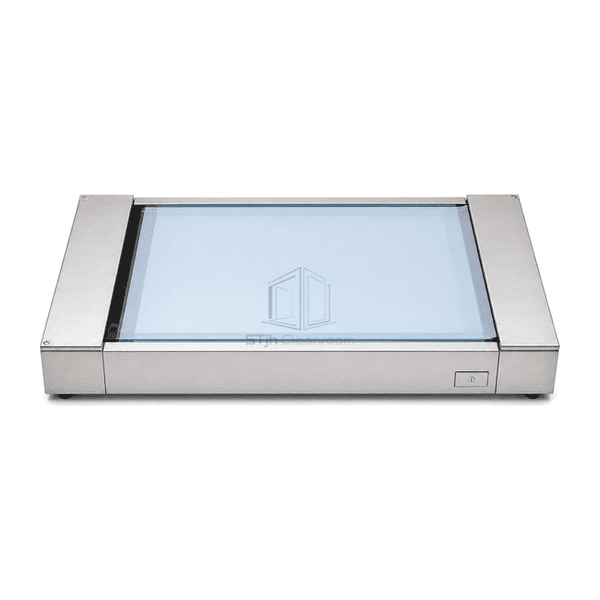

Automatic Adhesive-Film Sole Cleaner
A low-profile entry cleaner that advances continuous replaceable adhesive film to collect loose particles from footwear.
- Continuous replaceable adhesive film
- Automatic fresh-film advance
- Dry footwear collection
- Low-profile stainless housing
Product Introduction

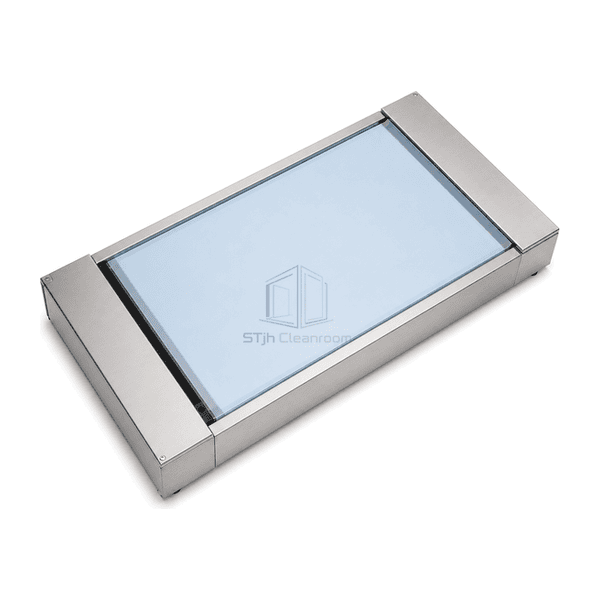

The Automatic Adhesive-Film Sole Cleaner presents a continuous adhesive film beneath the footwear contact area. After the configured number of steps or cleaning cycles, the drive advances the used section and brings a fresh adhesive surface into position. The film is supplied as a replaceable roll or cartridge inside a low stainless housing, providing a dry entry process without a wash basin.
Key Features
Film advance can be set to occur after a selected step or cycle count.

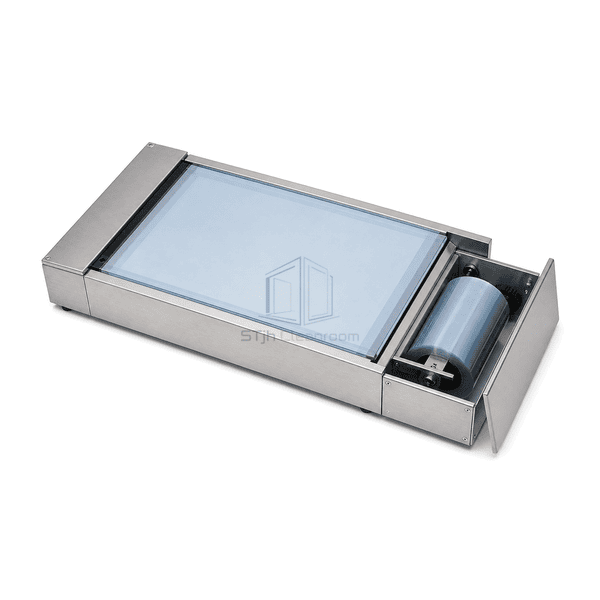

The replaceable film roll is changed as a consumable service item.
A guarded low-profile platform keeps the film path below the walking surface.
Dry operation avoids water, detergent and drain connections at the entry point.
Customer Product Concerns
Disposable sheet mats can become unevenly loaded, while a fixed contact surface may not provide a controlled fresh adhesive area for each cycle.
The most-used area of a conventional tack mat loads before the rest of the sheet.The drive advances the continuous film so a fresh adhesive section is presented.
Staff need to peel individual tacky sheets during busy entry periods.Film is supplied as a replaceable roll or cartridge rather than stacked sheets.
Wet footwear equipment is unsuitable near moisture-sensitive processes.The cleaner collects loose material through a dry adhesive-film contact surface.
Moving parts at floor level must remain protected from footwear.A guarded housing keeps the film drive and roll path below the tread surface.
Typical Applications
Electronics cleanroom changing roomsOptical assembly entrancesDry pharmaceutical support areasLaboratory gowning routesPrecision manufacturing access points
Technical Parameters
Film width, roll capacity and advance logic are selected to suit the footwear traffic pattern and available entry space.
| Core Material | Continuous replaceable adhesive polymer film in a welded SUS304 dispenser housing |
|---|---|
| Panel Thickness | 1.5–2.0 mm stainless steel housing panels |
| Effective Width | 350–600 mm active adhesive-film width |
| Maximum Length | 600–1100 mm overall platform length |
| Steel Facing Thickness | 1.5–2.0 mm SUS304 |
| Core Density | 900–950 kg/m³ for adhesive-film polymer backing |
| Thermal Conductivity | 0.35–0.45 W/(m·K) for adhesive-film polymer backing |
| Surface Finish | Brushed SUS304 housing with continuous replaceable adhesive film |

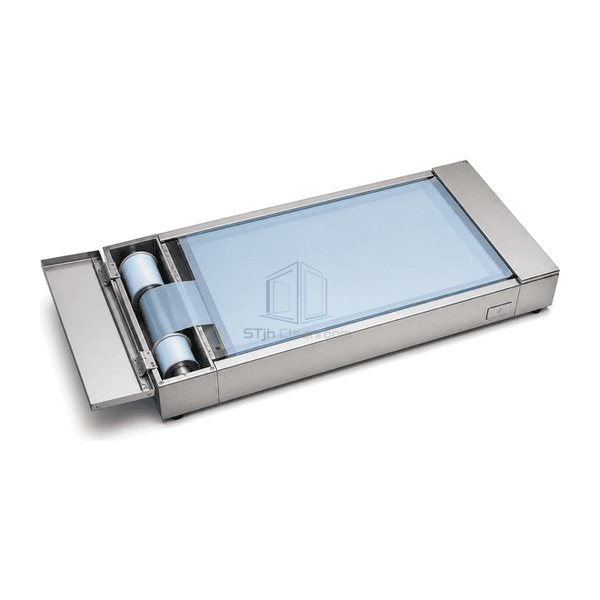

| Joint Type | Welded low-profile housing with removable film-roll cassette |
| Customization | Available based on the intended application and operating environment. |
Available Options
Film roll widthSingle-shoe or two-foot platformStep or cycle-count advanceSide guard rails
Planning a Automatic Adhesive-Film Sole Cleaner specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
