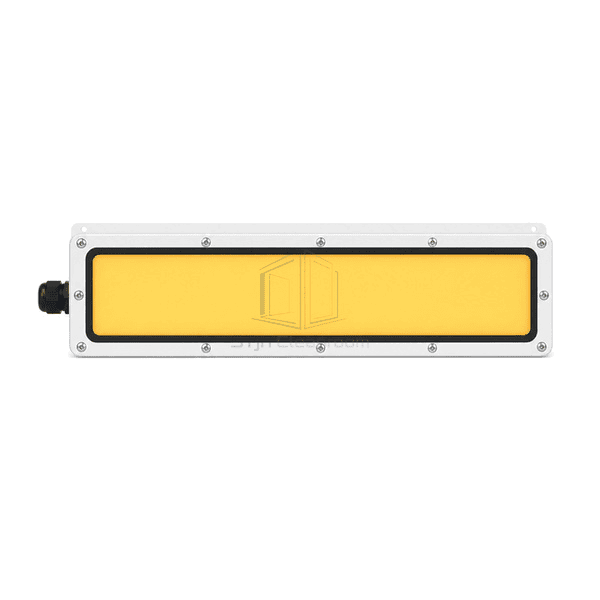

Narrow-spectrum amber cleanroom luminaire illuminated in warm amber

Cleanroom Lighting and Electrical Equipment

Amber Cleanroom Light

A sealed cleanroom fixture using native amber LEDs to limit short-wavelength exposure in photosensitive process areas.

Native Amber LED Source
Low Blue-Light Output
Sealed Cleanroom Housing
Distinct Yellow Visual Cue

Request a Quote Browse Products

Product Introduction

This luminaire replaces a white phosphor source and colored sleeve with LEDs that emit principally in the amber region. The controlled spectrum is used where photoresists, films or light-sensitive materials must be handled under reduced blue and near-UV energy. The fixture retains the same gasketed white housing and smooth optical face used for general cleanroom lighting, while amber lenses or indicators clearly distinguish the circuit.

Key Features

Native amber emitters avoid relying only on a fading external filter.

The narrow spectrum reduces unwanted short-wavelength energy at the work surface.

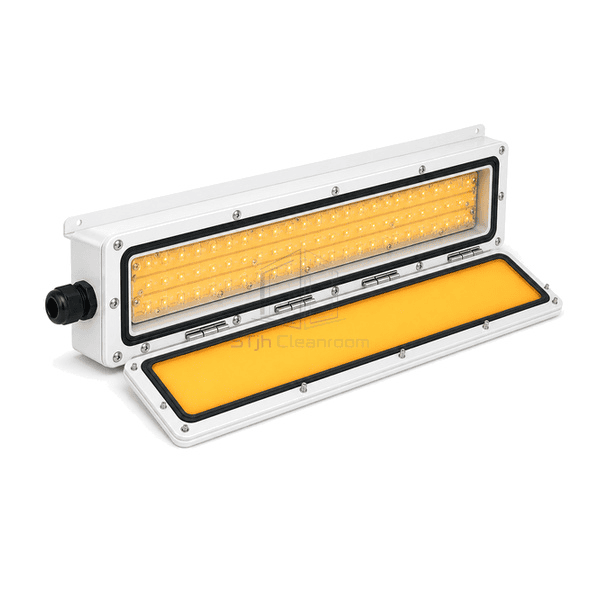

A sealed optical chamber protects LEDs and wiring from room cleaning.

Amber identification makes the protected lighting circuit visually obvious.

Dimming allows the illuminance to be matched to the sensitivity of the process.

Customer Product Concerns

A yellow-looking lamp is not necessarily spectrally suitable; emitted blue energy and filter aging must be considered separately from appearance.

A white LED behind a yellow cover still leaks short-wavelength energy.Native amber emitters minimize blue content at the source.

Colored plastic filters fade after heat and cleaning exposure.The spectral function comes from the LED source rather than only from the cover tint.

Operators accidentally switch on ordinary white lights.Distinct amber fixtures and separately identified controls differentiate the protected circuit.

Excessive intensity can still affect a highly sensitive process.Dimming and layout selection tune illuminance as well as wavelength.

Typical Applications

Photolithography yellow roomsPhotoresist handlingLight-sensitive film processingPhotosensitive chemical preparation

Technical Parameters

Typical configurable construction ranges for a narrow-spectrum amber cleanroom luminaire are listed below.

Core Material	Powder-coated steel or aluminum housing with native amber LED boards and sealed clear or amber polycarbonate optic
Panel Thickness	45-120 mm luminaire body depth
Effective Width	100-620 mm exposed fixture width
Maximum Length	Up to 1500 mm overall luminaire length
Steel Facing Thickness	0.8-1.2 mm formed steel housing where selected
Core Density	Approximately 1200 kg/m³ for the polycarbonate optical cover
Thermal Conductivity	0.20-0.22 W/(m·K) for the polycarbonate optic
Surface Finish	White cleanable exterior with amber-emitting optical face and amber circuit identification
Joint Type	Gasketed lens frame with sealed end caps or recessed ceiling flange and protected cable entry
Customization	Available based on the intended application and operating environment.

Available Options

Nominal 570 nm or 590 nm sourceRecessed, surface or linear body0-10 V or DALI dimmingAmber-only or amber/white dual circuit
