Cleanroom Air Distribution Systems
Aluminum Insulation Jacketing
A formed aluminum outer cladding that protects duct insulation from impact, weather and maintenance traffic while preserving a clean metallic finish.
- Durable Aluminum Protection
- Moisture-Barrier Backing
- Smooth or Embossed Finish
- Formed for Ducts and Fittings
Product Introduction

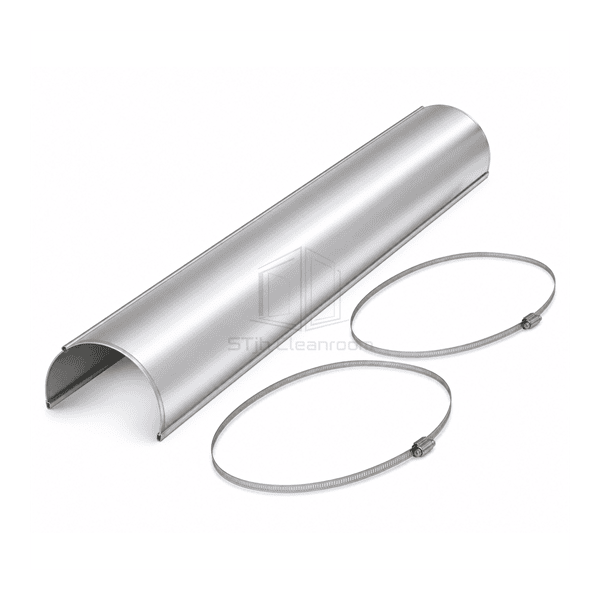

Aluminum insulation jacketing forms the outer mechanical and weather protection over insulated ductwork. Flat sheet or coil is cut and formed around rectangular ducts, round ducts, elbows and equipment casings with overlapped seams oriented to shed water. A factory-applied polyethylene moisture barrier separates the metal jacket from wet insulation and reduces galvanic contact. Smooth, stucco-embossed or corrugated finishes are available, and banding or sealed sheet-metal fasteners secure the cladding without crushing the insulation beneath.
Key Features

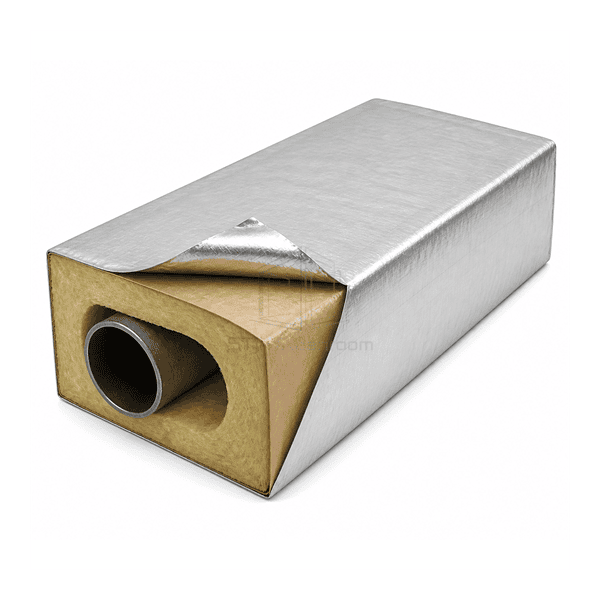

Polyfilm backing separates the jacket from retained moisture and dissimilar metal surfaces.
Stucco embossing disguises minor handling marks and increases sheet stiffness.
Purpose-formed closures maintain coverage around elbows, access doors and irregular fittings.
Customer Product Concerns
Protective cladding must keep water out without puncturing the vapor barrier or compressing the insulation it is intended to protect.
Maintenance activity tears exposed foil-faced insulation.Rigid aluminum cladding provides a sacrificial impact-resistant outer surface.
Rain enters upward-facing laps on an outdoor duct.Shingle-oriented overlaps and sealed top seams direct water away from the insulation.
Condensate trapped against bare aluminum causes corrosion staining.A factory-applied polyfilm moisture barrier isolates the underside of the jacket.
Tight bands compress insulation and create thermal bridges.Correctly spaced banding secures the jacket while preserving the designed insulation thickness.
Typical Applications
Outdoor insulated air ductsMechanical-room ductworkCleanroom ceiling service zonesProcess exhaust insulation protectionInsulated plenums and fittings
Technical Parameters
Typical material ranges for aluminum jacketing used over HVAC duct insulation are shown below.
| Core Material | 3003 or 3105 aluminum alloy sheet with optional polyfilm moisture barrier |
|---|---|
| Panel Thickness | 0.4–1.0 mm aluminum cladding |

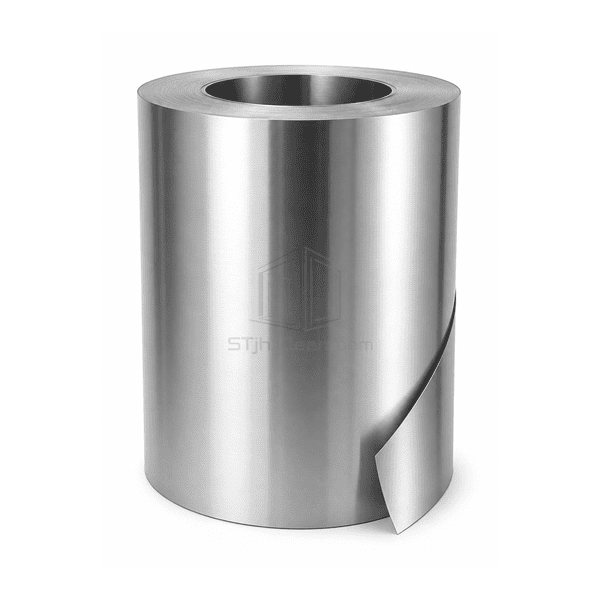

| Effective Width | 1000–1200 mm coil or sheet width |
| Maximum Length | 3000 mm sheet length or continuous coil supply |
| Steel Facing Thickness | 0.4–1.0 mm aluminum jacket in place of steel facing |
| Core Density | Approximately 2700 kg/m³ solid aluminum |
| Thermal Conductivity | Approximately 160–200 W/(m·K) for aluminum jacketing alloy |
| Surface Finish | Smooth, stucco-embossed or corrugated mill-finish aluminum |

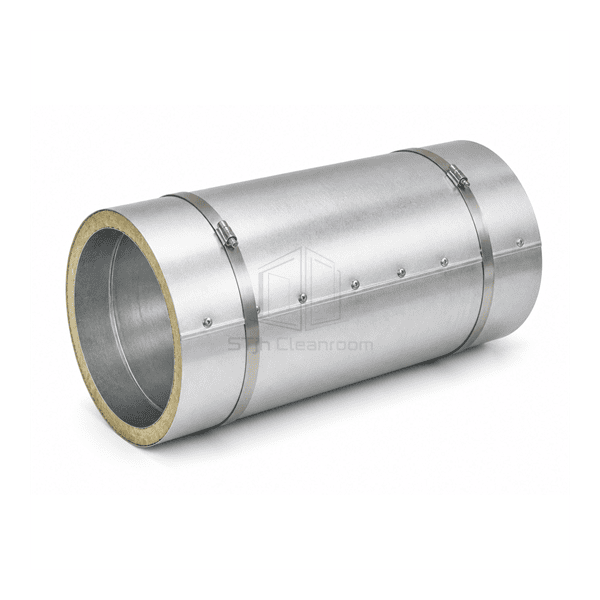

| Joint Type | Overlapped weather-shedding seam with bands, rivets or sealed sheet-metal screws |
| Customization | Available based on the intended application and operating environment. |
Available Options
Smooth or stucco-embossed finishPolyfilm moisture-barrier backingAluminum or stainless bandingPreformed elbow and access-door covers
Planning a Aluminum Insulation Jacketing specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
