Cleanroom Equipment Spare Parts
Air Shower Magnetic Lock

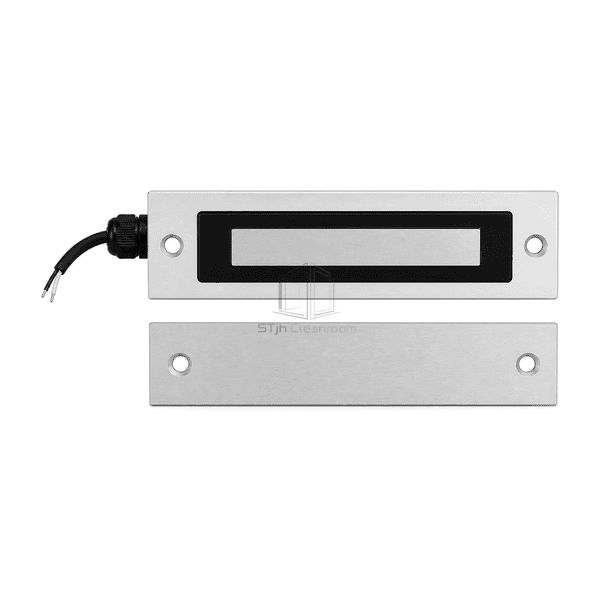

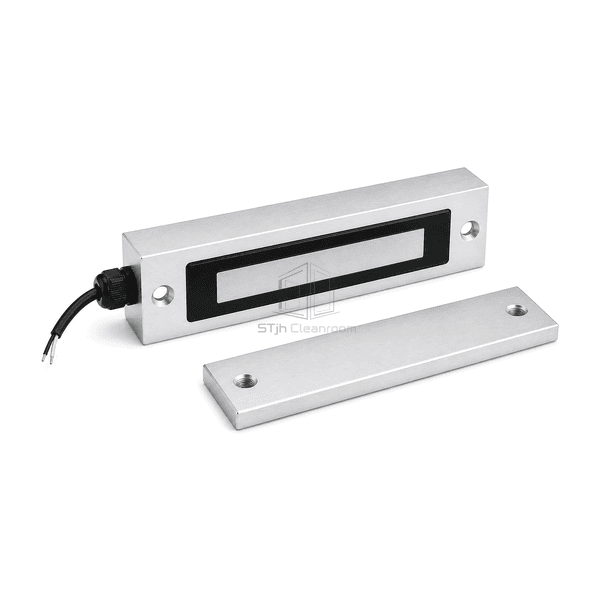

A compact electromagnetic lock and armature set that holds an air shower door closed during controlled entry and purge sequences.
- Fail-Safe Magnetic Holding
- Matched Armature Plate
- Compact Surface Mounting
- Interlock-Control Compatible
Product Introduction
The air shower magnetic lock uses an energized electromagnetic body and a matching armature plate to hold a swing door during the controlled shower sequence. With no projecting latch bolt, the paired surfaces release cleanly when power is removed and suit frequent automated cycling. The aluminum housings provide a compact, corrosion-resistant assembly for mounting above or beside the door. Replacement work should match holding requirement, supply voltage, available mounting space, cable routing and controller logic.
Key Features
Fail-safe operation releases the door when lock power is removed.
Compact rectangular components fit narrow air shower headers and frames.
A protected lead connection supports integration with the door-interlock controller.
Customer Product Concerns
Stable magnetic holding depends on correct plate alignment, electrical compatibility and full face contact when the door closes.
A misaligned armature plate reduces the usable magnetic holding force.Matched component dimensions and adjustable mounting permit full pole-face contact.
An incompatible supply voltage can overheat or under-energize the coil.The lock coil is selected for the existing controller output and wiring system.
A bulky latch conflicts with the narrow cleanroom door frame.Low-profile surface-mounted magnet and plate components use limited header space.

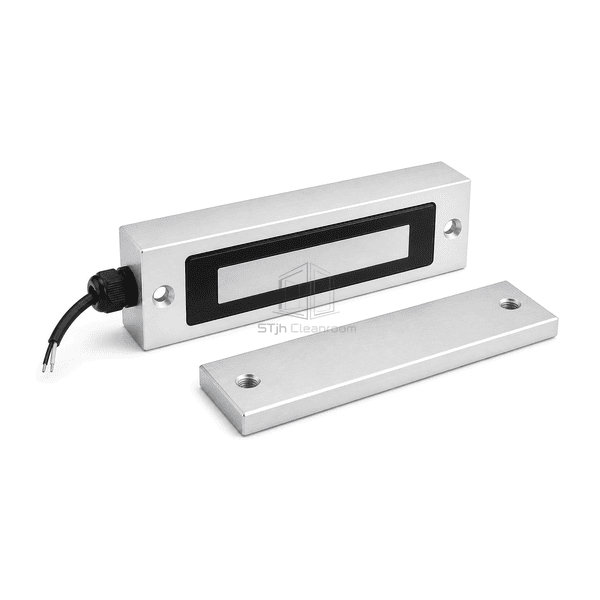

Exposed cable entry is vulnerable during cleaning and maintenance.A dedicated gland protects the lead where it exits the magnet housing.
Typical Applications
Personnel air shower door interlocksMaterial air shower access doorsCleanroom vestibule sequencingAir shower lock replacement and refurbishment
Technical Parameters
Typical construction and dimensional ranges for compact air shower electromagnetic lock sets are shown below.
| Core Material | Laminated electromagnetic steel core with copper coil and steel armature plate |
|---|---|

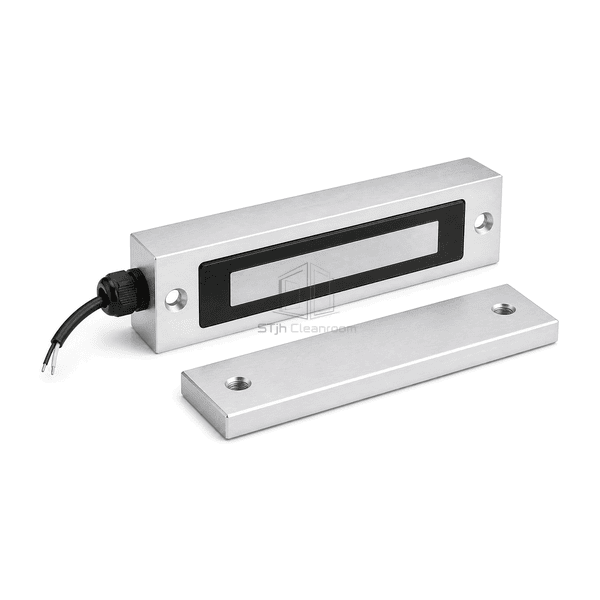

| Panel Thickness | 25-50 mm nominal magnet-body depth |
| Effective Width | 35-70 mm nominal magnet-body face width |
| Maximum Length | Up to 320 mm overall magnet-body length |
| Steel Facing Thickness | 8-15 mm nominal armature-plate thickness |
| Core Density | 7800-7850 kg/m³ for magnetic steel components |
| Thermal Conductivity | 45-60 W/(m·K) for steel core and armature |
| Surface Finish | Satin silver anodized housing with black magnetic pole surround |
| Joint Type | Paired surface-mounted magnet and armature with gland-protected wired connection |
| Customization | Available based on the intended application and operating environment. |
Available Options
Matched DC supply voltageAlternative body lengthsDoor-status signal optionCustom mounting brackets and lead length
Planning a Air Shower Magnetic Lock specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
