Cleanroom Utility Systems
WFI Distribution Loop
An insulated hygienic circulation skid for maintaining WFI flow and temperature through a hot storage-and-distribution network.
- Insulated continuous hot circulation
- Drainable low-hold-up user branches
- Integrated thermal control and sanitization interface
Product Introduction

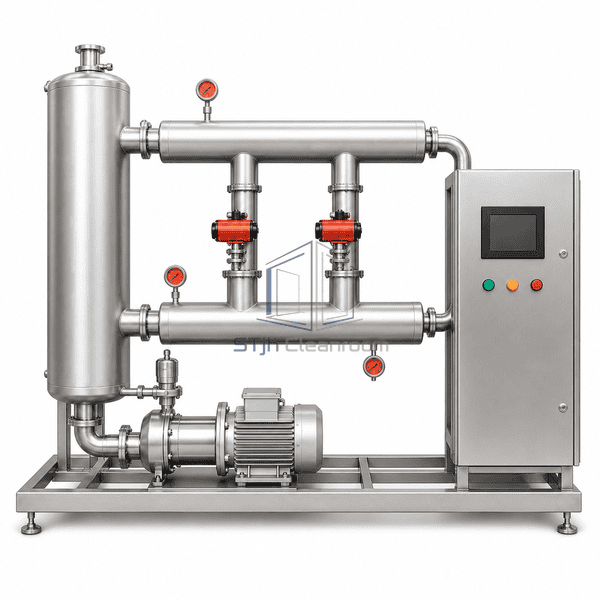

This WFI distribution module combines a hygienic circulation pump, insulated supply and return headers, thermal-control exchanger and short point-of-use branches on one open skid. Continuous return flow and measured temperature support the selected hot-storage or periodic thermal-sanitization strategy while keeping serviceable components accessible.
Key Features

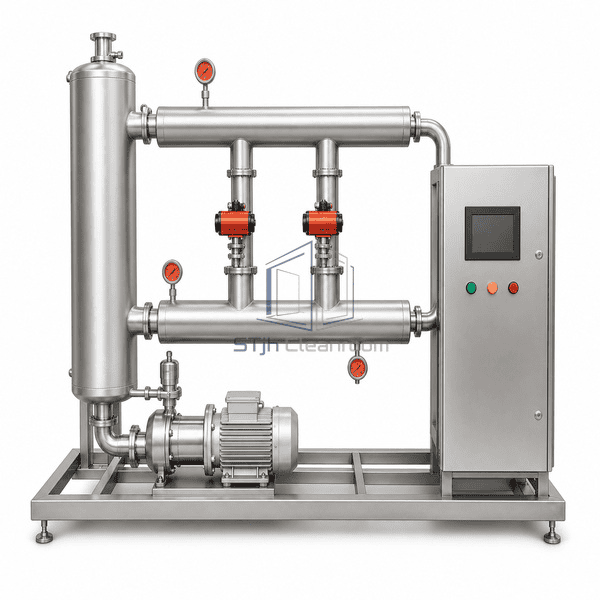

Insulated supply and return headers
Hygienic centrifugal circulation pump
Drainable point-of-use branch geometry

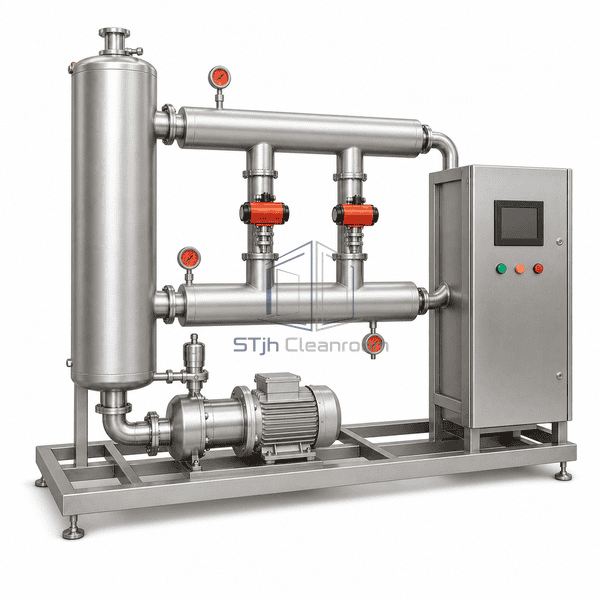

Loop heat exchanger with isolated utility circuit
Temperature, pressure and conductivity monitoring
Automated steam or hot-water control interface
Local cabinet for pump and sanitization sequences
Customer Product Concerns
A WFI network must sustain circulation and controlled temperature without creating cool pockets, long branches or difficult-to-drain utility interfaces.
Return temperature falls at remote usersSize insulation, circulation flow and loop heat exchange from the full hydraulic and heat-loss profile.

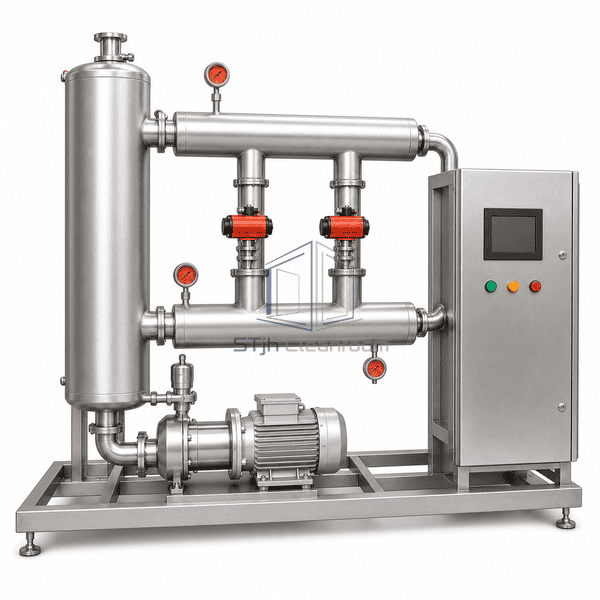

Point-of-use branches cool during standbyUse compact continuously swept or recirculating branch arrangements with drainable hygienic valves close to the main header.
Thermal sanitization is unevenSequence pump speed and heat input from measured supply and return temperatures while verifying circulation through each defined path.
Utility leakage could contact WFISelect a leak-detectable double-tube-sheet exchanger or another isolated thermal interface suited to the operating strategy.
Typical Applications
Aseptic filling facilitiesParenteral formulation suitesVaccine and biologics manufacturingSterile equipment rinse utilitiesHigh-purity compounding areas
Technical Parameters
The loop skid is configured around storage temperature, return-temperature target, distribution length, peak demand and sanitization method.
| Core Material | 316L stainless steel product-contact tubing, fittings, valve bodies, pump and exchanger surfaces |
|---|---|
| Panel Thickness | Control cabinet and skid sheet components typically 1.5–3.0 mm |
| Effective Width | Packaged hot-loop skid width typically 1200–2600 mm |
| Maximum Length | Packaged distribution module length typically up to 4500 mm |
| Steel Facing Thickness | Stainless insulation cladding and cabinet facing typically 0.8–2.0 mm |
| Core Density | 316L stainless steel density approximately 8000 kg/m³ |
| Thermal Conductivity | Typical hygienic insulation system approximately 0.035–0.045 W/(m·K) |
| Surface Finish | Polished or electropolished wetted surfaces with cleanable satin stainless insulation cladding |
| Joint Type | Orbital-welded main tubing with drainable sanitary service connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Duty and standby pumpsDouble-tube-sheet loop heat exchangerSteam or hot-water heating interfaceContinuously swept point-of-use subloopsReturn conductivity and TOC monitoringAutomated thermal-sanitization sequenceInsulated valve jacketsRemote data and alarm integration
Planning a WFI Distribution Loop specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
