UV Lamp Timer Controller

A dedicated wall controller that sequences delayed start, timed UV-C operation, warnings and safety interlock inputs from one sealed panel.

Keyed Enable Control
Adjustable Cycle Timer
Delayed Start Warning
Door and Sensor Inputs

Request a Quote Browse Products

Product Introduction

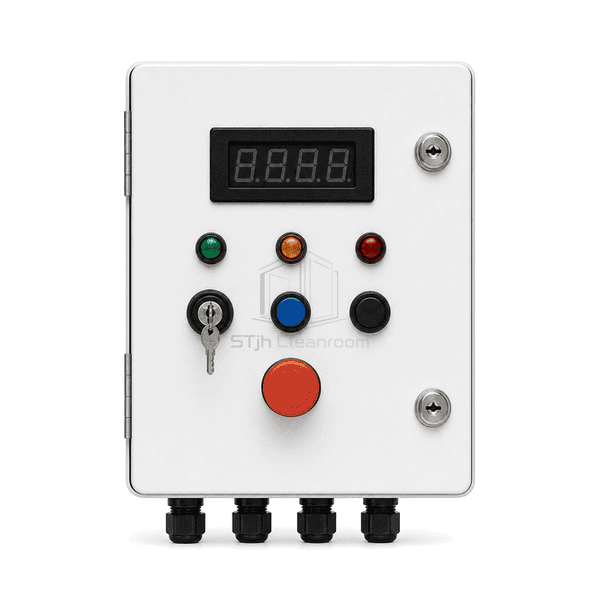

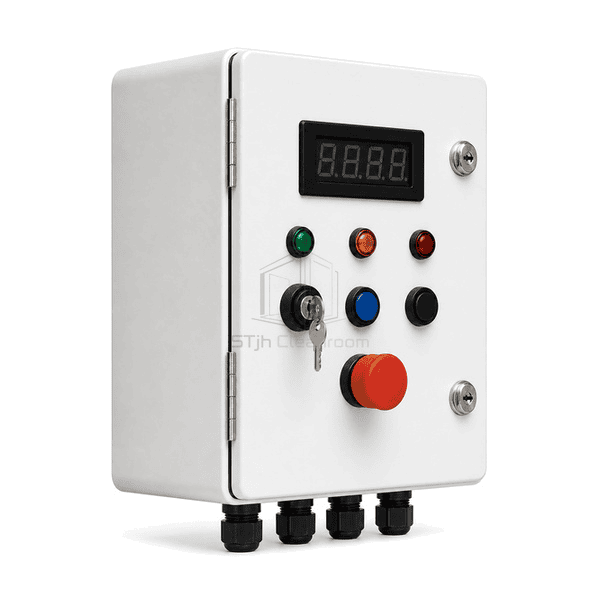

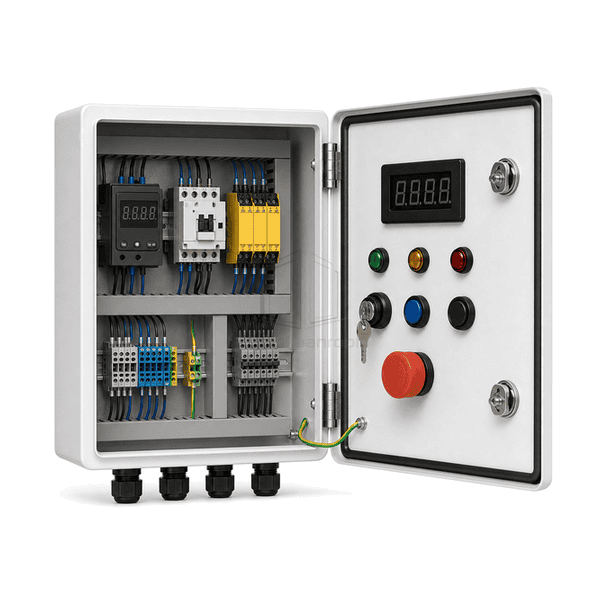

The UV-C controller separates germicidal operation from ordinary room-light switching. Its cleanable front panel carries a key switch, timer display, start/stop controls and status indicators. Inside the enclosure, a contactor or relay output switches the UV-C load while low-voltage terminals accept door contacts, occupancy sensors, warning beacons and remote emergency-stop devices.

Key Features

A keyed enable switch limits cycle initiation to authorized personnel.

The programmable delay provides a defined exit interval before lamp energization.

A digital display shows remaining treatment time and operating state.

Dedicated safety inputs interrupt the output when a monitored door opens or occupancy is detected.

Separate relay terminals operate external beacons and audible warnings.

Customer Product Concerns

A basic timer alone cannot manage warning, authorization and interruption functions required around an unattended UV-C cycle.

Anyone can start a germicidal circuit from a normal wall switch.A key-controlled enable stage restricts initiation to designated operators.

Personnel have no time to leave after pressing start.An adjustable countdown drives warnings before the power relay closes.

Opening a door does not stop an independent timer output.Hardwired safety inputs drop the UV-C contactor immediately on an interlock event.

The operator cannot see whether a cycle ended or was interrupted.Distinct display states report standby, delay, active, complete and fault conditions.

Typical Applications

Fixed UV-C room systemsPass-box germicidal circuitsDuct irradiation controlsLaboratory treatment rooms

Technical Parameters

Typical configurable construction ranges for a UV-C lamp safety timer controller are listed below.

Core Material	Powder-coated steel or stainless enclosure with programmable timer, contactor, control relays and membrane interface
Panel Thickness	90-180 mm wall enclosure depth
Effective Width	180-400 mm front-panel width
Maximum Length	Up to 500 mm overall enclosure height
Steel Facing Thickness	1.0-1.5 mm formed steel or stainless enclosure panels
Core Density	Approximately 7900-8000 kg/m³ for a stainless enclosure version
Thermal Conductivity	14-16 W/(m·K) for the stainless enclosure
Surface Finish	White powder coat or fine-brushed stainless front with black display and colored status indicators

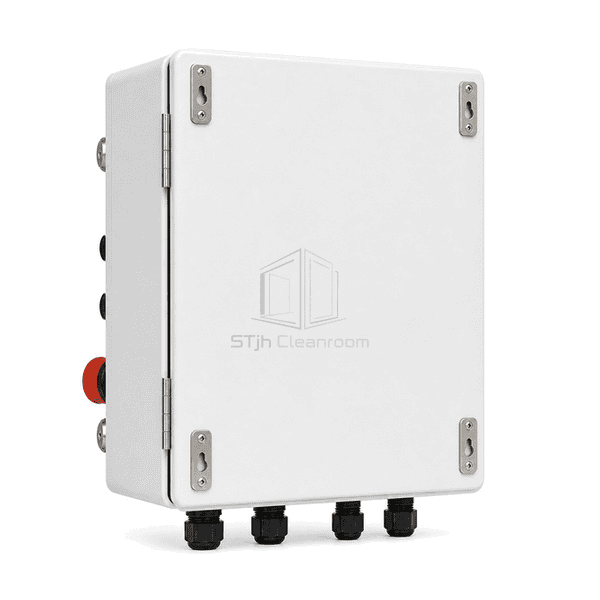

Joint Type	Gasketed enclosure door with sealed membrane controls and separated power and low-voltage terminal blocks
Customization	Available based on the intended application and operating environment.

Available Options

Wall flush or surface enclosureLocal or networked timerDoor, motion and emergency-stop inputsExternal beacon and buzzer outputs

Planning a UV Lamp Timer Controller specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
