Temperature Validation Logger

A sealed stainless wireless logger with an interchangeable precision probe for thermal validation in sterilizers, chambers and process equipment.

Sealed process-ready stainless body.
Cable-free validation logging.
Interchangeable precision probes.

Request a Quote Browse Products

Product Introduction

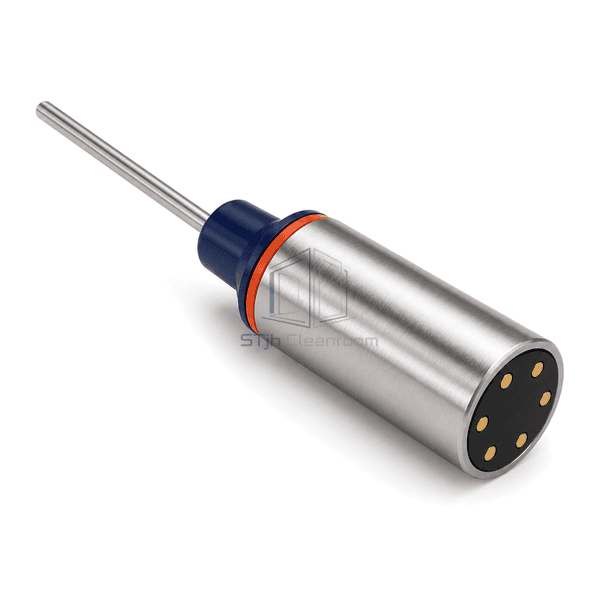

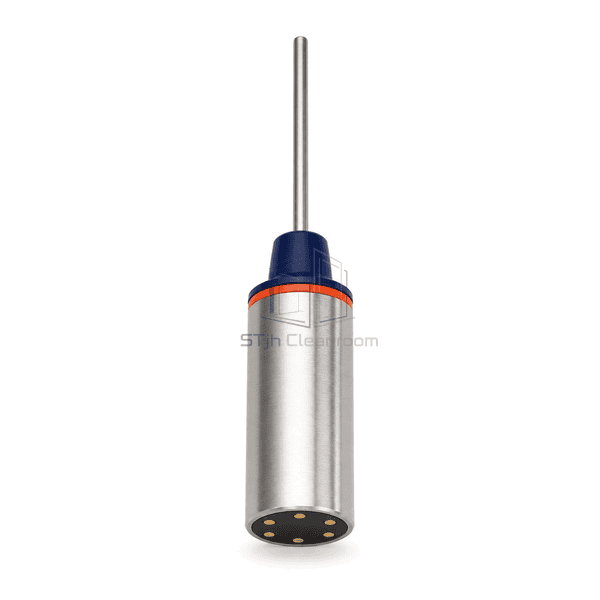

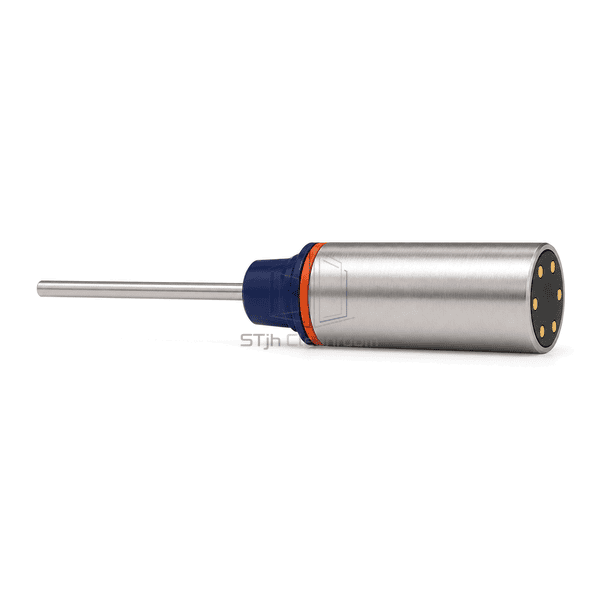

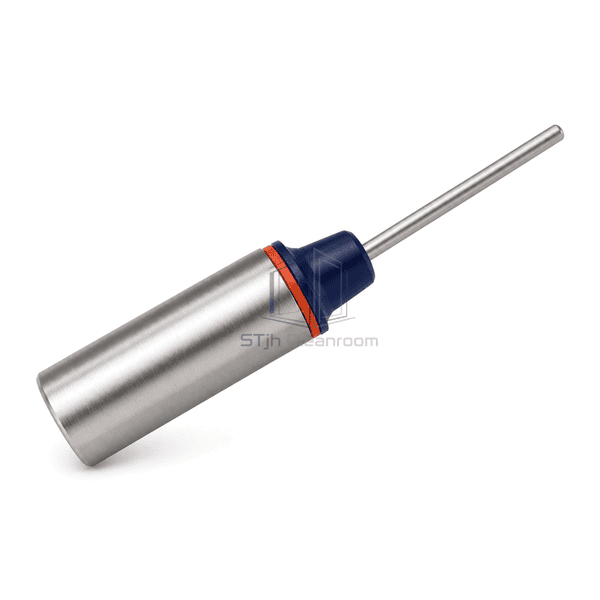

The compact cylindrical logger encloses its electronics and nonvolatile memory in a pressure-resistant 316L stainless body. A rigid low-mass temperature probe records process conditions without external cables, while a reader station programs the sampling sequence and retrieves stored measurements after the run. Interchangeable probe configurations adapt the same platform to chamber, load and penetration studies.

Key Features

Sealed stainless construction suits steam, water and thermal processes.

Internal memory preserves measurements through the complete validation cycle.

Rigid low-mass probe responds quickly at the selected measurement point.

Interchangeable sensor geometry supports different process loads.

Wireless readout avoids cable feed-throughs in closed equipment.

Multi-position reader dock accelerates setup and data collection.

Customer Product Concerns

Thermal validation inside sealed process equipment requires accurate time-temperature records from the load itself without compromising the chamber boundary or losing data under harsh conditions.

External thermocouple cables can interfere with a closed process chamber.The self-contained logger records internally without a cable feed-through.

A bulky sensor can influence the temperature of a small load.The slim stainless probe minimizes thermal mass at the measurement point.

Data must survive pressure, moisture and temperature exposure.Sealed electronics and nonvolatile memory protect the recorded cycle data.

Different loads require different probe reach and geometry.Interchangeable rigid and flexible sensor options adapt the logger to each study.

Typical Applications

Steam sterilizer validationDepyrogenation and dry-heat studiesWasher-disinfector mappingCold chamber qualificationProcess vessel temperature profiling

Technical Parameters

Representative wireless validation-logger construction is listed below; probe length, sensor geometry and thermal protection can be configured for the process range.

Core Material	316L stainless logger body, precision temperature sensor, sealed electronics and nonvolatile memory
Panel Thickness	Typically 1.0-2.0 mm for cylindrical pressure-resistant housing wall
Effective Width	Approximately 20-40 mm logger-body diameter
Maximum Length	Approximately 120-300 mm including rigid temperature probe
Steel Facing Thickness	Typically 0.5-1.0 mm for stainless probe sheath
Core Density	Approximately 7950-8000 kg/m³ for 316L stainless steel
Thermal Conductivity	Approximately 14-16 W/(m·K) for 316L stainless steel
Surface Finish	Electropolished or satin 316L stainless body with dark sealing ring and identification band
Joint Type	Threaded interchangeable sensor coupling with sealed reader-interface base
Customization	Available based on the intended application and operating environment.

Available Options

Rigid straight probesFlexible sensor leadFast-response needle probeThermal barrierMulti-position reader stationReal-time wireless module

Planning a Temperature Validation Logger specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
