Cleanroom Furniture and Stainless Steel Products
Surgical Scrub Sink
A two-station all-welded Type 304 stainless surgical scrub sink with a deep bead-blast trough, independent knee valves, thermostatic mixing and laminar-flow gooseneck spouts.
- Two independent scrub stations
- Deep bead-blast wash trough
- Positive-action knee valves
- Thermostatic mixed-water supply
Product Introduction

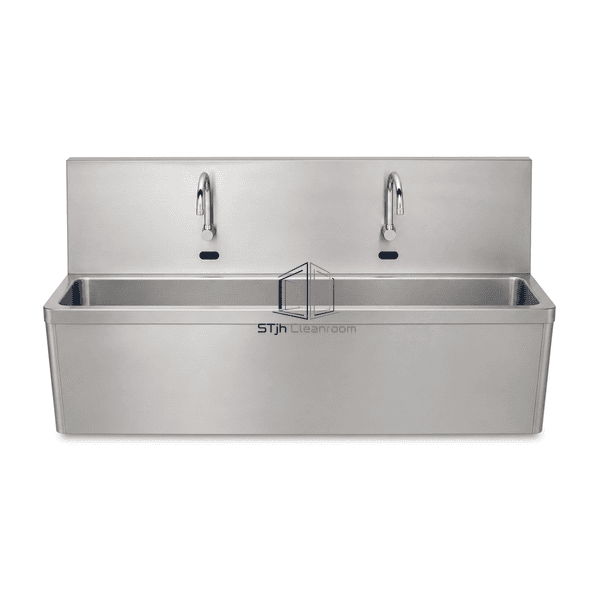

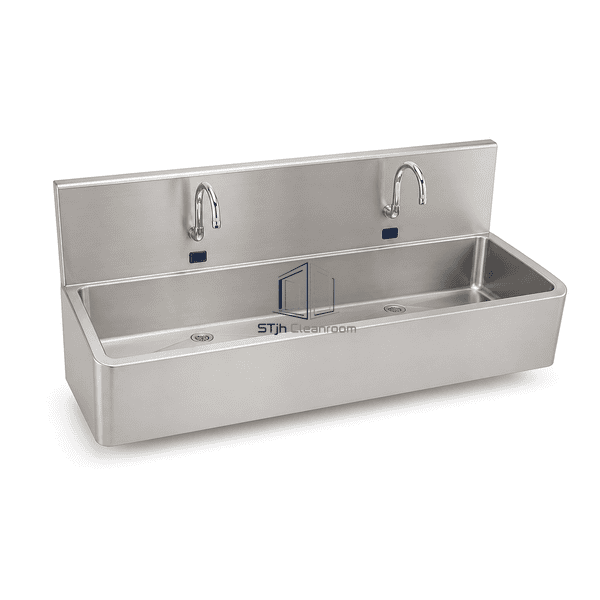

The surgical scrub sink provides two defined washing positions across a 1075 mm-wide deep trough. Each station has its own positive-action knee panel and plain-end laminar-flow gooseneck spout. A shared thermostatic mixing valve supplies controlled mixed water through two serviceable branch valves. The all-welded 16-gauge Type 304 enclosure uses a #4 satin exterior, bead-blast bowl and tall rear splash panel, with a lockable front fascia that opens to the knee linkages, branch plumbing and machined waste assembly.
Key Features
The deep bead-blast trough contains forearm washing and reduces visible glare inside the active bowl.
A thermostatic mixing assembly feeds independently serviceable positive-action branch valves.

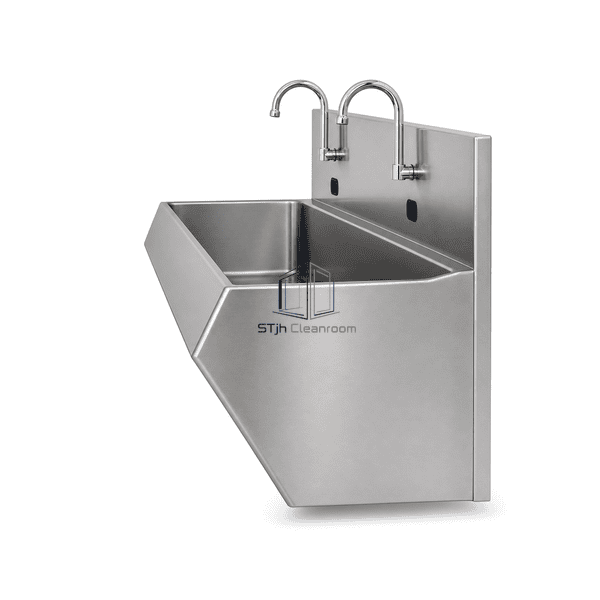

The tall backsplash and all-welded front fascia form one robust wall-mounted fixture for extended scrub movements.
Customer Product Concerns
Pre-procedure scrubbing needs enough trough length for forearms, independent hands-free controls and accessible mixing/valve service without exposing plumbing to the room.
Two users sharing one water control interrupt one another's scrub sequence.Each position has a dedicated knee panel, positive-action valve and gooseneck spout.
Shallow basins let forearm wash water rebound over the front apron.The deep continuous trough and tall rear splash panel contain the extended washing movement.
Separate hot and cold controls force hand contact or inconsistent outlet temperature.A central thermostatic mixer supplies preset mixed water to both hands-free branch valves.

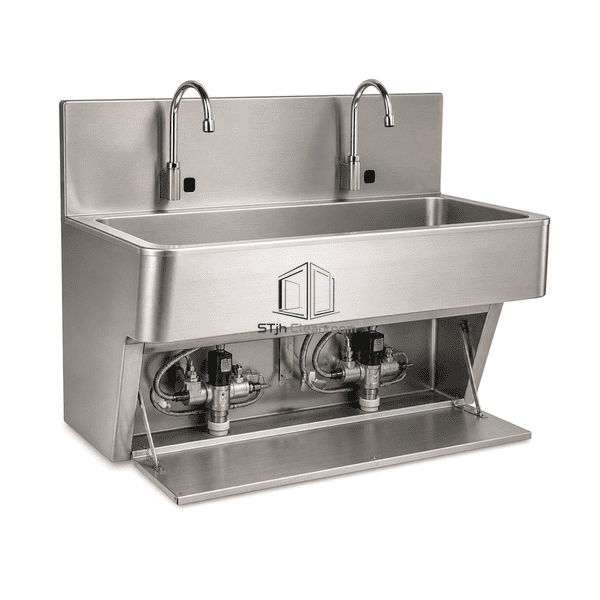

Concealed valve or drain failures require removal of the complete fixture.The lockable front fascia opens to the knee linkages, branch valves, mixer and machined waste.
Typical Applications
Operating theatre scrub areasInterventional procedure suitesSterile processing support roomsSurgical teaching facilitiesVeterinary operating preparation
Technical Parameters
Typical configurable specifications for a two-station stainless surgical scrub sink are listed below.
| Core Material | All-welded Type 304 stainless two-station trough with dual knee valves, gooseneck spouts and thermostatic mixing assembly |
|---|---|
| Panel Thickness | 1.5 mm 16-gauge trough, backsplash and access fascia |
| Effective Width | 1075 mm overall two-station working width |
| Maximum Length | 687 mm maximum overall height including deep backsplash |
| Steel Facing Thickness | 1.5 mm Type 304 stainless exposed fixture surfaces |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | #4 satin-brushed exterior with low-glare bead-blast bowl and passivated continuous welds |
| Joint Type | All-welded wall fixture with two knee-linked positive-action valves, thermostatic branch manifold and 38 mm machined waste |
| Customization | Available based on the intended application and operating environment. |
Available Options
Single- or three-station lengthInfrared activationIntegrated scrub timer displayType 316 stainless construction
Planning a Surgical Scrub Sink specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
