Cleanroom Furniture and Stainless Steel Products
Stainless Steel Workbench
A fully welded stainless workbench with a sealed sanitary top and open cleanable frame for routine processing, assembly and laboratory work.
- Fully welded hygienic frame
- 304 or 316L stainless steel
- Smooth sealed work surface
- Leveling feet or cleanroom casters
Product Introduction

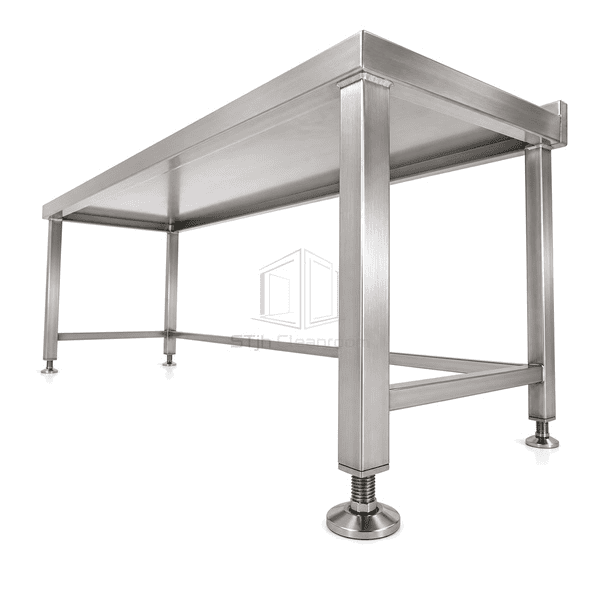

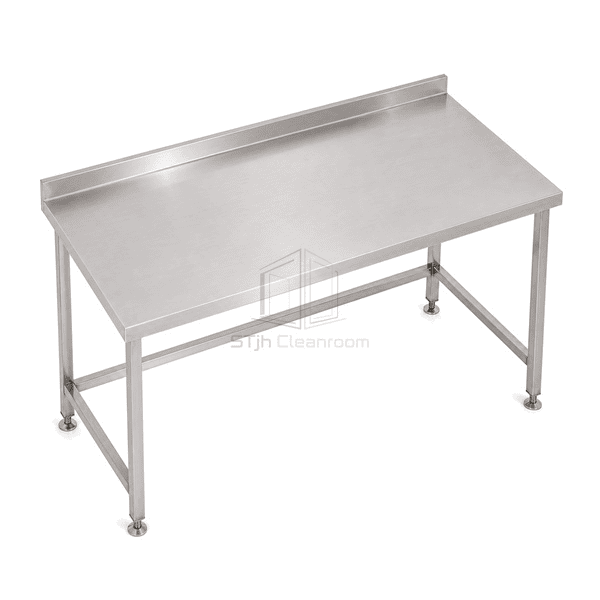

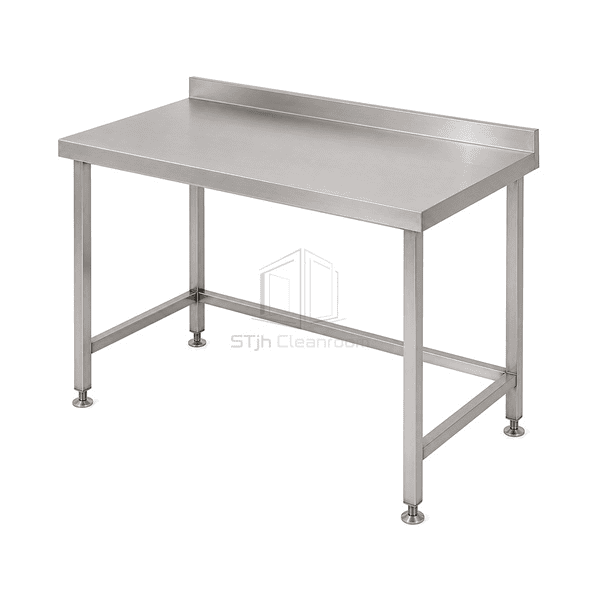

The stainless steel workbench combines a folded and reinforced worktop with a continuously welded tubular base. Ground welds, closed tube ends and radiused exposed edges reduce crevices that can retain residue. The open underbench geometry leaves the floor and frame accessible for wiping, while adjustable feet compensate for small floor variations. Solid, perforated or marine-edge tops can be selected to suit dry assembly, liquid handling or vertical-airflow areas.
Key Features
Continuous frame welds close tube intersections that would otherwise collect particles or wash residue.
Adjustable non-marking feet keep the surface level without exposing threaded crevices above the floor line.

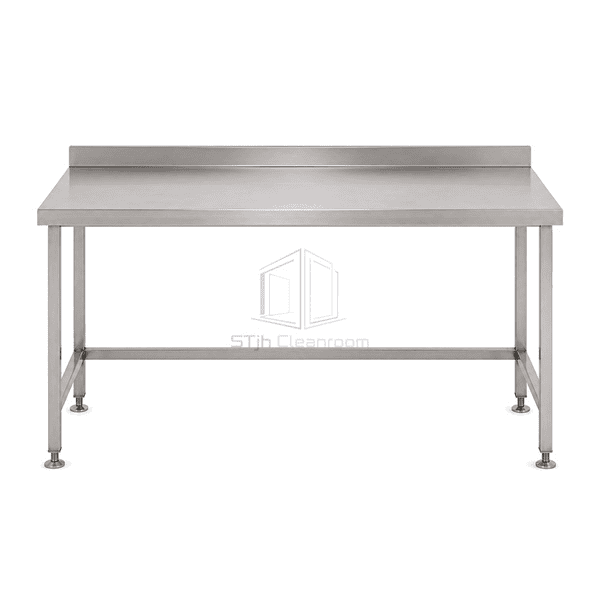

Open-base construction permits unobstructed floor cleaning and accepts mobile underbench equipment.
Customer Product Concerns
A cleanroom work surface must remain stable under equipment while exposing every surrounding surface to routine cleaning.
Bolted frames loosen and create inaccessible joints below the worktop.A continuously welded tubular base removes routine fastener joints and keeps the load path rigid.
Open sheet edges and rough welds retain wiping fibres and process residue.Folded edges and polished welds provide smooth transitions around the entire bench.
Uneven floors make precision fixtures rock during use.Individually adjustable cleanroom feet level the bench at all four corners.
Fixed lower bracing obstructs floor sanitation and mobile equipment.An open or three-sided base preserves cleaning access and operator knee clearance.
Typical Applications
Pharmaceutical component preparationMedical-device assemblyCleanroom laboratory workSterile packaging supportElectronics inspection
Technical Parameters
Typical configurable specifications for a stainless steel cleanroom workbench are listed below.
| Core Material | Solid Type 304 stainless steel; Type 316L optional for aggressive cleaning environments |
|---|---|
| Panel Thickness | 1.2–2.0 mm formed worktop skin with reinforced underside |
| Effective Width | 600–900 mm work surface depth |
| Maximum Length | 2400 mm |
| Steel Facing Thickness | 1.2–2.0 mm stainless steel |
| Core Density | 7900–8000 kg/m³ solid stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for austenitic stainless steel |
| Surface Finish | Brushed No. 4 or electropolished sanitary finish with ground welds |
| Joint Type | Continuous welded tube frame with folded sealed worktop edges |
| Customization | Available based on the intended application and operating environment. |
Available Options
Solid or perforated worktopRear backsplash or marine edgeRemovable undershelfLocking cleanroom casters
Planning a Stainless Steel Workbench specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
