Type 316L cleanroom tool washing sink with twin bowls and drainboard

Cleanroom Furniture and Stainless Steel Products

Stainless Steel Washing Sink

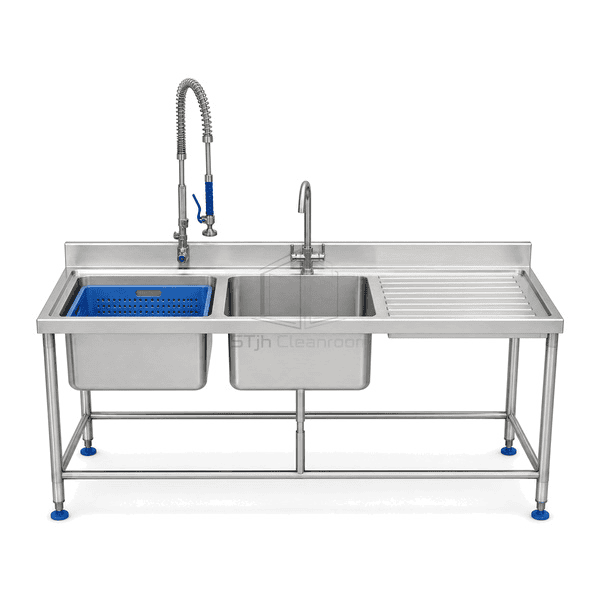

A freestanding Type 316L manual tool-washing station with two deep coved bowls, a sloped right drainboard, pre-rinse spray, perforated insert and adjustable stainless frame.

Two-stage wash and rinse bowls
Sloped right drainboard
Flexible pre-rinse spray
Type 316L wetted surfaces

Request a Quote Browse Products

Product Introduction

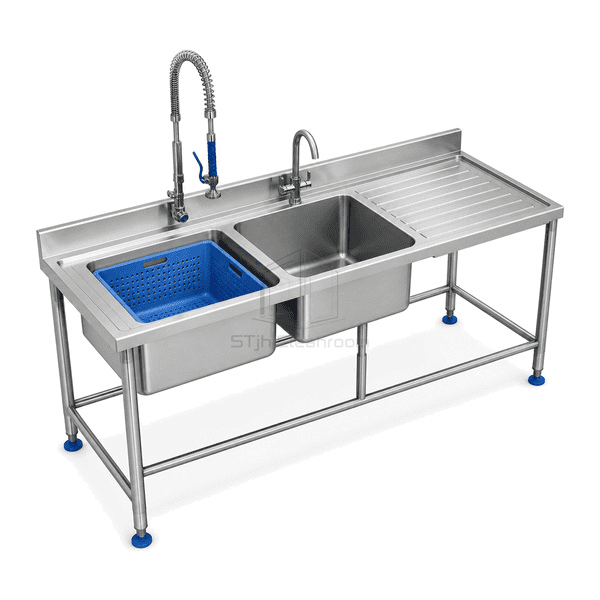

This stainless steel washing sink separates detergent washing and final rinsing across two 500 mm-square coved bowls. A flexible pre-rinse hose reaches both compartments, and a removable blue perforated insert supports small change parts above the left bowl waste. The right-hand drainboard is cross-broken toward the rinse bowl so washed tools can drip without pooling on a flat work surface. Type 316L wetted surfaces, a 100 mm rear upstand and open tubular underframe suit repeated manual cleaning of format parts and small process containers.

Key Features

Independent wash and rinse bowls keep detergent residue away from the final rinse stage.

A blue removable perforated insert supports small parts above the drain and prevents direct impact on the bowl base.

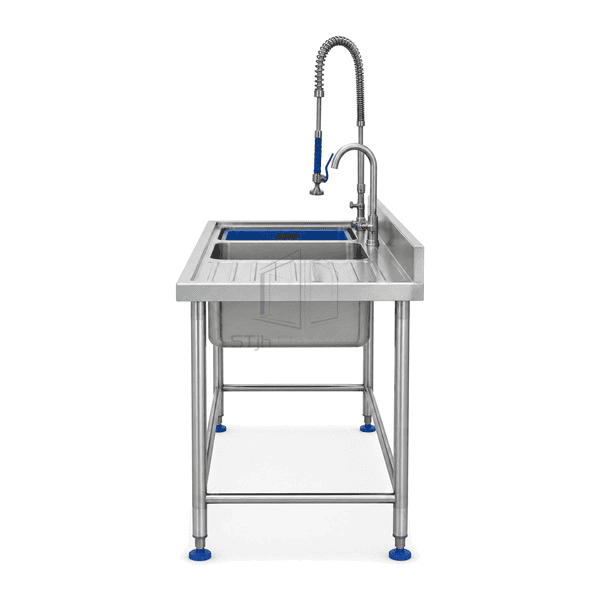

The right drainboard uses formed drainage ribs and a deliberate fall back to the adjacent bowl.

An open stainless tubular frame leaves traps, valves and hose connections visible for cleaning and service.

Customer Product Concerns

Manual process-part cleaning needs distinct wash and rinse stages, a controlled drip area and enough bowl depth for awkward components without hiding wet plumbing inside a cabinet.

Using one bowl for detergent and final rinse carries residue back onto cleaned parts.Two physically separate coved bowls support defined wash and rinse steps.

Small tooling strikes the waste fitting or blocks the outlet during washing.The removable perforated insert holds parts above the bowl floor and strainer.

Freshly rinsed components leave standing water across a level worktop.The ribbed drainboard is cross-broken toward the rinse compartment.

Closed base cabinets conceal leaking hose, mixer and drain connections.The open tubular frame keeps all wet services visible and directly accessible.

Typical Applications

Pharmaceutical change-part washingBiotechnology process-tool rinsingClean packaging format-part cleaningLaboratory container wash areasHigh-care food tooling stations

Technical Parameters

Typical configurable specifications for a two-bowl cleanroom tool washing sink are listed below.

Core Material	Type 316L stainless twin coved bowls and drainboard with blue perforated polymer insert and Type 304 tubular frame
Panel Thickness	2.0 mm 14-gauge welded bowl and drainboard assembly
Effective Width	1600 mm overall two-bowl and drainboard working width
Maximum Length	750 mm maximum front-to-back worktop depth
Steel Facing Thickness	2.0 mm Type 316L wetted surfaces; 1.5 mm Type 304 frame components
Core Density	7950–8050 kg/m³ for Type 316L stainless steel
Thermal Conductivity	13–16 W/(m·K) for Type 316L stainless steel
Surface Finish	Satin-brushed exterior, smooth coved bowls, passivated welds and blue removable perforated insert
Joint Type	Fully welded twin-bowl top with sloped drainboard, 100 mm rear upstand, 50 mm wastes and adjustable tubular-leg sockets
Customization	Available based on the intended application and operating environment.

Available Options

Left-hand drainboardIntegrated drying rackType 316L underframeHot-water spray gun
