Cleanroom Furniture and Stainless Steel Products
Stainless Steel Drain Table

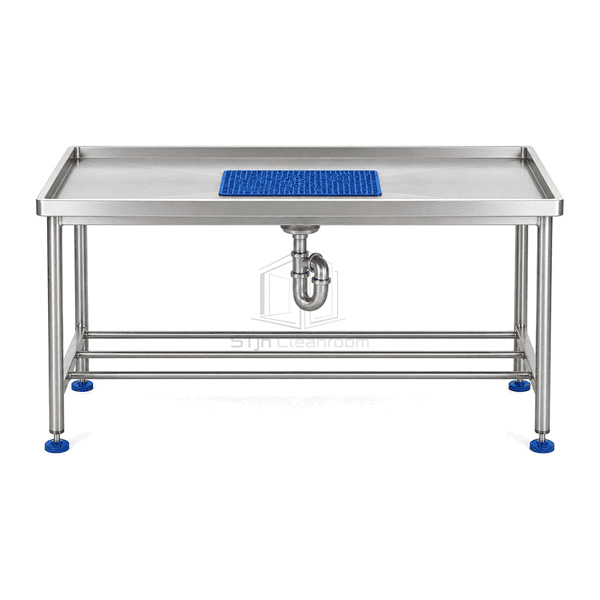

A Type 304 stainless wet-work table with a shallow dished top, central waste, removable blue mesh screen, raised marine edge and adjustable open tubular frame.
- Shallow dished wet-work top
- Central 50 mm waste
- Removable blue mesh screen
- Raised marine perimeter edge
Product Introduction

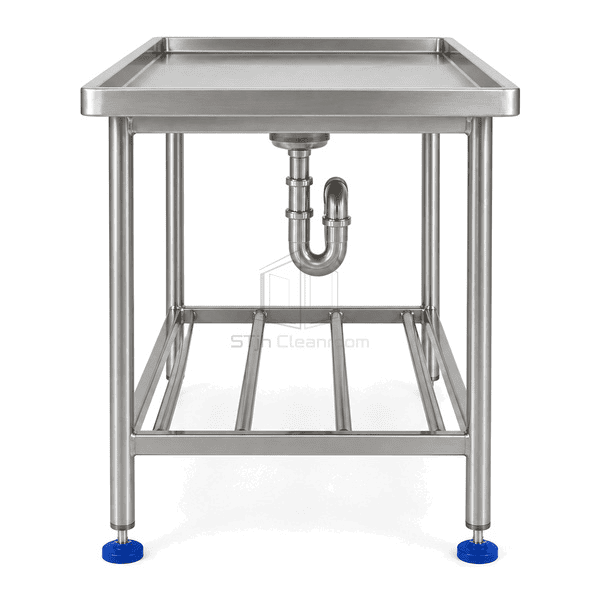

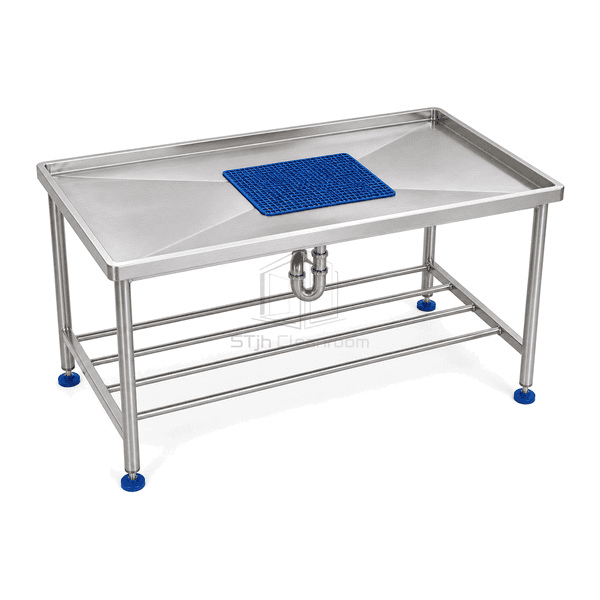

The stainless steel drain table provides a large wet-working surface for parts that must drain without sitting inside a sink bowl. Its Type 304 top is cross-broken from four sides toward a central 50 mm waste, with a raised marine edge retaining incidental liquid. A removable blue polymer mesh screen covers the immediate drain zone while allowing tools to rest above runoff. The welded open frame uses adjustable stainless feet and a low three-bar drying shelf, leaving the waste trap visible beneath the top.
Key Features
The raised marine edge contains incidental liquid without creating a deep lifting obstruction around the table.

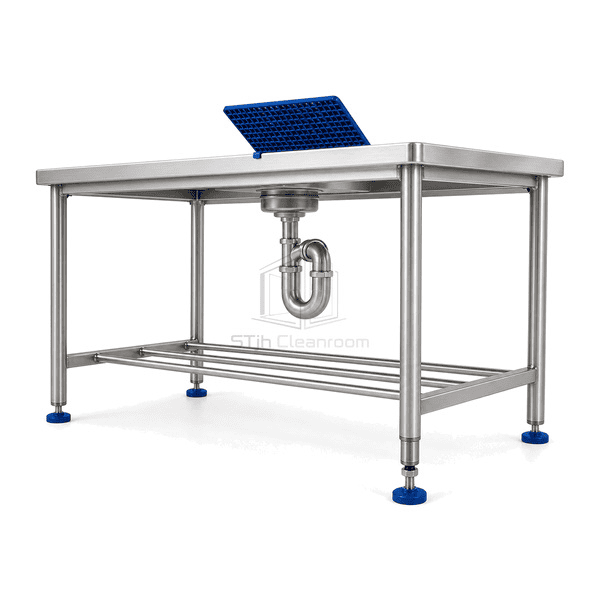

A removable blue mesh screen keeps parts above the waste and provides tool-free access to the strainer.
The open underframe exposes the trap and carries a low bar shelf that does not form a solid dust-catching surface.
Customer Product Concerns
Wet parts need a large stable landing area that drains deliberately without the lifting depth of a sink or the standing water of a flat table.
A flat stainless worktop leaves puddles beneath rinsed components.The four-way dished surface continuously falls toward the center waste.
Small parts can cover the strainer and stop drainage.The raised blue mesh screen bridges the outlet while maintaining open flow paths.
Runoff reaches the floor when an item displaces water across an unbounded edge.The formed marine perimeter retains transient liquid on the draining surface.
An enclosed base hides a blocked trap and creates inaccessible wet surfaces.The open tubular frame leaves the complete waste and cleanout visible.
Typical Applications
Cleanroom wet parts inspectionPharmaceutical component drainingBiotechnology utensil dryingControlled washroom transfer pointsMedical-device rinse staging
Technical Parameters
Typical configurable specifications for a stainless cleanroom drain table are listed below.
| Core Material | Type 304 stainless cross-broken drain top and tubular frame with removable blue polypropylene mesh screen |
|---|---|
| Panel Thickness | 1.5 mm 16-gauge dished top with reinforced underside |
| Effective Width | 1500 mm overall wet-work width |
| Maximum Length | 750 mm maximum front-to-back table depth |
| Steel Facing Thickness | 1.5 mm Type 304 stainless top; 1.2 mm tubular frame wall |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–17 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Satin-brushed drain top, passivated welds, blue removable mesh and brushed tubular frame |
| Joint Type | Cross-broken top with welded marine edge, central 50 mm basket waste, open trap and adjustable leg sockets |
| Customization | Available based on the intended application and operating environment. |
Available Options
Type 316 stainless topMobile caster frameSolid or multi-bar undershelfSide-mounted hose bracket
Planning a Stainless Steel Drain Table specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
