Cleanroom Material Handling and Storage
Stainless Steel Cleanroom Ladder

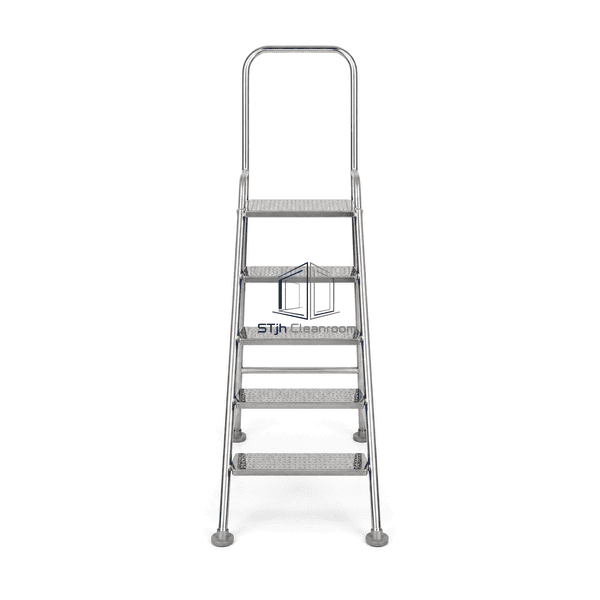

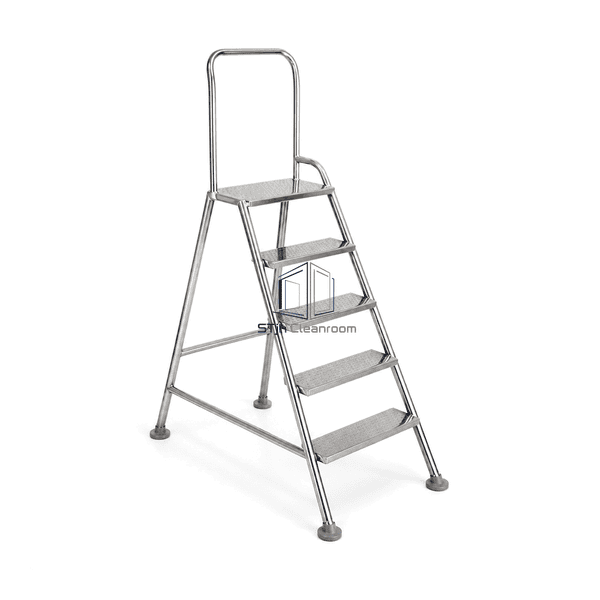

A freestanding stainless steel cleanroom ladder with perforated anti-slip treads, an elevated platform, high handrail and non-marking stabilizing feet.
- Fully stainless frame withstands routine controlled-area cleaning
- Perforated treads reduce horizontal particle-collection surfaces
- High handrail and stable A-frame support secure access
Product Introduction
This cleanroom ladder uses a welded stainless A-frame, four perforated access treads and a full standing platform for maintenance access without painted or shedding structural surfaces. A high tubular handrail provides an upper contact point, while wide tread pans and non-marking feet support stable positioning. Open geometry makes the frame accessible for wipe-down and visual inspection.
Key Features
Perforated tread surfaces encourage airflow and shed loose debris.
Four broad treads provide progressive access to the top platform.
High U-shaped handrail supports entry, exit and platform stance.
Non-marking feet isolate metal legs from finished cleanroom floors.
Customer Product Concerns
Ordinary painted ladders can shed coatings, trap residue in joints and mark controlled-area floors, while narrow rungs and low handholds make repeated access uncomfortable.
Shedding surface finishesUnpainted stainless construction eliminates flaking paint from the frame.
Difficult tread cleaningPerforated pans expose both sides for inspection and wipe-down.
Unstable elevated accessThe A-frame footprint, rear braces and non-marking feet provide a stable base.
Limited hand supportThe extended U-shaped rail remains accessible above the platform.
Typical Applications
Filter replacement, equipment inspection, elevated cleaning, storage access and maintenance work in pharmaceutical, biotechnology, medical-device, electronics and laboratory clean areas.
Technical Parameters

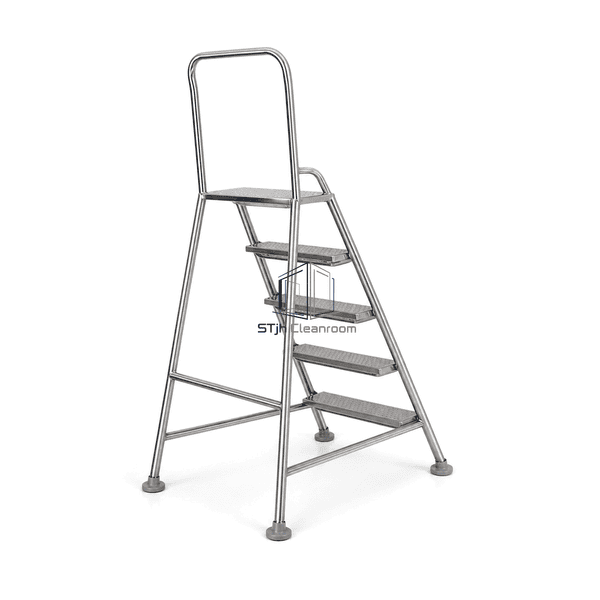

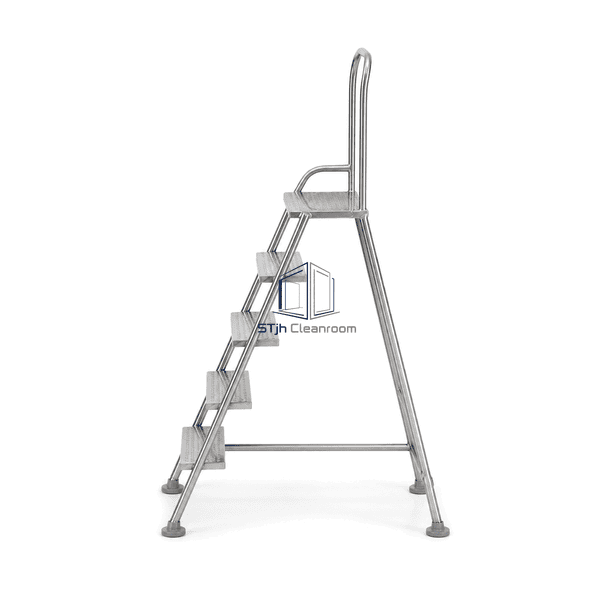

The front climbing rails carry four evenly spaced perforated tread pans below a perforated standing platform. Rear support rails and cross-bracing stabilize the freestanding footprint. Frame grade, tread width, platform height, surface finish and foot material are selected for cleaning chemistry, operator footwear and access height. The final duty rating must be confirmed for the supplied configuration.
| Core Material | 304 or 316L stainless steel tubular frame and perforated treads |
|---|---|
| Panel Thickness | 1.5–3.0 mm tread and platform panels |
| Effective Width | 450–750 mm usable climbing width |
| Maximum Length | Up to 2400 mm overall ladder height |
| Steel Facing Thickness | 1.5–2.5 mm exposed stainless tread surfaces |
| Core Density | 8000 kg/m³ nominal stainless steel density |
| Thermal Conductivity | Approximately 14.6–16.2 W/(m·K) at room temperature |
| Surface Finish | Fine-brushed, mechanically polished or electropolished stainless steel |
| Joint Type | Continuously welded tubular A-frame with fixed perforated treads and non-marking feet |
| Customization | Available based on the intended application and operating environment. |
Available Options
304 or 316L stainless steel, alternative tread counts, wider platform, electropolished finish, conductive or non-marking feet, grounding provision, folding configuration and application-specific handrail geometry.
Planning a Stainless Steel Cleanroom Ladder specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
