Cleanroom Flooring Systems
Stainless Steel Cleanroom Floor Movement Joint

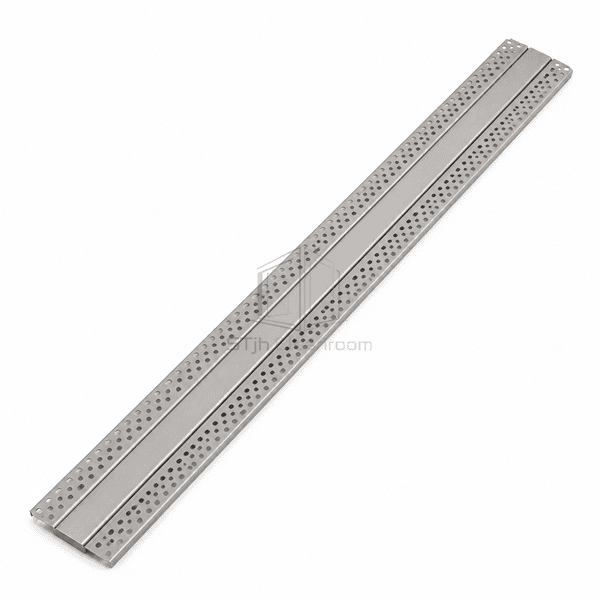

A flush AISI 304 stainless steel movement profile that protects adjacent floor edges while accommodating controlled expansion and compression at substrate joints.
- Controlled Joint Movement
- Flush Hygienic Surface
- Protected Flooring Edges
- 2.5 m Modular Length
Product Introduction

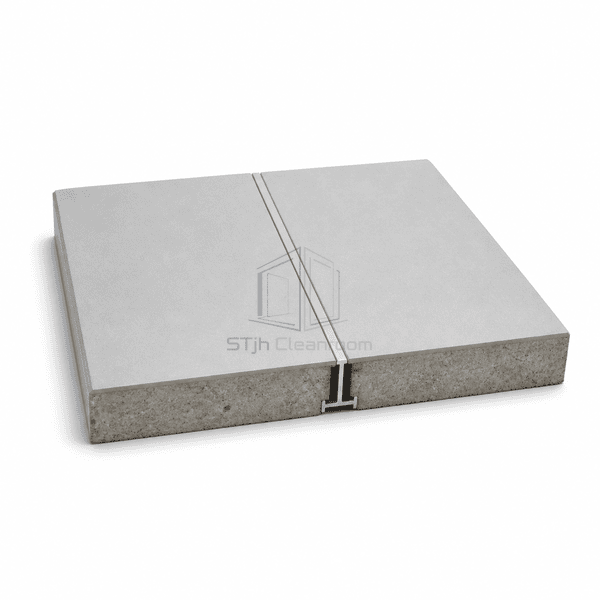

The stainless steel cleanroom floor movement joint is aligned directly above a structural or screed movement line. Perforated anchoring legs are bedded beneath the adjacent floor finish, leaving a narrow compression zone flush with the walking surface. The AISI 304 stainless steel edges shield brittle floor margins from cart wheels and concentrated point contact while the central geometry accepts repeated lateral movement. Several installed depths allow the same visible joint concept to coordinate with different tile or resin build-ups.
Key Features

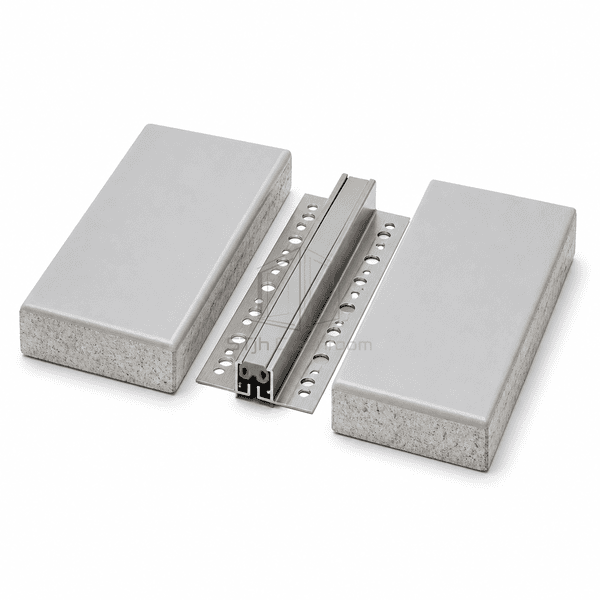

Perforated stainless steel anchoring legs transfer traffic loads into the surrounding adhesive bed.

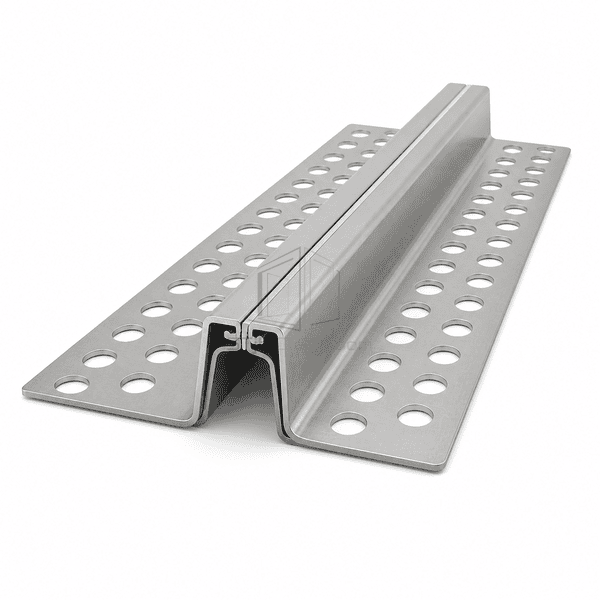

The central compression zone absorbs lateral expansion and contraction without pressing directly on finished floor edges.
Multiple profile depths align the top surface with thin coatings, terrazzo or thicker modular floor finishes.
Customer Product Concerns
A necessary substrate joint must continue through the finish without becoming an impact point, an unprotected edge or a difficult-to-clean recess.
Rigid flooring cracks when a structural movement line is bridged with resin or tile.The joint profile is positioned over the substrate break so the surface can expand and compress in the same location.
Forks, casters and carts chip exposed edges on both sides of a soft sealant joint.Stainless steel edge rails receive the direct rolling contact and protect the adjacent finish.
A proud metal cover creates noise and vibration as small wheels cross it.The profile is installed approximately flush with the surrounding finished floor.
Deep open gaps collect debris and are difficult to wipe during routine sanitation.The narrow central movement zone closes the visible line while retaining lateral movement capacity.
Typical Applications
Pharmaceutical cleanroom movement linesHospital controlled corridorsLaboratory floor transitionsMaterial airlocks with cart trafficHygienic production floor fields
Technical Parameters
Representative dimensions and material data for a heavy-duty stainless steel floor compression joint are provided below.
| Core Material | AISI 304 stainless steel anchoring profile with an integral compression movement zone |
|---|---|
| Panel Thickness | 8.0–22.5 mm installed profile depth to suit the adjoining floor build-up |
| Effective Width | Approximately 48 mm overall anchored width with an 8 mm central zone |
| Maximum Length | 2500 mm standard profile length |
| Steel Facing Thickness | Approximately 1.0 mm stainless steel profile thickness |
| Core Density | Approximately 7900 kg/m³ for AISI 304 stainless steel |
| Thermal Conductivity | Approximately 14–17 W/(m·K) for AISI 304 stainless steel |
| Surface Finish | Smooth BA or satin stainless steel edges with a narrow flush movement line |
| Joint Type | Two-wing mechanically anchored compression profile aligned above the substrate movement joint |
| Customization | Available based on the intended application and operating environment. |
Available Options
8, 10, 12, 15 or 22.5 mm profile depthAISI 304 or 316L stainless steelBA, satin or brushed exposed finishInternal, perimeter and cross-junction pieces
