Slim Cleanroom Access Control Card Reader

A narrow contactless credential reader designed to fit cleanroom door mullions and send verified card data to the access controller.

Slim Mullion Format
Contactless RFID Reading
Blue-Green Status Bar
Sealed Rear Housing

Request a Quote Browse Products

Product Introduction

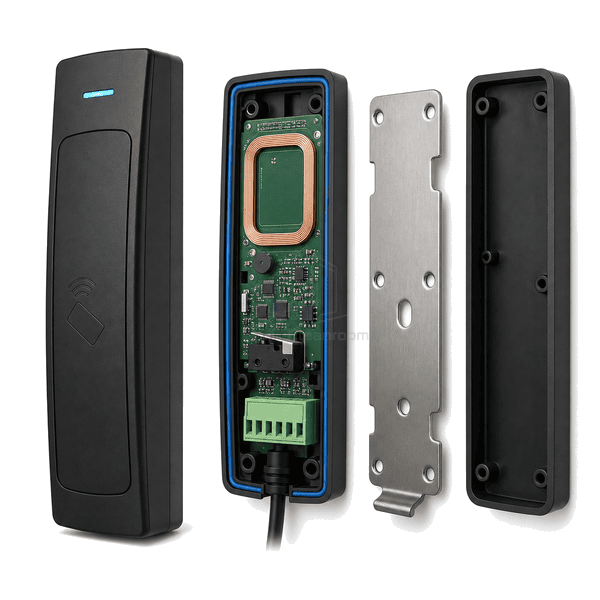

The slim cleanroom card reader packages an RFID antenna, reader electronics and status indicator inside a narrow polymer enclosure suited to aluminum door frames. Presenting a compatible card or key credential generates a coded output to the access controller, which then decides whether to release the electric lock. A perimeter gasket, tamper input and concealed cable entry protect the wall interface while the contrasting status bar confirms credential activity.

Key Features

The narrow body fits mullions where a standard square reader would overlap the door reveal.

Contactless credential reading avoids exposed slots and moving card mechanisms.

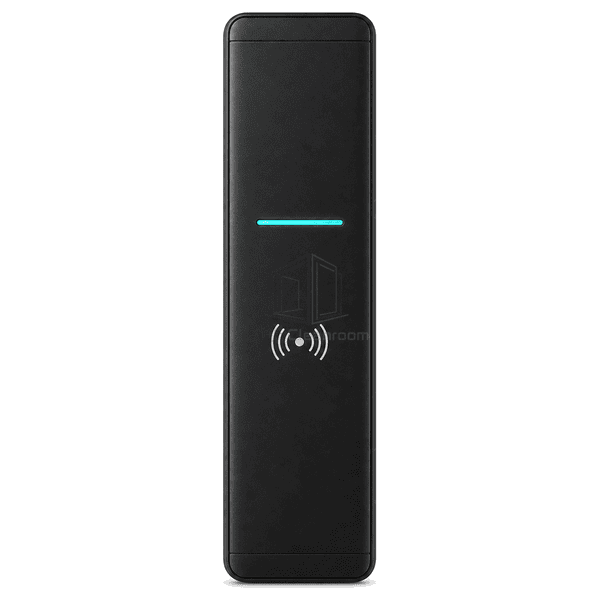

A visible blue-green status light confirms standby, reading and access response states.

The rear gasket and tamper contact help protect the wiring interface from unauthorized removal.

Customer Product Concerns

A cleanroom access reader must fit a narrow metal frame, remain easy to wipe and communicate clearly with the central controller.

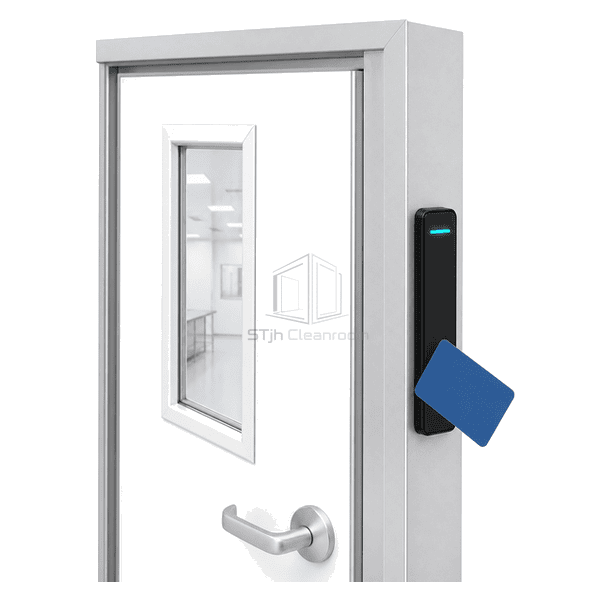

A wide wall reader projects beyond the cleanroom door mullion.The slim enclosure stays within the narrow vertical frame face.

Card slots collect dust and wear under frequent use.The RFID credential is read through the sealed front without insertion.

Users repeatedly present a card because they cannot see whether it was detected.The status light changes as the reader processes the credential and controller response.

Typical Applications

Cleanroom personnel entrancesLaboratory restricted doorsHospital controlled-area accessPharmaceutical airlock entry

Technical Parameters

Representative enclosure and material data for a narrow cleanroom RFID reader are shown below.

Core Material	Copper RFID antenna and reader electronics on an FR-4 printed circuit board
Panel Thickness	Approximately 18–25 mm reader-body depth
Effective Width	Approximately 40–48 mm mullion-reader width
Maximum Length	Approximately 125–145 mm overall reader length
Steel Facing Thickness	0.8–1.2 mm stainless-steel mounting plate where selected
Core Density	Approximately 1850 kg/m³ for the FR-4 electronic laminate
Thermal Conductivity	Approximately 0.25–0.35 W/(m·K) for the FR-4 reader board
Surface Finish	Matte black UV-stable polymer housing with blue-green status illumination

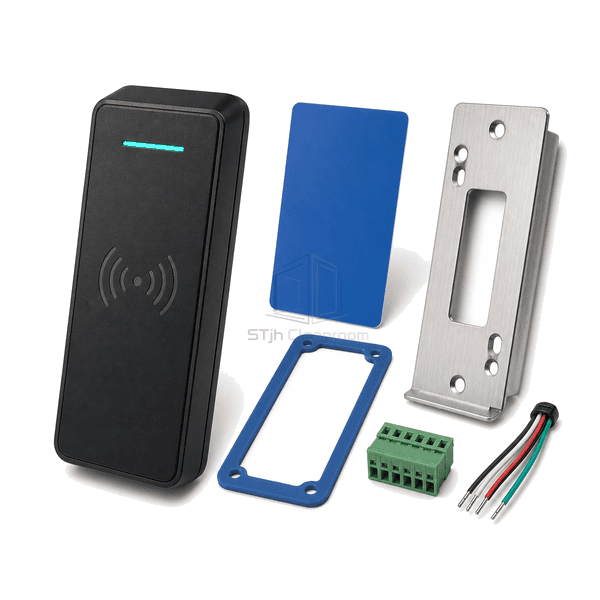

Joint Type	Two-point mullion mounting with concealed cable entry gasket and removable terminal
Customization	Available based on the intended application and operating environment.

Available Options

Common low- and high-frequency credential formatsWiegand or OSDP controller interfaceBlack or white enclosureCard and key-fob credential sets
