Cleanroom HVAC and Air Handling Equipment
Screw Compressor Chiller

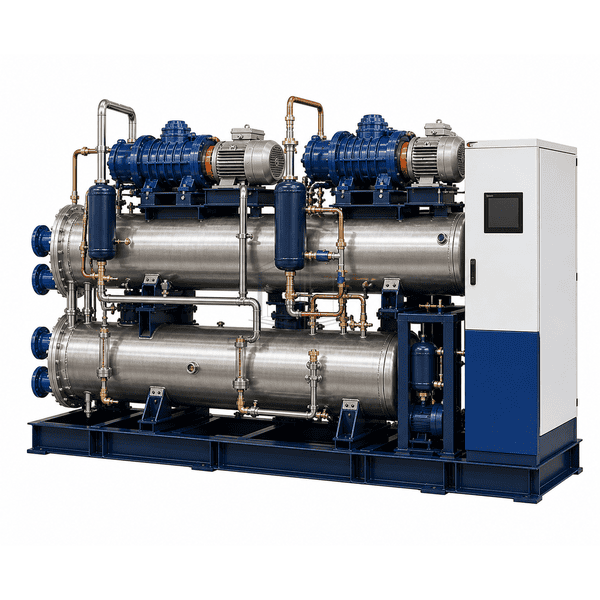

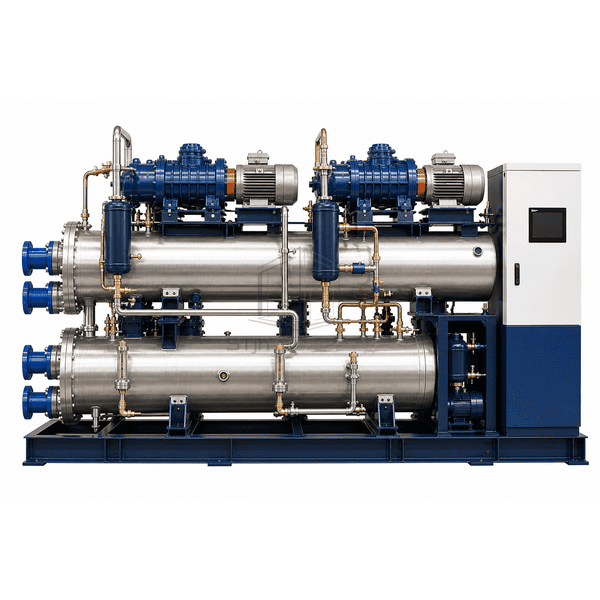

A medium-to-large liquid chiller using twin-rotor screw compression for robust continuous-duty cooling and smooth capacity control.
- Twin-Rotor Screw Compression
- Continuous Capacity Control
- High-Capacity Cooling
- Air- or Water-Cooled Options
Product Introduction

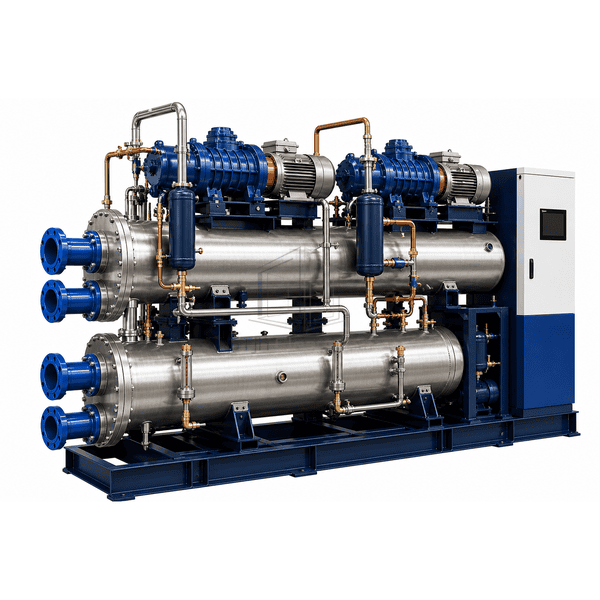

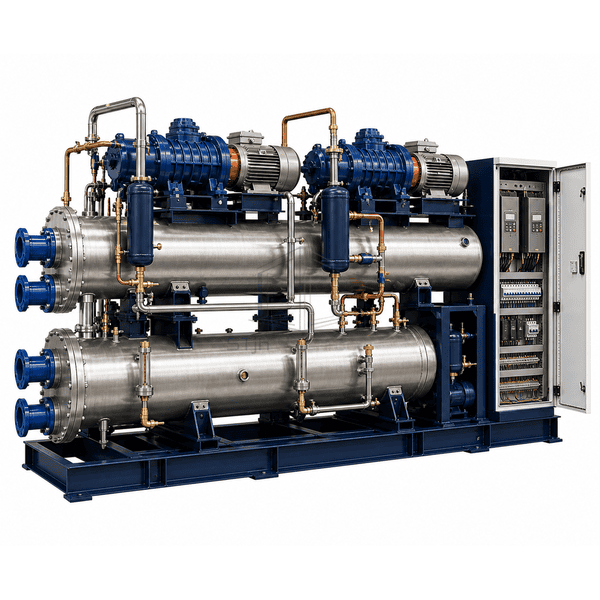

The screw compressor chiller uses meshing helical rotors to compress refrigerant continuously, providing fewer capacity pulses than reciprocating machinery and reliable operation at medium and large duty. Slide-valve or variable-speed control follows changing chilled-water load, while an economizer can improve capacity at favorable operating conditions. The compressor can be paired with air-cooled condenser coils or a water-cooled shell-and-tube condenser. Oil management, discharge temperature and evaporator flow are supervised by the unit controller.
Key Features
Slide-valve or variable-speed modulation adjusts capacity without relying only on start-stop cycling.
Economizer and liquid-injection options can support capacity and compressor temperature control.
Air-cooled and water-cooled arrangements allow the compressor platform to match the available heat sink.
Customer Product Concerns
Screw chillers perform best when oil management, minimum load, water flow and condensing conditions remain within the compressor operating envelope.
Low plant load forces frequent compressor starts.Variable capacity and correctly sized system volume maintain longer stable operating cycles.
Oil remains in the evaporator during prolonged low-load operation.Oil separation, return control and minimum refrigerant velocity protect compressor lubrication.
Sudden process load changes cause chilled-water temperature excursions.Fast capacity modulation and leaving-water control respond without waiting for another compressor stage.
High discharge temperature limits operation at extreme conditions.Economizer, liquid injection or appropriate condensing control keeps the compressor within its map.
Typical Applications
Large cleanroom HVAC plantsSemiconductor process coolingPharmaceutical central utilitiesData and electronics facilitiesIndustrial chilled-water production
Technical Parameters
Typical enclosure and compressor acoustic-lining data for a screw chiller are shown below.
| Core Material | Semi-rigid glass-fibre board inside the compressor acoustic enclosure |
|---|---|
| Panel Thickness | 1.2–2.0 mm removable compressor enclosure panels |
| Effective Width | 1400–3000 mm nominal equipment width |
| Maximum Length | Up to 12000 mm for air-cooled or 7500 mm for water-cooled configuration |
| Steel Facing Thickness | 1.2–2.5 mm coated steel frame and service enclosure |
| Core Density | 48 kg/m³ semi-rigid glass-fibre acoustic board |
| Thermal Conductivity | 0.033 W/(m·K) at 25°C for the glass-fibre board |
| Surface Finish | Powder-coated structural steel and removable weather-resistant or indoor service panels |
| Joint Type | Welded equipment skid with bolted acoustic panels and flanged or grooved water connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Fixed-speed slide-valve or variable-speed compressorAir-cooled or water-cooled condenserEconomizer, heat recovery and free coolingStandard, low-noise or ultra-low-noise package
Planning a Screw Compressor Chiller specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
