Cleanroom Flooring Systems
Reusable Cleanroom Contamination-Control Mat
A washable low-profile polymeric mat with a naturally tacky, non-slip surface that captures floor-level particles from shoes and light wheels at controlled-area entrances.
- Reusable Polymeric Surface
- Foot and Wheel Particle Capture
- Low-Profile Non-Slip Finish
- Optional Static-Control Grade
Product Introduction
The reusable cleanroom contamination-control mat is formed from a dense washable polymer blend with a smooth, high-surface-energy face. As shoes and light cart wheels pass across it, contact transfers loose floor particles to the mat rather than carrying them into the controlled zone. The material can be damp cleaned to restore its working surface instead of peeling away disposable layers. Standard 1.2 or 2.0 metre widths suit entrances and corridors, while semi-permanent edge sealing or a loose-laid format can be selected for the floor construction.
Key Features
A naturally tacky polymer surface retains loose particulate while remaining washable and reusable.
A static-control grade can be selected where personnel and light trolley movement form part of the ESD plan.
Optional antimicrobial formulation is available for hygiene-sensitive entrances using compatible cleaning agents.
Customer Product Concerns
An entrance mat must remain stable underfoot, collect contamination consistently and fit routine cleaning without becoming a recurring disposable waste stream.
Disposable sticky sheets lose performance unpredictably as their exposed layer becomes loaded.The reusable polymer surface is cleaned on a scheduled cycle to restore particle collection.
Peeling adhesive layers creates waste and can generate electrostatic charge beside sensitive processes.A washable mat avoids routine layer removal, with a static-control grade available for ESD-managed entrances.

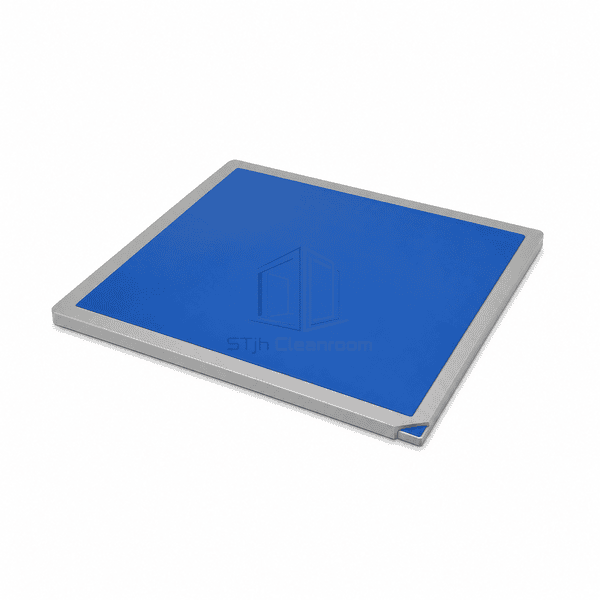

A loose thick mat shifts or catches small cart casters at the doorway.The 2 mm material can be semi-permanently bonded and edge sealed for a low transition.
A mat sized only for one footfall does not contact the full circumference of cart wheels.Custom lengths create several consecutive contact steps along the controlled entry route.
Typical Applications
Cleanroom personnel entrancesGowning room transfer pointsPersonnel airlocksCritical clean corridorsLight cart and equipment wheel crossings
Technical Parameters
Typical material and dimensional data for a reusable polymeric cleanroom entrance mat are shown below.
| Core Material | Dense washable polymer blend with optional antimicrobial or static-control formulation |
|---|---|

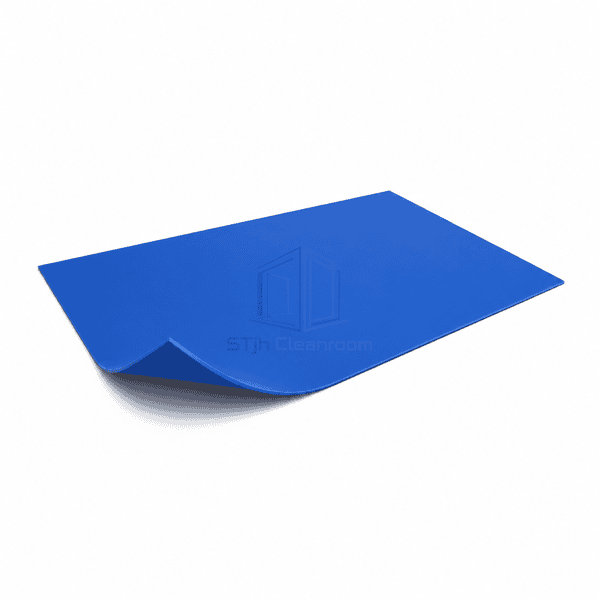

| Panel Thickness | 2.0 ± 0.1 mm nominal mat thickness |
| Effective Width | 1200 or 2000 mm standard material width |
| Maximum Length | Up to 15000 mm for custom-cut cleanroom walkway formats |
| Steel Facing Thickness | 0 mm; the mat is a flexible polymeric construction without steel facing |
| Core Density | Approximately 1200–1300 kg/m³ for the dense polymeric mat compound |
| Thermal Conductivity | Approximately 0.15–0.25 W/(m·K) for the polymeric mat material |
| Surface Finish | Optically smooth, naturally tacky and non-slip polymer surface in selected solid colours |
| Joint Type | Semi-permanent bonded and edge-sealed installation or removable loose-laid mat with tapered perimeter |
| Customization | Available based on the intended application and operating environment. |
Available Options
Semi-permanent or removable floating format1200 or 2000 mm standard widthMidnight, slate, green, red, cobalt or titanium colourCustom-cut entry shapes and tapered edge treatment
Planning a Reusable Cleanroom Contamination-Control Mat specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
