Personnel and Material Decontamination Equipment

Protective Suit De-Dusting Booth

A dry extraction booth that dislodges loose powder from protective clothing and captures it through a dedicated airflow path.

Dry Suit Cleaning
Full-Height Extraction
Staged Dust Collection
Timed Post-Clean Purge

Request a Quote Browse Products

Product Introduction

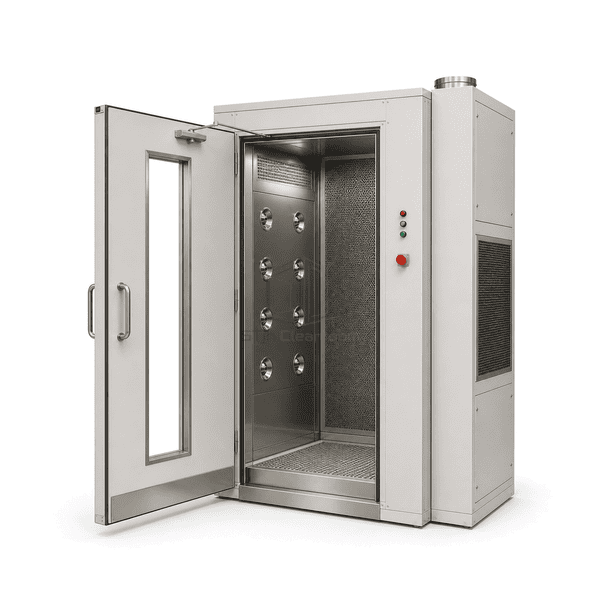

The de-dusting booth is intended for powder processes where water is impractical. Directional air from adjustable nozzles loosens residue from the garment while an extraction face pulls contaminated air away from the operator. Pre-separation reduces the loading on the final filter, and dirty-side maintenance access separates captured material from the exit route.

Key Features

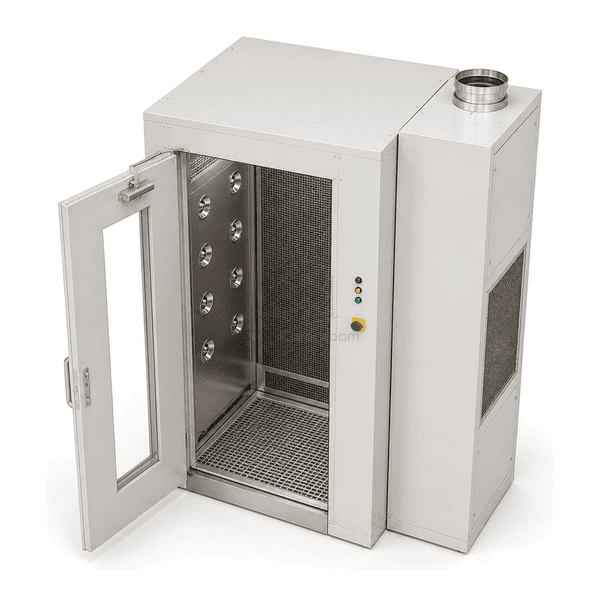

A cross-flow layout moves released dust from cleaning nozzles directly to extraction.

Negative chamber bias reduces outward leakage at doors and service panels.

A prefilter or separator removes high-mass dust before the final stage.

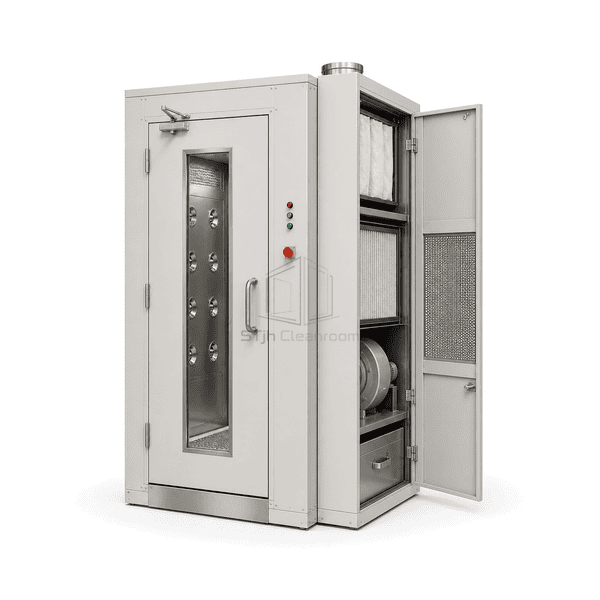

Dirty-side doors support contained filter and collection maintenance.

A timed extraction purge continues after the cleaning jets stop.

Customer Product Concerns

Dry cleaning must capture dislodged particles immediately instead of redistributing them into the changing area.

Air jets release dust that remains around the operator.A full-height extraction face establishes one directional path from nozzle wall to collection system.

Heavy powder quickly blocks a fine final filter.A coarse pre-stage removes the largest fraction before final filtration.

Changing filters exposes clean-side staff.Service access is located on the designated dirty side of the booth.

Dust exits with the operator as soon as the jets stop.The clean-side door remains locked through a post-clean extraction purge.

Typical Applications

Dry pharmaceutical powder roomsBattery-material handlingPigment productionCeramic powder processing

Technical Parameters

Typical enclosure ranges for a protective-suit de-dusting booth are shown below.

Core Material	Mineral-wool insulated steel booth with air nozzles, extraction plenum and staged dust filters
Panel Thickness	50-75 mm acoustic and dust-tight panels
Effective Width	1000-1400 mm clear operator width
Maximum Length	Up to 2200 mm booth length
Steel Facing Thickness	1.2-1.5 mm formed steel with stainless internal wear surfaces
Core Density	80-100 kg/m³ mineral-wool acoustic infill
Thermal Conductivity	0.035-0.045 W/(m·K) for the insulated enclosure
Surface Finish	Powder-coated steel exterior with smooth stainless extraction and floor contact surfaces
Joint Type	Dust-tight flanged seams with gasketed filter cassettes and interlocked personnel doors
Customization	Available based on the intended application and operating environment.

Available Options

Compressed-air or blower cleaning sourceCartridge or panel final filtersBag-out collection sectionDifferential-pressure monitoring
