Local Clean Air Workstation

A modular open-frame station that places filtered clean air over one selected process step without enclosing the surrounding production area.

Targeted Process Coverage
Modular Open Frame
Adjustable Airflow Footprint
Equipment-Ready Work Zone

Request a Quote Browse Products

Product Introduction

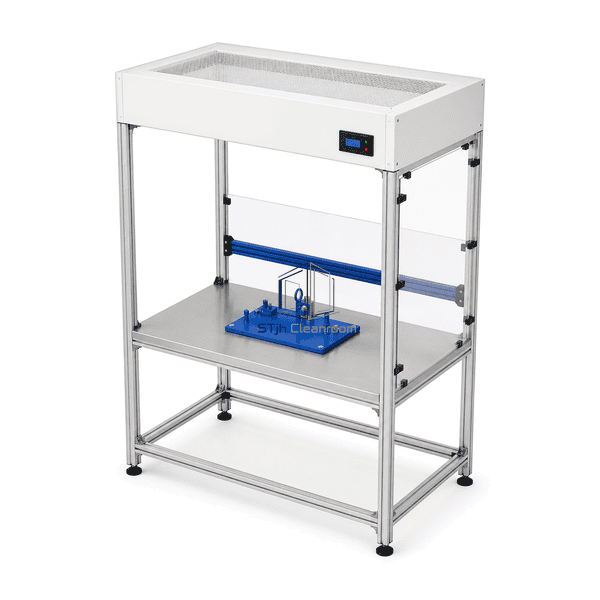

This workstation is configured around a specific instrument, assembly fixture or inspection step rather than a fixed clean-bench format. Fan-filter modules can be mounted above or behind the process, and clear panels or partial curtains are added only where they help control room drafts. The open frame leaves the process accessible for material loading and maintenance. Its purpose is localized non-hazardous product protection within an already managed indoor environment.

Key Features

The frame and filter position can be matched to the actual process footprint.

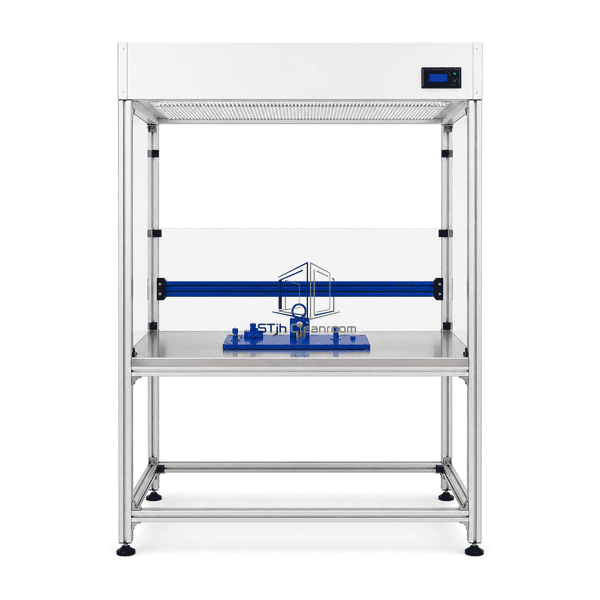

Open sides allow conveyors, fixtures and service access to pass through the station.

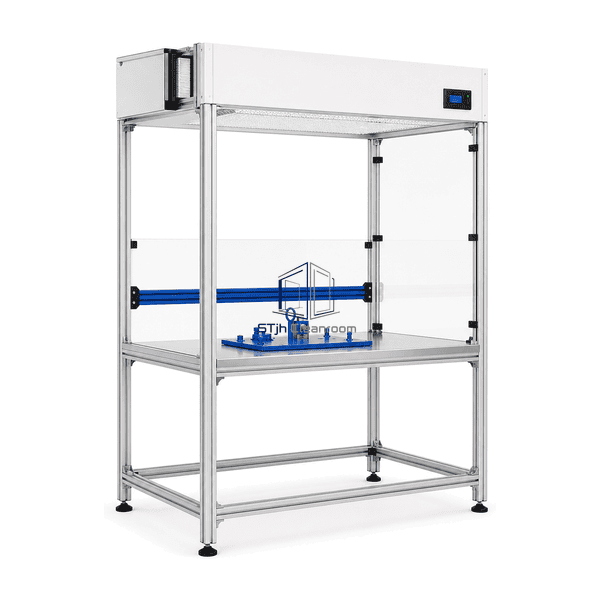

Partial panels control the most disruptive room-air directions without fully enclosing the operator.

Utility rails accept task lights, outlets and lightweight process accessories.

Independent controls allow the local airflow to operate with the process schedule.

Customer Product Concerns

A standard bench can be the wrong shape for an installed process, while full-room upgrades may be unnecessary for one critical operation.

The process fixture cannot fit inside a conventional cabinet.An open modular frame is built around the installed equipment envelope.

Only one operation needs cleaner air than the surrounding room.Targeted fan-filter coverage concentrates clean air over that process step.

A rigid enclosure blocks maintenance access.Removable panels and open sides preserve service routes.

Air from a nearby door disrupts the local zone.A partial clear panel or curtain is placed on the identified draft side.

Typical Applications

Localized sensor assemblyClean inspection around a test fixtureSmall conveyor transfer pointsParticle-sensitive packaging steps

Technical Parameters

Typical configurable construction ranges for a local clean-air workstation are listed below.

Core Material	Anodized aluminum modular frame with powder-coated steel filter housing and clear polycarbonate control panels
Panel Thickness	20-40 mm modular frame and panel sections
Effective Width	800-2500 mm protected process width
Maximum Length	Up to 3500 mm station length
Steel Facing Thickness	0.8-1.2 mm powder-coated filter and utility housings
Core Density	Approximately 1200 kg/m³ for solid polycarbonate side panels
Thermal Conductivity	0.19-0.22 W/(m·K) for polycarbonate panels
Surface Finish	Natural anodized frame, white filter housing and clear hard-coated panels

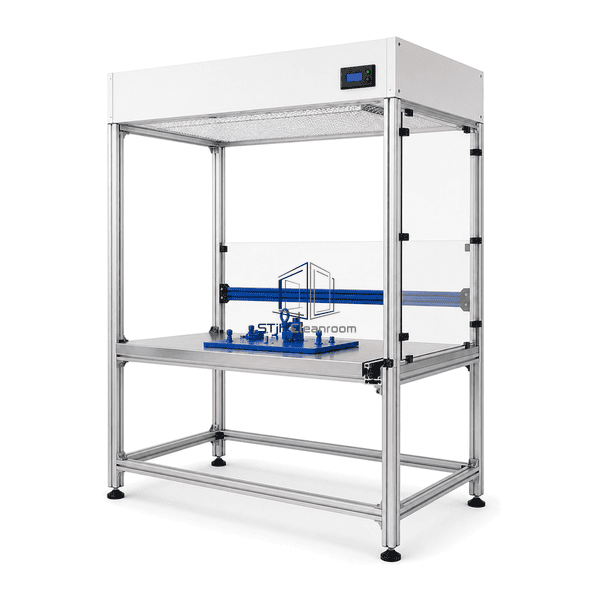

Joint Type	Bolted T-slot modular frame with gasketed fan-filter mounts and removable panel clips
Customization	Available based on the intended application and operating environment.

Available Options

Vertical or horizontal airflowFixed or mobile framePartial curtains or rigid panelsConveyor and equipment cut-outs
