Ionizing Bar System

A compact cleanroom ionizing bar that delivers balanced positive and negative ions across work surfaces, wafer handling zones and enclosed mini-environments.

Balanced Ion Output
Low-Particle Construction
Remote Status Monitoring
Flexible Bar Lengths

Request a Quote Browse Products

Product Introduction

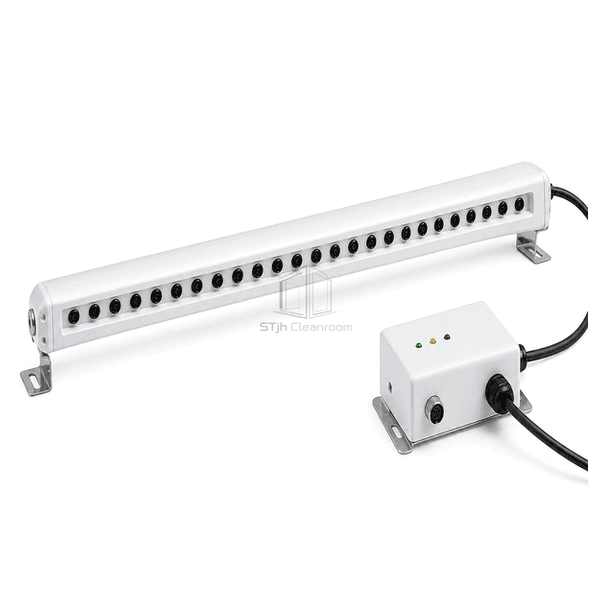

The ionizing bar system places protected emitter points along a slim, low-outgassing housing to neutralize electrostatic charge over a controlled working distance. A dedicated controller maintains stable output and provides operating indication, while stainless mounting clips permit accurate alignment above conveyors, benches or process openings. Configurable lengths and clean-air assistance allow the system to match both localized and wider treatment zones.

Key Features

Distributed emitter points provide uniform ion coverage along the active length of the bar.

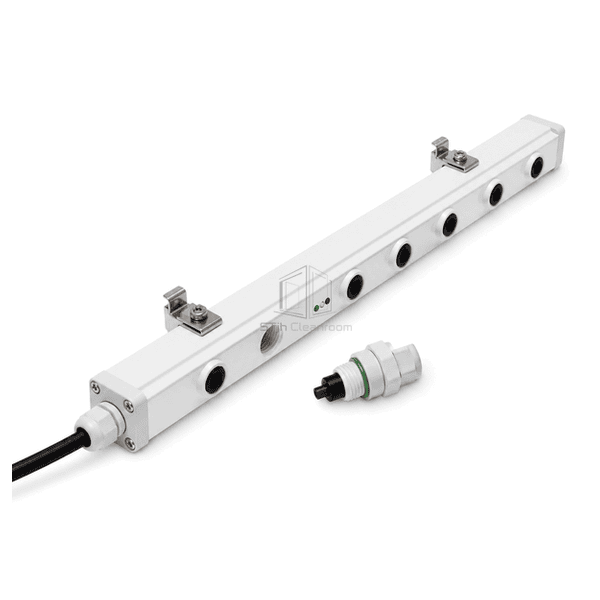

Smooth polymer housing and protected silicon emitters reduce particle traps in clean production areas.

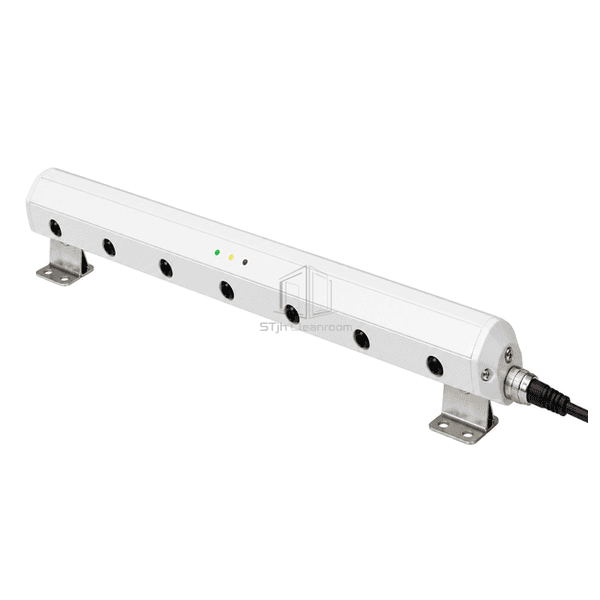

Visible status indicators and controller connections simplify routine operating checks.

Adjustable stainless mounting clips support accurate working-distance and angle setup.

Customer Product Concerns

Static charge can attract particles, disturb lightweight materials and expose sensitive devices to electrostatic discharge during controlled manufacturing.

Charge accumulates unevenly across long work surfaces.Evenly spaced emitter modules distribute balanced ions along the full active bar length.

Exposed ionizer hardware can become a contamination source.A smooth low-outgassing enclosure and protected emitter geometry support cleanroom use and maintenance.

Ionization performance changes when installation distance or angle is inconsistent.Adjustable stainless clips allow repeatable positioning for the required coverage zone.

Operators may not notice a disabled or disconnected ionizer.Local status lights and an optional remote monitor provide clear operating indication.

Typical Applications

Semiconductor mini-environmentsWafer and substrate handling stationsCleanroom assembly benchesPrecision film and electronics processing

Technical Parameters

Typical configuration values for a cleanroom ionizing bar system are listed below.

Core Material	Low-outgassing engineering polymer housing with silicon emitter points and stainless steel mounting hardware
Panel Thickness	2-4 mm housing wall thickness
Effective Width	300-2400 mm active ionizing length
Maximum Length	Up to 2500 mm overall bar length
Steel Facing Thickness	1.0-1.5 mm stainless steel mounting clips
Core Density	1150-1450 kg/m³ for engineering polymer housing material
Thermal Conductivity	0.20-0.35 W/(m·K) for polymer housing material
Surface Finish	Smooth white low-outgassing housing with passivated stainless hardware
Joint Type	Modular emitter bar with sealed end connections, adjustable clips and plug-in controller interface
Customization	Available based on the intended application and operating environment.

Available Options

Multiple active bar lengthsClean dry air-assisted configurationRemote alarm and monitoring outputTitanium or silicon emitter points
