Cleanroom HVAC and Air Handling Equipment
Industrial Refrigerant Dehumidifier
A self-contained condensation dehumidifier that cools process air below its dew point, drains the collected water and reheats the dry air through the condenser.
- Refrigeration Moisture Removal
- Automatic Hot-Gas Defrost
- Continuous Condensate Pumping
- Digital Humidity Control
Product Introduction

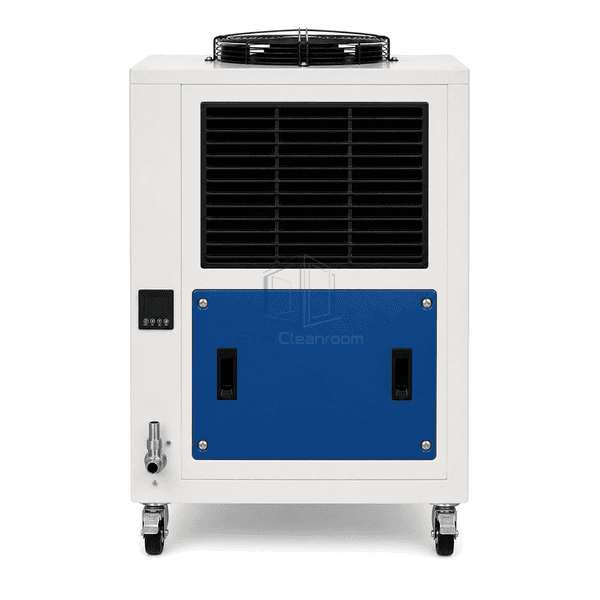

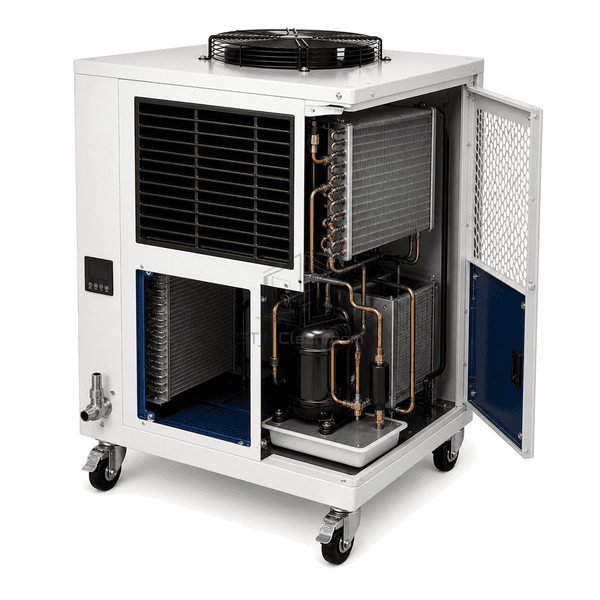

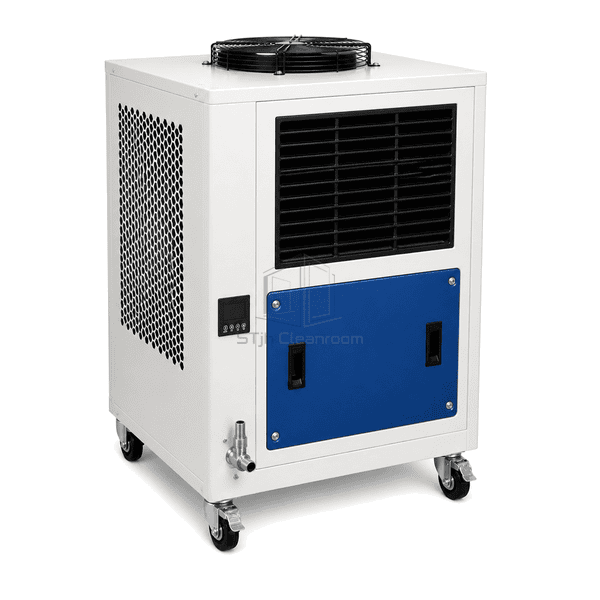

The industrial refrigerant dehumidifier combines a washable inlet filter, direct-expansion evaporator, compressor, condenser and centrifugal fan in one wheeled cabinet. Moist air condenses on the cold evaporator, then passes over the condenser so the discharged air is dry and slightly warmer. A built-in controller, hot-gas defrost and pumped drain support unattended humidity control in clean production and support spaces operating above typical refrigeration frost limits.
Key Features
Hot-gas defrost clears evaporator ice during low-temperature operation without relying on a long passive thaw cycle.
A condensate pump lifts collected water to a remote drain where gravity fall is unavailable.
Two-stage fan control and an external humidistat input allow the unit to match changing room moisture loads.
Customer Product Concerns
Moderately humid rooms need dependable water removal without the regeneration heat and dual air streams required by a desiccant system.
Seasonal humidity repeatedly rises above the acceptable range during production hours.A dedicated refrigeration circuit removes latent load independently of the room cooling thermostat.
The evaporator can ice when inlet air temperature falls during overnight operation.Automatic hot-gas defrost redirects refrigerant heat to the coil and restores airflow quickly.
A full condensate tank stops portable dehumidifiers when no operator is present.A float-controlled pump sends condensate through a hose to the building drain for continuous operation.

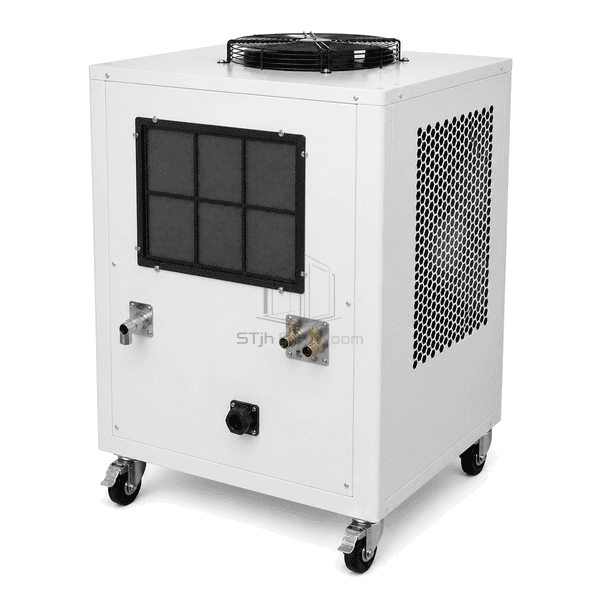

Dust accumulation on the cold coil reduces moisture removal and raises energy use.A front-access washable prefilter protects the evaporator and can be removed without opening the refrigeration compartment.
Typical Applications
Cleanroom support corridors and gowning areasMedical-device packaging roomsPharmaceutical raw-material storesElectronics assembly rooms with moderate dew-point targetsControlled warehouses and archives
Technical Parameters
Representative construction dimensions for a compact industrial condensation dehumidifier are listed below.
| Core Material | Copper-tube aluminum-fin evaporator and condenser with hermetic compressor in a galvanized steel cabinet |
|---|---|
| Panel Thickness | 1.0-1.5 mm removable powder-coated cabinet panels |
| Effective Width | 500-900 mm nominal cabinet width |
| Maximum Length | 326-547 mm cabinet depth across referenced fixed and portable configurations |
| Steel Facing Thickness | 1.0-1.5 mm galvanized steel exterior sheet |
| Core Density | Approximately 7800-7900 kg/m³ for galvanized carbon-steel cabinet material |
| Thermal Conductivity | Approximately 45-55 W/(m·K) for galvanized carbon-steel cabinet material |
| Surface Finish | White polyester powder coating with a corrosion-resistant blue service panel |
| Joint Type | Bolted service cabinet with brazed copper refrigerant joints and hose-connected condensate outlet |
| Customization | Available based on the intended application and operating environment. |
Available Options
Gravity drain or integrated condensate lifting pumpRemote humidistat and dry-contact alarm connectionDuct collars for closed-loop room recirculationAlternative low-global-warming-potential refrigerant circuit
Planning a Industrial Refrigerant Dehumidifier specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
