Personnel and Material Decontamination Equipment
High-Seal Stainless Steel Pass Box
A fully stainless steel pass box with compression-gasket doors for controlled material movement across critical cleanroom boundaries.
- Welded stainless transfer chamber
- Compression perimeter gaskets
- Monitored two-door interlock
- Coved internal corners
Product Introduction

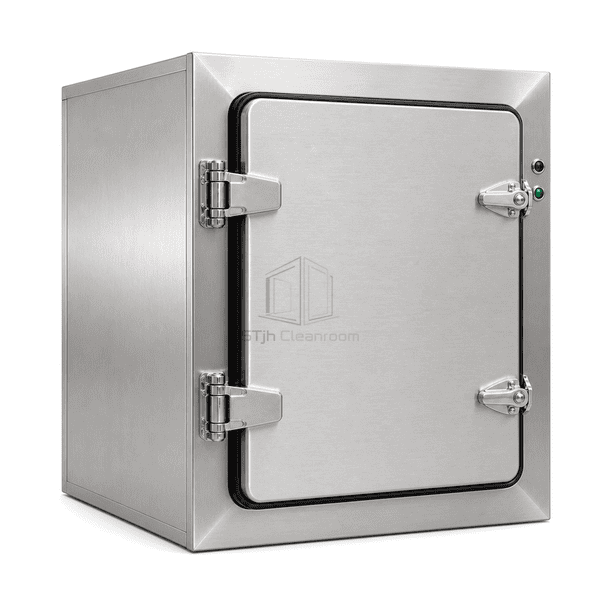

The High-Seal Stainless Steel Pass Box provides a robust material-transfer enclosure where door sealing and cleanable construction are both important. Its welded stainless chamber, coved corners and compression-gasket door leaves form a smooth internal envelope, while a monitored interlock keeps the two sides from opening together. Latch adjustment and gasket replacement can be specified to support routine maintenance over the service life of the unit.
Key Features

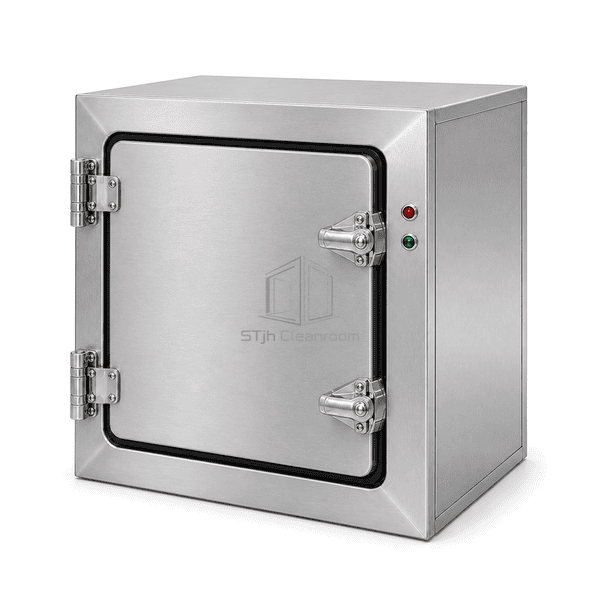

Multi-point latching distributes compression around each door gasket.

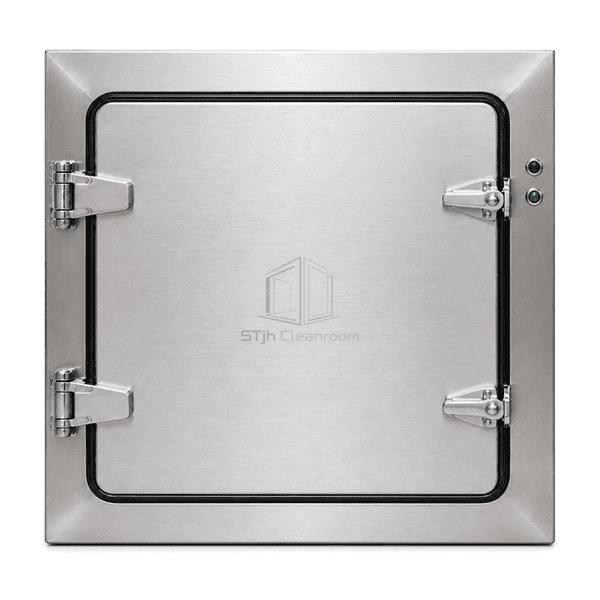

Door-position indication shows the state of each transfer side before release.

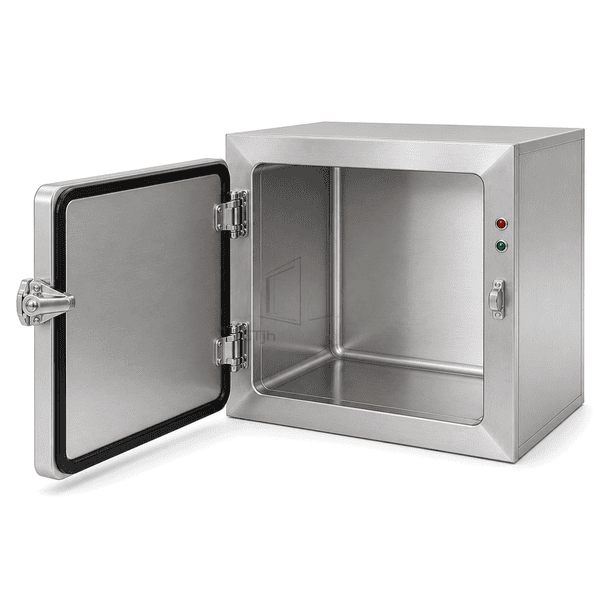

Formed internal radii make wiping the chamber surfaces more direct.
External service access can be arranged for latch and interlock adjustment.
Customer Product Concerns
Transfers across sensitive room boundaries require dependable closure surfaces as well as a door sequence that prevents a direct opening.
Standard doors can apply uneven pressure to a perimeter gasket.Multi-point latches are arranged to compress the gasket around the door frame.
Open seams and sharp internal corners complicate wipe-down work.A continuously welded chamber with coved corners presents smooth stainless surfaces.
Operators may not know whether the opposite door is secure.Door-status monitoring keeps the release sequence visible at the pass box.
Sealing components need routine attention as the installation ages.Replaceable gasket profiles and accessible latch adjustment support planned maintenance.
Typical Applications
Containment-oriented pharmaceutical material transferLaboratory pressure-boundary pass-throughsSterile manufacturing support roomsBattery dry-room material movementControlled powder handling areas
Technical Parameters
The following common configuration ranges describe the stainless construction and transfer geometry of this pass box.
| Core Material | SUS304 or SUS316L stainless steel chamber, doors and frame |
|---|---|
| Panel Thickness | 1.2–1.5 mm stainless steel chamber and door panels |
| Effective Width | 500–1000 mm clear chamber width |
| Maximum Length | 600–1200 mm chamber depth |
| Steel Facing Thickness | 1.2–1.5 mm SUS304 or SUS316L |
| Core Density | 7900–8000 kg/m³ for stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for stainless steel |
| Surface Finish | Brushed or electropolished stainless steel with coved interior |
| Joint Type | Continuously welded chamber with compression-gasket interlocked doors |
| Customization | Available based on the intended application and operating environment. |
Available Options
SUS316L contact surfacesInflatable or compression door gasketsWall-clamping installation frameDoor-status beacon or buzzer
Planning a High-Seal Stainless Steel Pass Box specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
