Digital Manometer

A pocket-size digital differential manometer for filter pressure-drop checks, ventilation static pressure and Pitot-tube velocity measurements.

Pocket-size compensated pressure measurement.
Hands-free magnetic mounting.
Differential pressure and Pitot velocity modes.

Request a Quote Browse Products

Product Introduction

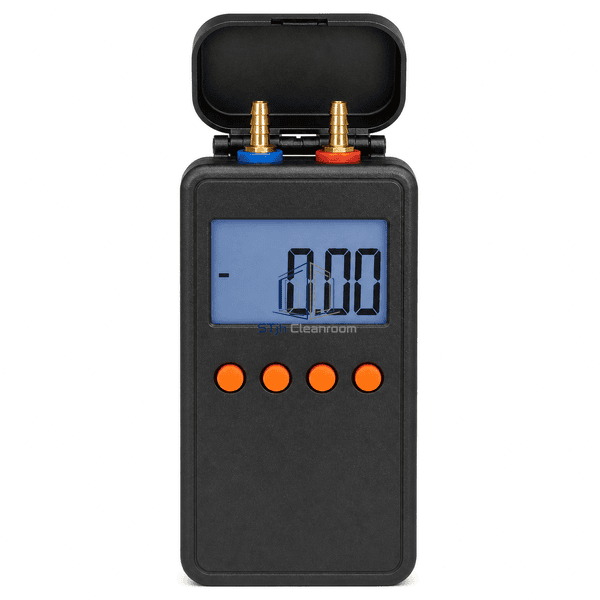

This compact digital manometer combines a temperature-compensated pressure sensor with two top hose connections and a bright display. It is intended for quick differential and static pressure checks where portability matters. Selectable units, zero adjustment and a magnetic rear surface support hands-free measurements at air handlers, filters and duct test points.

Key Features

Temperature-compensated sensor supports repeatable low-pressure readings.

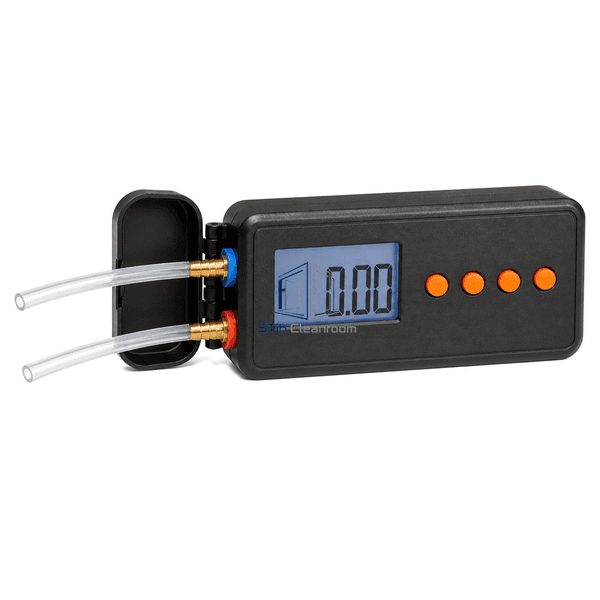

Two protected hose nipples enable differential pressure connections.

Pocket-size housing fits routine inspection and maintenance kits.

Backlit display remains readable in service voids and plant rooms.

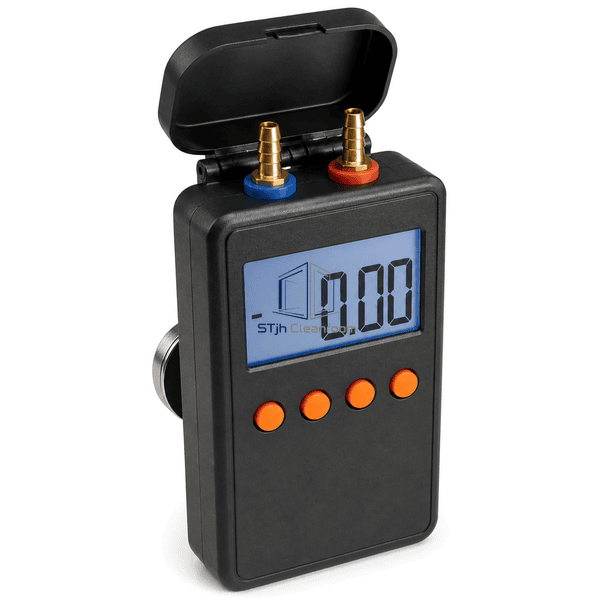

Magnetic rear surface enables hands-free mounting on steel equipment.

Optional Pitot tube extends use to duct velocity measurement.

Customer Product Concerns

Routine filter and duct checks require a compact instrument that can be secured near the test taps and read clearly in restricted service locations.

A service instrument must be portable without sacrificing pressure resolution.The compact compensated sensor package provides useful low-pressure resolution in a pocket-size body.

Operators need both hands to position tubing at equipment taps.A magnetic rear surface holds the meter on a steel panel during the reading.

Dim ceiling and plant spaces make small displays difficult to read.An illuminated high-contrast display improves visibility at the test point.

Different procedures specify different pressure units.Selectable engineering units remove the need for manual conversion.

Typical Applications

Cleanroom filter pressure-drop checksHVAC static-pressure measurementAir-handler commissioningDuct Pitot-tube velocity testingRoutine ventilation maintenance

Technical Parameters

Representative construction dimensions for a pocket digital manometer are listed below; range, pressure units and probe accessories may be selected for the maintenance program.

Core Material	Temperature-compensated differential sensor, brass hose ports and ABS instrument enclosure
Panel Thickness	Typically 1.8-2.8 mm for the molded pocket-meter housing
Effective Width	Approximately 45-55 mm across the instrument body
Maximum Length	Approximately 115-130 mm including the protective port cap
Steel Facing Thickness	Typically 0.5-0.8 mm for the optional stainless Pitot probe
Core Density	Approximately 1030-1080 kg/m³ for the ABS enclosure
Thermal Conductivity	Approximately 0.17-0.20 W/(m·K) for the ABS enclosure
Surface Finish	Matte graphite housing with blue and red port markers and a clear display window

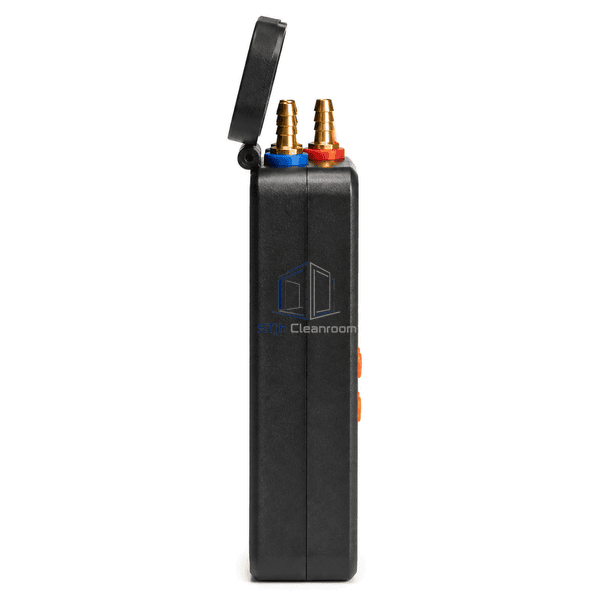

Joint Type	Twin barbed pressure connections with flexible tubing and removable protective cap
Customization	Available based on the intended application and operating environment.

Available Options

Standard or extended pressure rangeFlexible tubing setPitot tubeStatic-pressure tipsMagnetic rear mountProtective soft case
