Cleanroom Material Handling and Storage

Cleanroom Tote Container

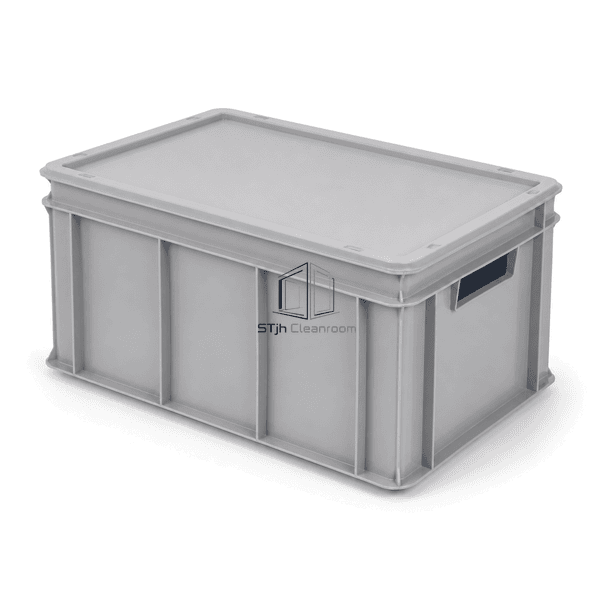

A light-gray molded cleanroom tote container with tapered walls, reinforced rim and base, fitted removable lid, ribbed side panels and recessed end grips.

One-piece polymer body avoids corrosion and flaking surface coatings
Reinforced 600 × 400-style footprint interfaces efficiently with carts and shelving
Fitted lid protects work-in-process parts while preserving stackability

Request a Quote Browse Products

Product Introduction

This reusable tote provides a lightweight alternative to metal boxes for routine cleanroom transfer and storage. The injection-molded body combines a reinforced upper rim, radiused interior and molded external ribs without separate fasteners. A shallow fitted lid closes the open top for covered staging, and recessed hand grips remain inside the tote footprint so adjacent units can be packed closely.

Key Features

Industrial polymer will not rust, dent like thin sheet metal or shed paint.

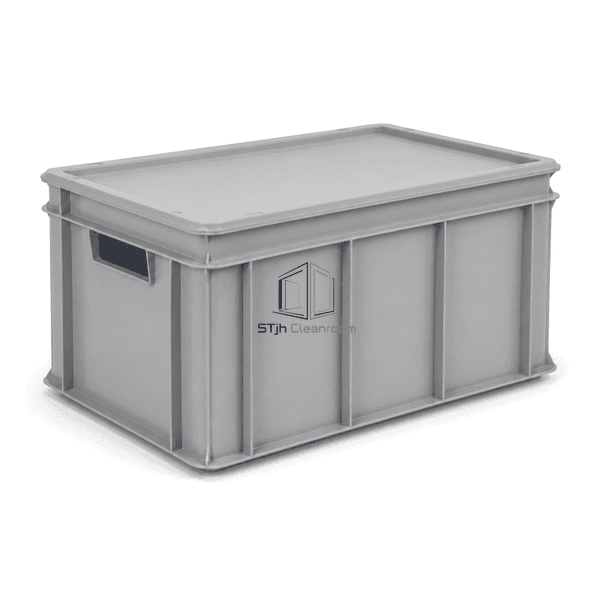

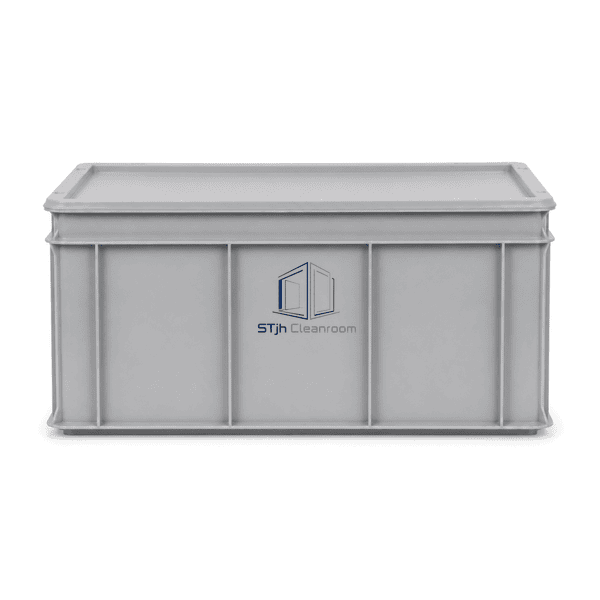

Ribbed sidewalls stiffen the body without inserting loose structural parts.

Standardized rectangular proportions support efficient shelf and cart loading.

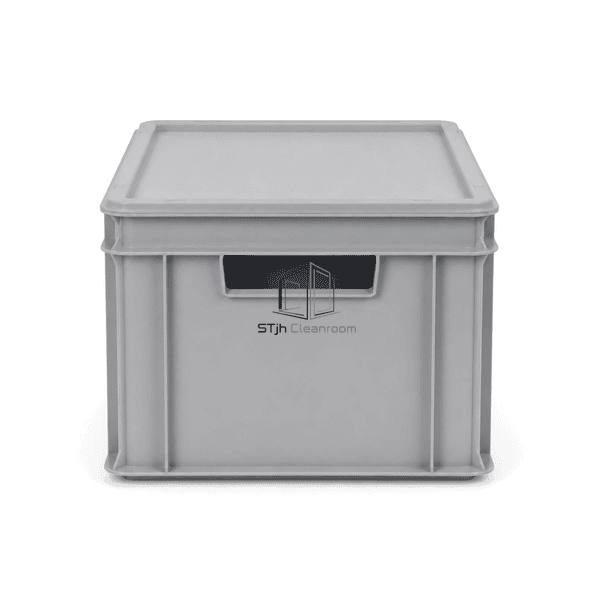

Recessed end grips allow lifting without projecting hardware.

Closed totes can stack; compatible empty bodies can nest when the lid is removed.

Customer Product Concerns

Corrugated boxes release fibers, metal bins add unnecessary weight, and projecting handles waste space on densely loaded carts.

Fiber contamination from disposable packagingThe reusable molded body replaces corrugated material inside controlled areas.

Container deformation under stackingReinforced rim, base and ribs distribute compression around the shell.

Poor space utilizationA standardized rectangular footprint and recessed grips support close packing.

Electrostatic risk for sensitive partsA compatible static-dissipative polymer formulation can be specified.

Typical Applications

Closed-loop movement of cleaned parts, device components, consumable packs, small tooling and work-in-process kits in electronics, medical-device, pharmaceutical packaging and laboratory clean areas.

Technical Parameters

Wall taper, rib layout and rim section are molded as one structure to balance stiffness, nesting clearance and material use. Polymer grade may be natural, color-coded or static-dissipative according to the contamination and electrostatic-control plan. The fitted lid provides routine particulate protection but is not a pressure seal or liquid-tight closure unless a dedicated gasketed version is selected.

Core Material	Virgin polypropylene or high-density polyethylene, with static-dissipative formulation optional
Panel Thickness	3.0–6.0 mm nominal molded wall thickness
Effective Width	300–400 mm usable internal width
Maximum Length	Up to 800 mm overall tote length
Steel Facing Thickness	0 mm; no steel facing used in the molded polymer body
Core Density	900–960 kg/m³ typical polypropylene or HDPE density
Thermal Conductivity	Approximately 0.22–0.50 W/(m·K) at room temperature
Surface Finish	Smooth satin molded surface with radiused cleanable interior
Joint Type	One-piece injection-molded body with reinforced stack rim and removable fitted lid
Customization	Available based on the intended application and operating environment.

Available Options

Polypropylene or HDPE, natural gray or application color coding, static-dissipative compound, alternative heights, removable lid, divider set, tamper-evident tie holes, identification pocket, conductive label holder and matched dolly.
