Cleanroom panic exit touch bar with latch strike and trim hardware

Cleanroom Doors, Windows and Interlock Systems

Cleanroom Panic Exit Device

A full-width horizontal touch bar that retracts the exit latch when pushed anywhere across the active surface during emergency egress.

Full-Width Touch Operation
Positive Latch Retraction
Low-Profile Rail
Interior Emergency Egress

Request a Quote Browse Products

Product Introduction

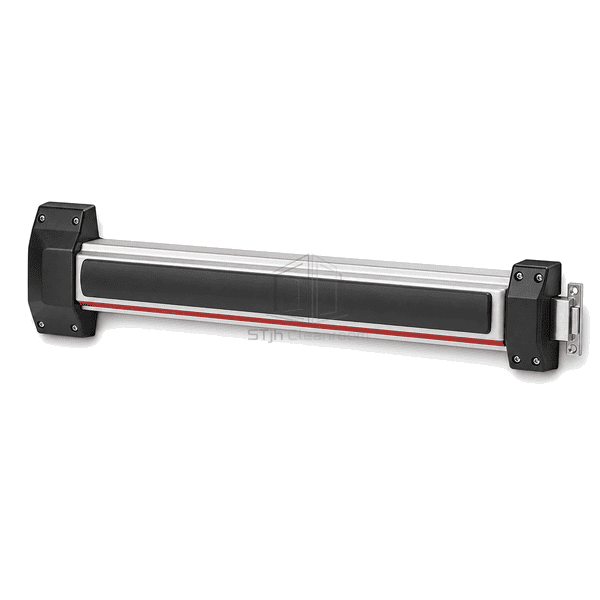

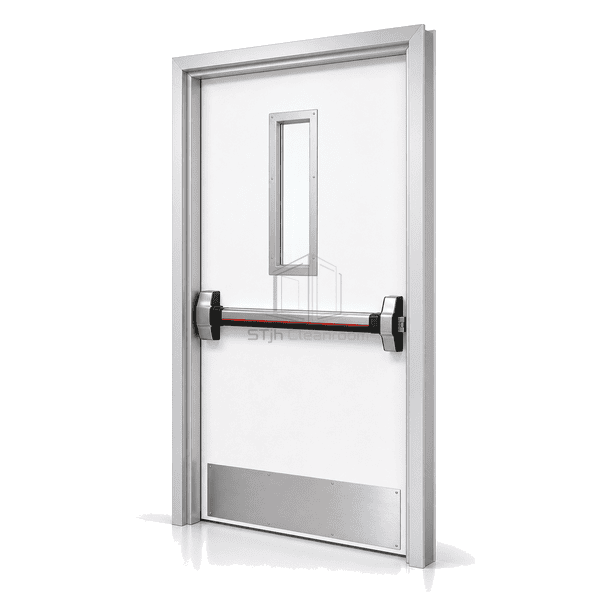

The cleanroom panic exit device mounts across the inside face of an exit door and converts pressure on the touch rail into immediate latch retraction. An aluminum chassis carries the linkage between the active bar and the stainless latch case, while black end covers and a narrow red safety accent identify the operating surface. The external side can accept a controlled trim handle without defeating free egress from the clean side.

Key Features

The wide touch surface can be operated without locating a small lever during urgent movement.

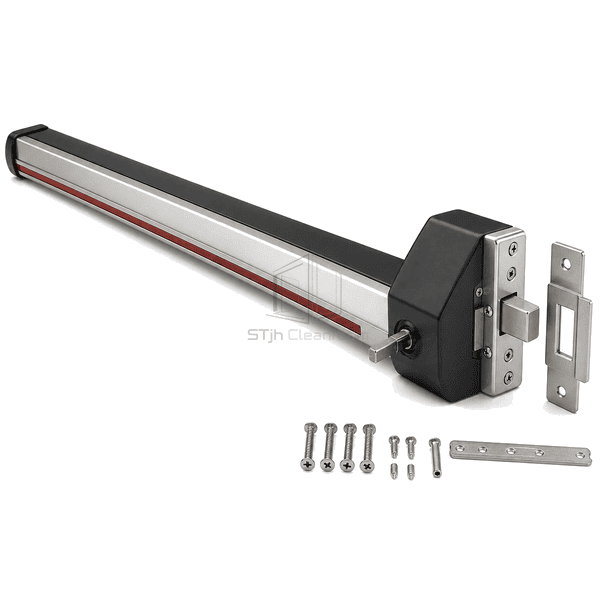

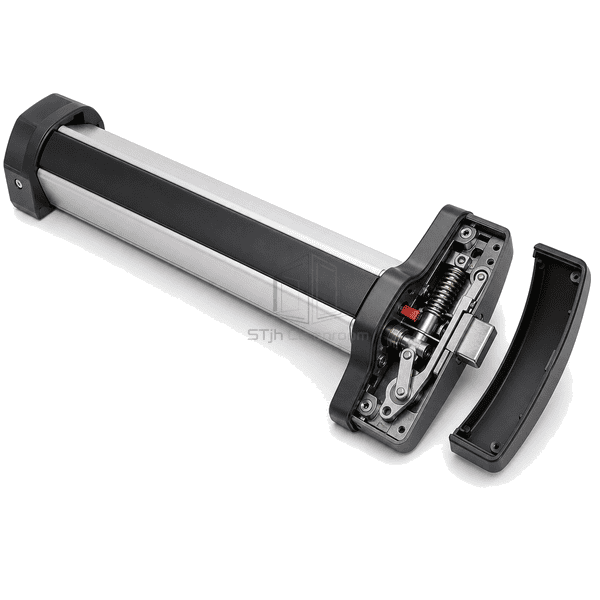

A protected linkage transfers bar travel directly to the latch bolt at the door edge.

Smooth anodized and coated surfaces reduce crevices compared with exposed crossbar hardware.

Optional exterior trim allows controlled entry while the interior touch bar remains freely operable.

Customer Product Concerns

Emergency hardware must release intuitively under body pressure while still seating the door securely during normal cleanroom operation.

A small lever is difficult to locate or operate while carrying equipment during evacuation.The horizontal touch surface retracts the latch anywhere along the active rail.

Bulky crossbar mechanisms create exposed pivots and cleaning obstacles.The low-profile enclosed rail protects the internal linkage behind smooth covers.

Uncontrolled outside entry compromises the restricted cleanroom boundary.Compatible exterior trim can remain access-controlled while interior egress stays available.

Typical Applications

Cleanroom emergency exit doorsLaboratory escape routesHospital controlled-area exitsPharmaceutical production corridors

Technical Parameters

Representative dimensions and materials for a low-profile cleanroom panic touch bar are provided below.

Core Material	Extruded aluminum rail with steel linkage, stainless latch bolt and polymer end housings
Panel Thickness	Approximately 60–70 mm maximum projection from the door face
Effective Width	Approximately 45–60 mm active touch-surface width
Maximum Length	Up to 1200 mm rail length for common single-door openings
Steel Facing Thickness	1.5–2.0 mm stainless-steel latch and strike faceplates
Core Density	Approximately 2700 kg/m³ for the aluminum rail material
Thermal Conductivity	Approximately 160–205 W/(m·K) for the aluminum chassis
Surface Finish	Silver anodized aluminum, charcoal touch surface and restrained red safety insert
Joint Type	Surface-mounted touch rail linked to a rim latch and aligned frame strike
Customization	Available based on the intended application and operating environment.

Available Options

650–1200 mm cut-to-door railMechanical or electrified monitoringStainless or black exterior trimSingle-point rim or vertical-rod latching
