Cleanroom Furniture and Stainless Steel Products
Cleanroom Laboratory Wall Bench
A single-sided perimeter bench with a coved stainless backsplash and enclosed rear services for clean work along a laboratory wall.
- Coved rear backsplash
- Enclosed wall-side services
- Clear knee and floor space
- Modular length configuration
Product Introduction

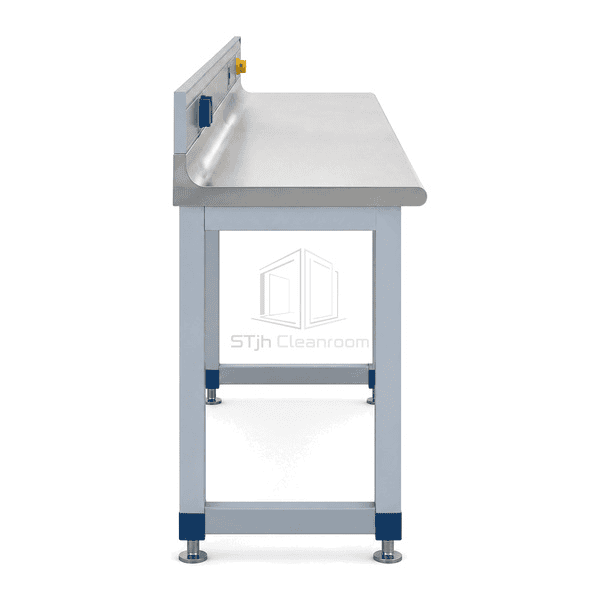

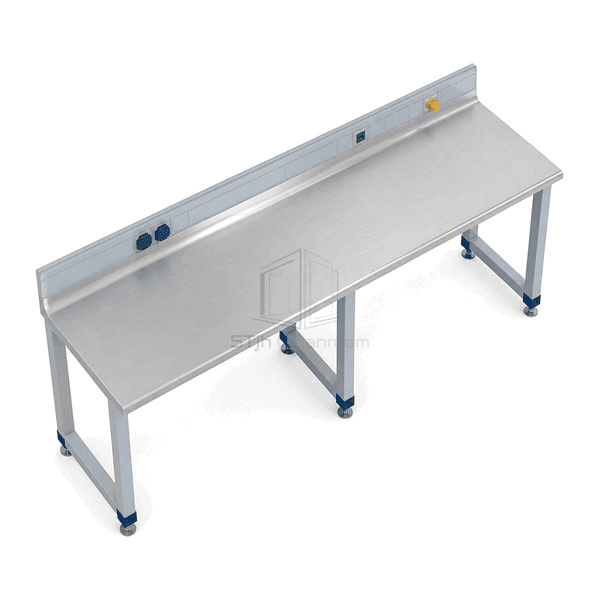

The cleanroom laboratory wall bench provides a continuous stainless work surface for perimeter operations while shielding the wall junction from routine spills and residue. Its coved backsplash rises into a slim sealed service rail with covered power and data points above the rear edge. An open powder-coated support frame preserves operator knee space and allows cleaning beneath the full run. Joined bench modules use aligned worktop seams and removable rear covers so services remain reachable from the room side.
Key Features
A narrow raised rail keeps covered utilities behind equipment rather than within the active work area.

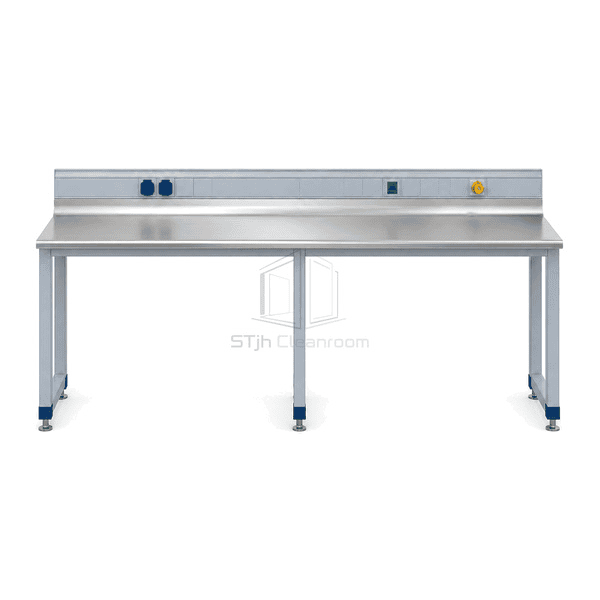

Open C-frame supports leave knee space clear and expose the floor-wall edge for cleaning.
Aligned modular sections extend the bench run without adding enclosed base cabinets.
Customer Product Concerns
Perimeter benches can trap residue at the wall junction and lose usable depth when service boxes are added to the work surface.
A square worktop-to-wall corner retains liquid and cleaning residue.The formed coved backsplash creates a continuous wipe path behind the equipment zone.
Surface-mounted outlet boxes consume work depth and catch containers.Covered connections sit in a narrow raised rear rail beyond the primary work area.
Full base cabinets block access to the floor and wall edge.Open C-frame supports preserve clear knee space and an unobstructed cleaning route.
Long bench runs develop misaligned seams that catch wipes and small components.Registered splice plates align neighbouring worktops and hold a narrow sealed joint.
Typical Applications
Cleanroom perimeter preparationLaboratory instrument supportSample receipt and documentationConsumable stagingNon-hazardous wet-process support
Technical Parameters
Typical configurable specifications for a cleanroom laboratory wall bench are listed below.
| Core Material | Type 304 stainless steel work surface and coved backsplash on sealed powder-coated steel C-frames |
|---|---|
| Panel Thickness | 1.2–1.5 mm stainless worktop and backsplash assembly |
| Effective Width | 600–900 mm work surface depth |
| Maximum Length | 3600 mm per continuous bench run |
| Steel Facing Thickness | 1.2–1.5 mm Type 304 stainless steel work surface |
| Core Density | 7900–8000 kg/m³ for Type 304 stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304 stainless steel |
| Surface Finish | Brushed stainless steel work surface with light-gray or blue-gray cleanroom powder-coated frame |

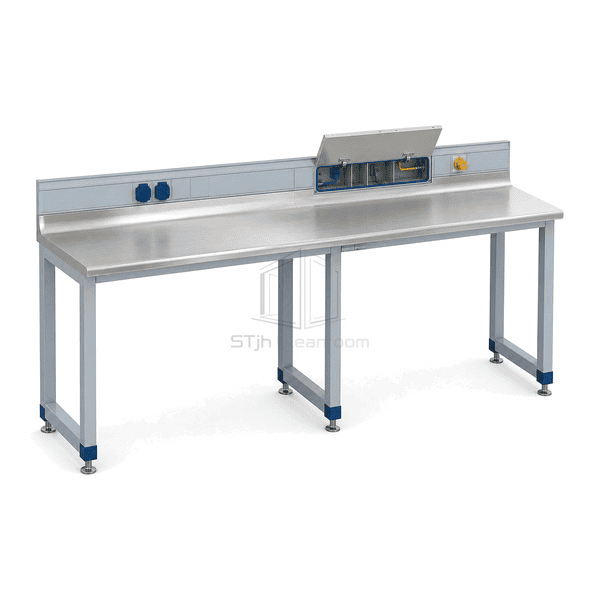

| Joint Type | Coved rear upstand with sealed service rail and registered inter-bench splice plates |
| Customization | Available based on the intended application and operating environment. |
Available Options
Covered power data or utility railUpper wall-mounted shelvesStainless under-bench drawersEquipment cut-outs or raised marine edge
Planning a Cleanroom Laboratory Wall Bench specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
