Cleanroom Furniture and Stainless Steel Products
Cleanroom Garment Drying Cabinet
A non-tumbling Type 304L stainless cabinet that circulates filtered warm air around hanging cleanroom garments and footwear after controlled laundering.
- Gentle non-tumbling warm-air drying
- Full-width garment rail and shoe rack
- Removable intake filter and drip tray
- Timer control with high-limit protection
Product Introduction

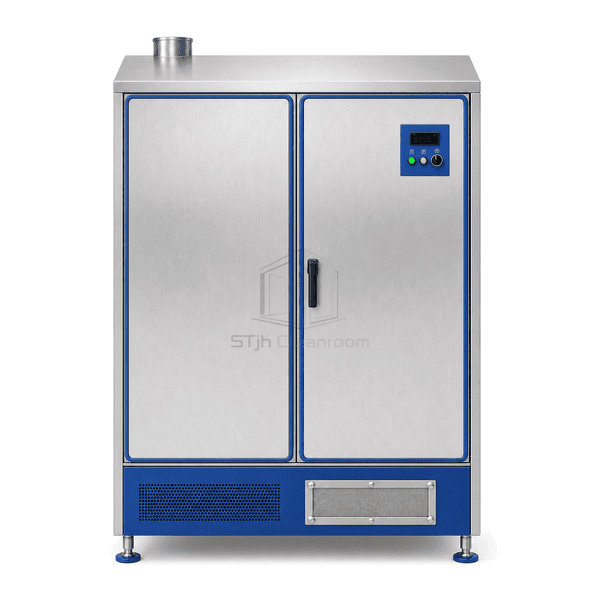

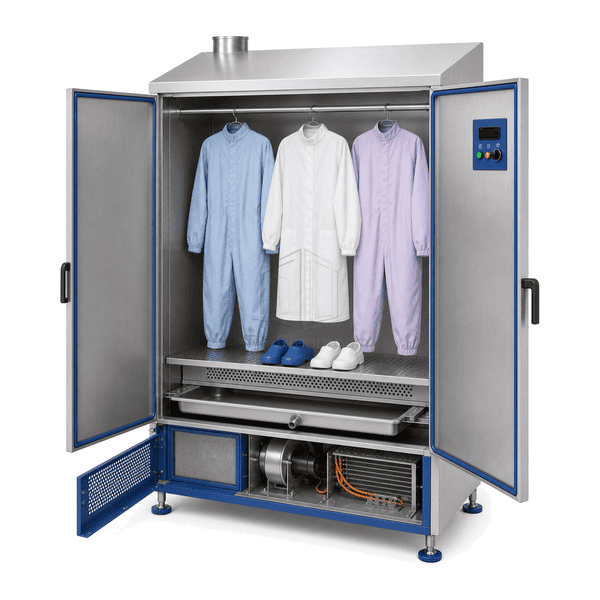

The cleanroom garment drying cabinet uses a bottom-mounted blower and electric heating assembly to move filtered warm air upward through a perforated shoe rack and around garments suspended from a full-width stainless rail. Moist air leaves through a 100 mm roof exhaust connection instead of condensing on the enclosure walls. The Type 304L stainless body is permanently welded, closed on three sides and finished with a sloped hygienic roof. Twin gasketed doors isolate the load during operation, while a removable intake filter and drip tray can be reached from the lower service zone without dismantling the hanging section.
Key Features
A perforated lower rack supports shoes and gloves while leaving the main hanging length available for one-piece garments.

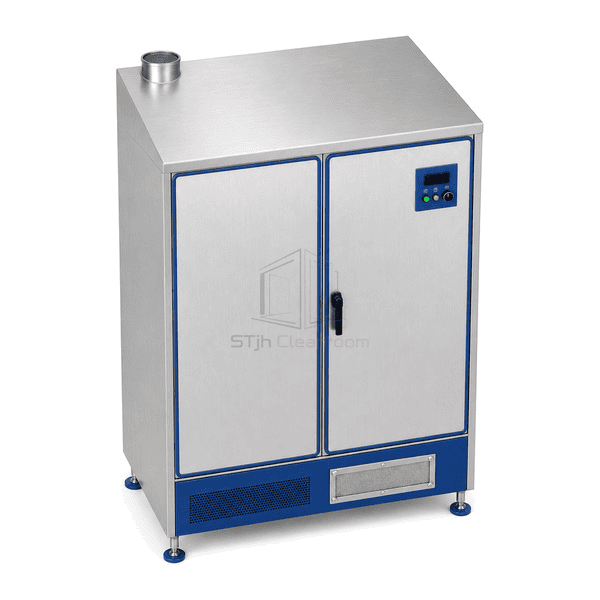

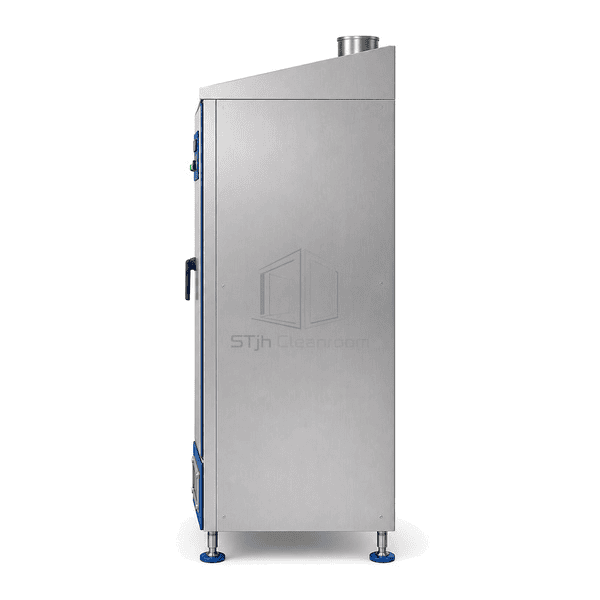

The roof exhaust collar gives humid discharge air a defined path rather than releasing it through door gaps.
A front cycle timer, run indicator and independent temperature limiter keep the drying controls visible outside the wet load area.
Customer Product Concerns
Clean garments need to dry evenly without tumbling damage, retained cabinet moisture or contact between footwear and long apparel.
Air-dried coveralls remain damp in folds where garments hang closely together.A forced upward airflow path passes filtered warm air around spaced hangers and through the lower perforated rack.
Tumble drying can abrade closures, elastic cuffs and coated textile surfaces.Stationary rail drying removes mechanical tumbling while keeping garments suspended in their natural shape.
Wet footwear placed below garments leaves water on the cabinet floor.A perforated shoe rack and removable drip tray separate footwear and collect drainage at the serviceable lower level.
Moist exhaust air condenses inside closed storage cupboards.The dedicated roof outlet directs humid process air away from the insulated door seals and interior panels.
Typical Applications
Cleanroom laundry return areasPharmaceutical gowning support roomsMedical-device reusable apparel dryingLaboratory coat preparation areasHygienic production workwear rooms
Technical Parameters
Typical configurable specifications for a stainless warm-air cleanroom garment drying cabinet are listed below.
| Core Material | Type 304L stainless steel welded enclosure with filtered warm-air blower, electric heater, hanger rail, perforated shoe rack and removable drip tray |
|---|---|
| Panel Thickness | 1.2–1.5 mm enclosure panels, doors and internal air-distribution parts |
| Effective Width | 1000 mm overall cabinet width |
| Maximum Length | 2100 mm maximum overall height including the roof exhaust collar |
| Steel Facing Thickness | 1.2–1.5 mm Type 304L stainless outer body, doors and interior liner |
| Core Density | 7900–8000 kg/m³ for Type 304L stainless steel |
| Thermal Conductivity | 14–16 W/(m·K) for Type 304L stainless steel |
| Surface Finish | Brushed 320-grit stainless exterior with smooth stainless interior, blue silicone door seals and blue control plate |
| Joint Type | Continuously welded carcass with gasketed twin doors, sealed lower blower plenum, perforated distribution rack and 100 mm roof exhaust spigot |
| Customization | Available based on the intended application and operating environment. |
Available Options
Ambient-air or heated-air drying modesAdditional glove and boot drying attachmentsHEPA intake filtration moduleType 316L electropolished interior
Planning a Cleanroom Garment Drying Cabinet specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
