Cleanroom Electrical Socket

A flush power outlet that contains its socket module, wiring box and perimeter seal behind one smooth cleanable wall plate.

Flush Hygienic Faceplate
Concealed Perimeter Gasket
Color-Coded Power Module
Rear Sealed Wiring Box

Request a Quote Browse Products

Product Introduction

The cleanroom socket replaces a projecting domestic outlet with a recessed stainless or coated-steel service plate. Its selected receptacle module is mounted through the plate, the perimeter gasket remains hidden behind the flange, and a sealed rear box contains terminals and cable entries. The plate can carry one or more outlets while maintaining an even wall plane around each device.

Key Features

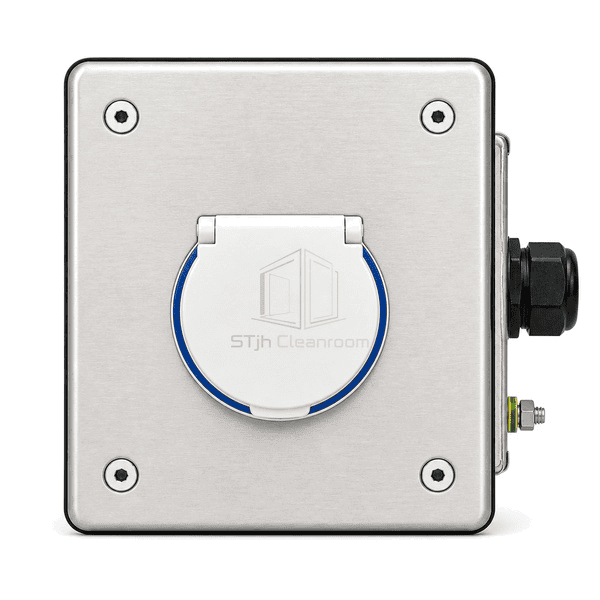

The broad flush faceplate covers the wall cutout and exposes no rough panel edge.

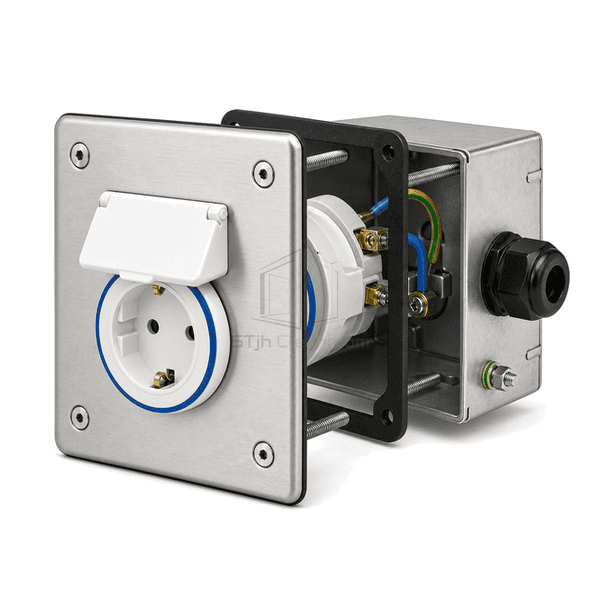

A concealed gasket seals the complete plate perimeter without an external bead.

Colored inserts distinguish voltage or circuit purpose at a glance.

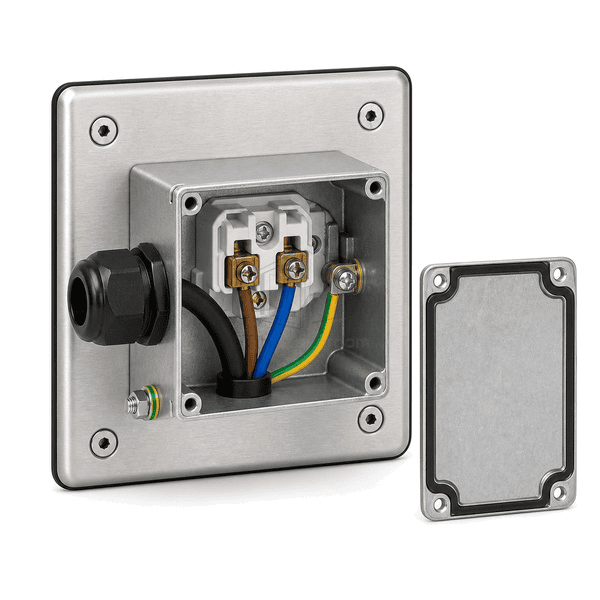

The rear box separates live terminals from the cleanroom cavity.

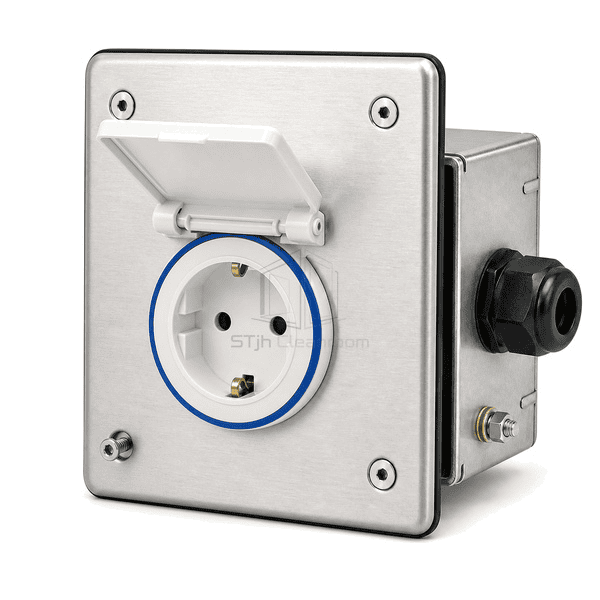

Countersunk retained fasteners keep the exposed surface smooth.

Customer Product Concerns

Power outlets must remain accessible without creating deep recesses, open wall cavities or ambiguous circuit identification.

A domestic outlet frame leaves multiple dirt-catching ledges.One flat sanitary plate surrounds the complete receptacle module.

Cleaning liquid enters an open wall box.The rear enclosure and cable gland isolate wiring from the room-side opening.

Users connect equipment to the wrong voltage circuit.Color, pin pattern and engraved circuit labels differentiate the supply.

Exposed perimeter sealant tears during repeated wiping.The primary gasket sits concealed behind the rigid faceplate flange.

Typical Applications

Cleanroom equipment outletsLaboratory bench powerGowning room utilitiesControlled-area housekeeping circuits

Technical Parameters

Typical configurable construction ranges for a cleanroom electrical socket are listed below.

Core Material	SUS304 or SUS316L faceplate with engineering-polymer receptacle insert and steel rear wiring box
Panel Thickness	1.5-3.0 mm hygienic front-plate thickness
Effective Width	120-300 mm faceplate width
Maximum Length	Up to 400 mm overall plate height for multi-outlet layouts
Steel Facing Thickness	1.5-3.0 mm stainless room-side plate
Core Density	Approximately 7900-8000 kg/m³ for austenitic stainless faceplate material
Thermal Conductivity	14-16 W/(m·K) for the stainless faceplate
Surface Finish	Fine-brushed or electropolished stainless with colored polymer outlet insert
Joint Type	Flush recessed plate with concealed perimeter gasket, sealed rear box and cable gland
Customization	Available based on the intended application and operating environment.

Available Options

Single, duplex or multi-gang outletIEC, regional or pin-and-sleeve receptacleCircuit color and laser markingStainless or white coated plate
