Cleanroom Wall and Ceiling Systems

Cleanroom Ceiling Suspension Rod

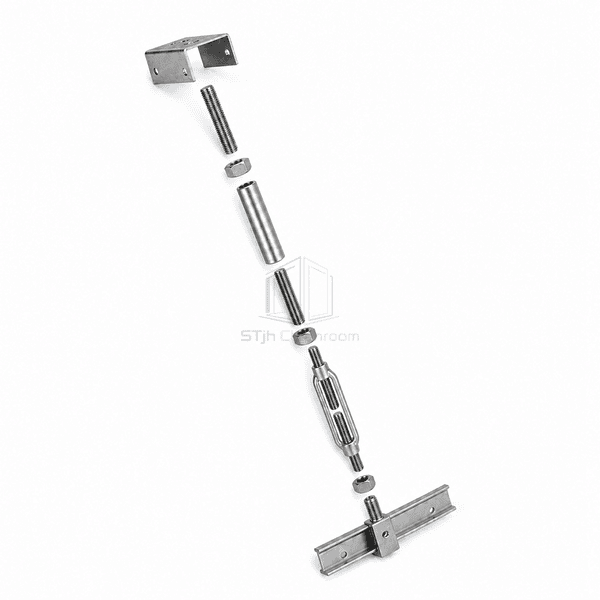

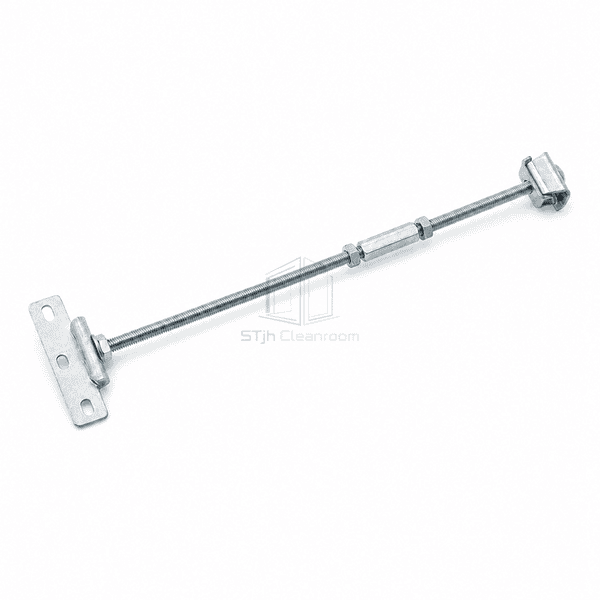

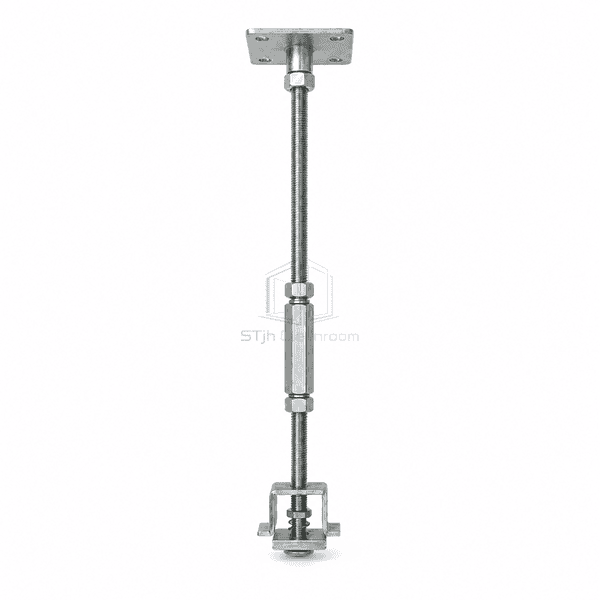

A galvanized threaded steel hanger used to suspend and level cleanroom ceiling grids from the overhead building structure.

Continuous threaded height adjustment
M8 and M10 diameter options
Compatible with couplers and turnbuckles
Galvanized corrosion-resistant finish

Request a Quote Browse Products

Product Introduction

The Cleanroom Ceiling Suspension Rod transfers the ceiling-grid load to a structurally rated overhead support while providing fine vertical adjustment. Its continuous metric thread accepts nuts, coupling sleeves, turnbuckles and purpose-designed grid clips, making it suitable for both short drops and extended hanger assemblies. Zinc protection is used for typical dry ceiling voids, with stainless steel available where a higher level of corrosion resistance is required.

Key Features

Full-length threading permits precise ceiling elevation adjustment.

Coupling nuts can join rod sections where a longer suspension drop is needed.

Standard metric sizes match widely used cleanroom grid hardware.

A zinc-coated surface protects carbon steel during indoor service.

Compact hardware leaves working space for ducts, filters and utilities above the ceiling.

Customer Product Concerns

Suspended cleanroom ceilings depend on many small hanger points, so adjustability, hardware compatibility and resistance to loosening are essential.

Fixed-length hangers make it hard to compensate for an uneven overhead slab.Continuous threads provide controlled vertical adjustment at each suspension point.

Long ceiling drops can exceed the practical length of a single rod.Threaded coupling sleeves connect compatible rod sections into a continuous hanger assembly.

Mismatched hanger hardware slows ceiling-grid assembly.Standard M8 and M10 formats pair with common nuts, turnbuckles and cleanroom grid clips.

Untreated steel can corrode in a ceiling void and stain adjacent components.Zinc-coated carbon steel or optional stainless steel provides a more durable exposed surface.

Typical Applications

Suspended cleanroom ceiling gridsWalkable ceiling support frameworksFilter and light support modulesLaboratory ceiling systemsControlled-environment service ceilings

Technical Parameters

Rod diameter, drop length and connection hardware are selected for the ceiling support arrangement. Panel-only properties are identified as not applicable because this product is a solid steel hanger.

Core Material	M8 or M10 galvanized carbon-steel threaded rod
Panel Thickness	N/A — not applicable to a threaded suspension rod
Effective Width	N/A — specified by 8 or 10 mm nominal rod diameter
Maximum Length	3000 mm standard full-length rod
Steel Facing Thickness	N/A — the component is solid steel rather than steel-faced paneling
Core Density	N/A — not applicable to a solid steel suspension component
Thermal Conductivity	N/A — the rod is not used as thermal insulation
Surface Finish	Zinc-plated or hot-dip galvanized; stainless steel optional

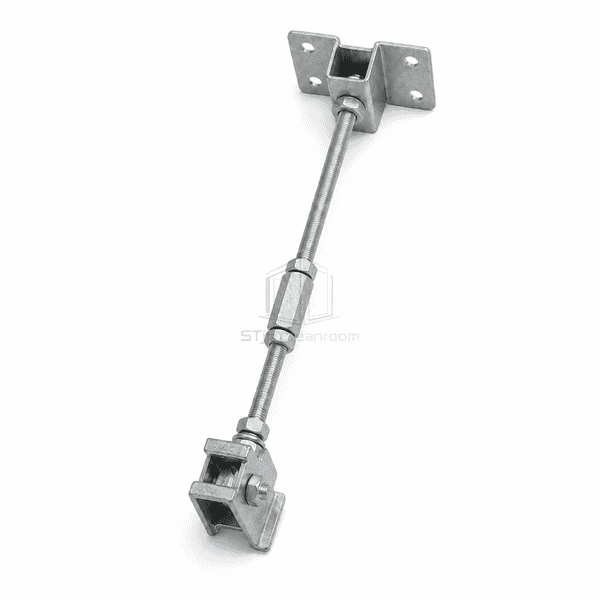

Joint Type	Metric threaded connection with nuts, coupler or turnbuckle and ceiling-grid clip
Customization	Available based on the intended application and operating environment

Available Options

M8 galvanized threaded rodM10 galvanized threaded rodStainless-steel threaded rodCoupler, turnbuckle and grid-clip hardware sets

Planning a Cleanroom Ceiling Suspension Rod specification?

Send us your dimensions, installation conditions, performance targets and required surface finish.
