Cleanroom Cleaning, Disinfection and Sterilization
Cleanroom Air Circulation Disinfector
A local cleanroom recirculation unit integrating sealed airflow paths, staged filtration, optional treatment modules, and controlled supply-air delivery.
- Airtight recirculation path limits bypass around filter stages
- HEPA-filtered supply supports local particle-load reduction
- Plug-and-play controls simplify supplemental cleanroom airflow
Product Introduction

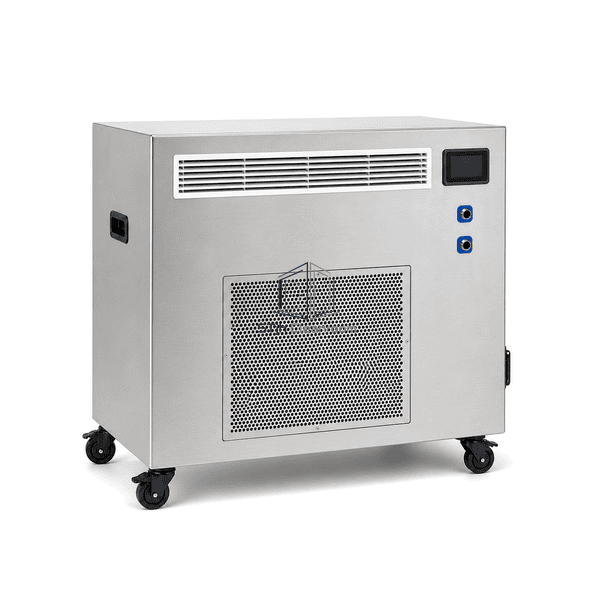

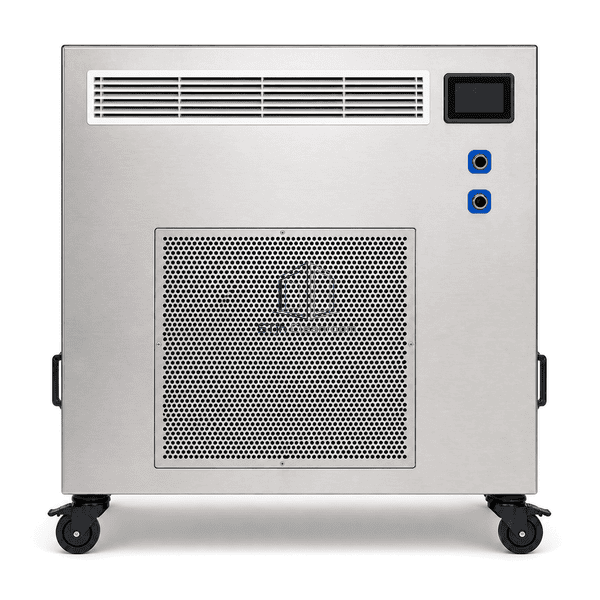

This cleanroom air circulation disinfector is configured as a floor-standing or ceiling-mounted local recirculation module. Its sealed plenum, smooth enclosure, high-efficiency filtration, and variable fan enable targeted air turnover in pharmaceutical and other demanding controlled spaces. Final performance depends on room airflow mapping, filter selection, placement, and the facility contamination-control plan.
Key Features
Prefilter and final HEPA filter stages
Energy-efficient variable-speed EC fan
Differential-pressure filter monitoring
Low-noise lined enclosure
Directional supply and return grilles
Optional cooling coil or compatible treatment module
Local touchscreen and remote control interface
Customer Product Concerns
Cleanrooms may develop local particle or heat loads that a centralized system cannot address efficiently. Supplemental equipment must avoid leakage, uncontrolled drafts, excessive noise, and maintenance practices that release captured contamination.

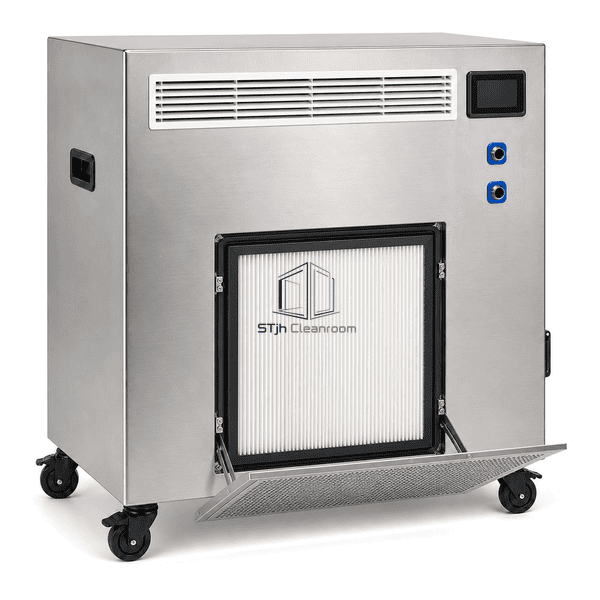

How is filter bypass controlled?Gasketed filter tracks, clamping hardware, and sealed casing joints maintain the intended airflow path.
Can airflow be balanced on site?The EC fan offers adjustable output, and optional airflow sensing supports commissioning at the selected operating point.

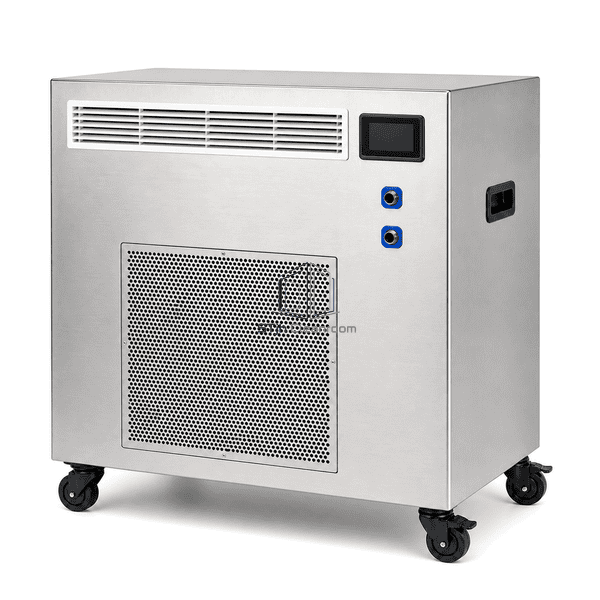

How is maintenance handled cleanly?Dedicated access panels permit staged filter removal and internal wipe-down without dismantling the main casing.
Can the unit communicate with facility controls?Optional Modbus or dry-contact interfaces provide run status, alarms, and speed commands.
Typical Applications
Pharmaceutical cleanroomsBiotechnology production spacesMedical-device controlled assemblyLaboratory support roomsFood and beverage clean zonesElectronics and precision manufacturing
Technical Parameters
Return air enters through a cleanable grille and passes a prefilter, fan, treatment section, and final high-efficiency filter before discharge through a directional supply grille. An EC fan provides adjustable airflow, while pressure sensors monitor filter loading. Optional cooling or compatible disinfection modules can be integrated.
| Core Material | Aluminum or stainless-steel sealed plenum with gasketed filter tracks |
|---|---|
| Panel Thickness | 25–50 mm double-skin casing panels |
| Effective Width | 700–1200 mm unit width |
| Maximum Length | 900–1600 mm maximum casing dimension |
| Steel Facing Thickness | 0.8–1.2 mm metal facing |
| Core Density | 40–60 kg/m³ acoustic and thermal insulation |
| Thermal Conductivity | 0.030–0.040 W/(m·K) |
| Surface Finish | White powder coating or brushed stainless steel with cleanable grilles |
| Joint Type | Gasketed double-skin casing joints with sealed filter clamps and flanged air connections |
| Customization | Available based on the intended application and operating environment. |
Available Options
Floor-standing or ceiling-mounted configurationHEPA filter grades and prefilter formatsIntegrated cooling coilUV-C or other compatible air-treatment sectionLocal touchscreen and BMS connectionStainless-steel internal surfacesSupply and return duct adapters
Planning a Cleanroom Air Circulation Disinfector specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
