Cleanroom Control and Environmental Monitoring Systems
Carbon Dioxide Sensor

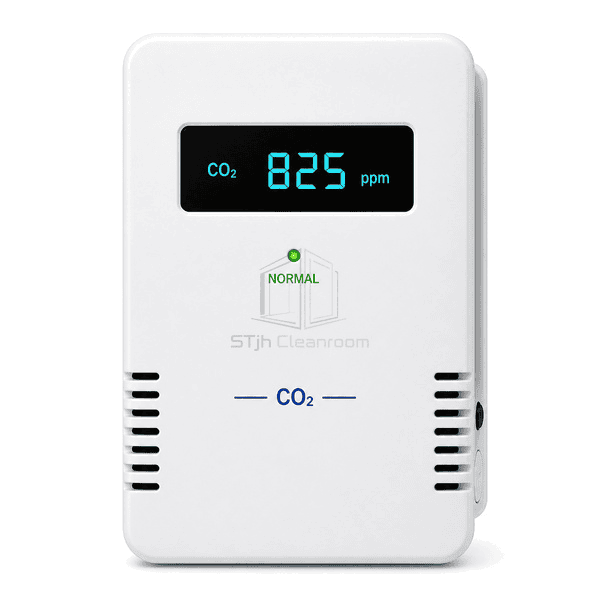

A wall-mounted NDIR sensor that measures carbon dioxide concentration for occupancy-related ventilation and cleanroom environmental trending.
- NDIR CO₂ Measurement
- Long-Term Optical Stability
- Ventilation Demand Signal
- Selectable 0-10 V, 4-20 mA or Fieldbus Output
Product Introduction

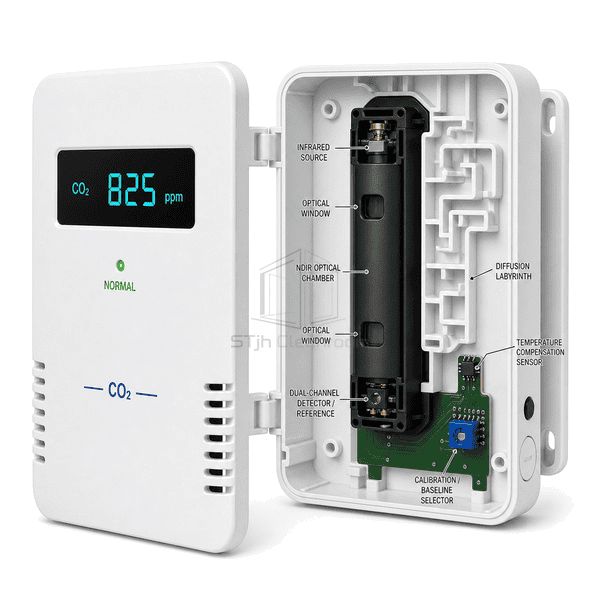

The carbon dioxide sensor uses non-dispersive infrared absorption to measure CO₂ without consuming a reactive sensing material. Room air diffuses through protected openings into the optical chamber, where wavelength-selective measurement separates carbon dioxide absorption from the reference signal. Temperature compensation and baseline-management options support stable indoor operation. Selectable voltage, current or network outputs let ventilation controls, environmental monitoring and room displays use the same measured concentration.
Key Features
A dual-channel or reference-compensated design reduces long-term light-source drift.
Ventilated wall housing samples occupied-zone air while protecting the optical chamber.
Configurable analog and network outputs support both HVAC control and monitoring.
Customer Product Concerns
CO₂ measurements are most useful when the sensor sees representative room air and its baseline behavior matches the occupancy pattern.
A sensor near a door or supply diffuser responds to transient air instead of the occupied zone.A stable wall location away from direct drafts provides a more representative room sample.
Automatic baseline correction is unsuitable for continuously occupied spaces.Selectable baseline strategy allows fixed or manually referenced calibration where CO₂ never falls to outdoor levels.
Dust or cleaning spray enters the optical path.Protected diffusion vents and an easy-wipe enclosure reduce direct contamination.
Ventilation controls and monitoring use separate sensors that disagree.Multiple outputs distribute one measured value to both systems.
Typical Applications
Occupied cleanroom ventilationLaboratory room monitoringControlled production suitesClean corridors and support areas
Technical Parameters
Typical materials and dimensions for a wall-mounted NDIR carbon dioxide sensor are listed below.
| Core Material | NDIR optical chamber with infrared source and detector in flame-retardant polycarbonate housing |
|---|---|
| Panel Thickness | 30-50 mm sensor depth |
| Effective Width | 90-130 mm housing width |
| Maximum Length | Up to 150 mm housing height |
| Steel Facing Thickness | 0 mm; non-metallic wall enclosure |
| Core Density | 1180-1220 kg/m³ for polycarbonate housing material |
| Thermal Conductivity | 0.19-0.22 W/(m·K) for polycarbonate enclosure |
| Surface Finish | Smooth white housing with black display window and green status indicator |

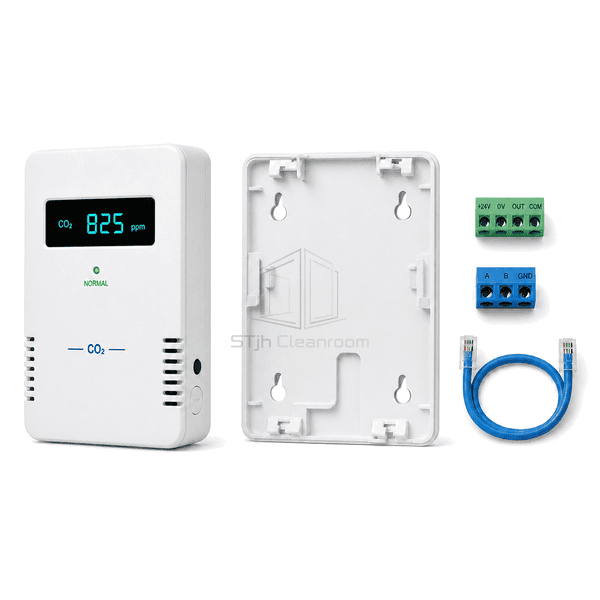

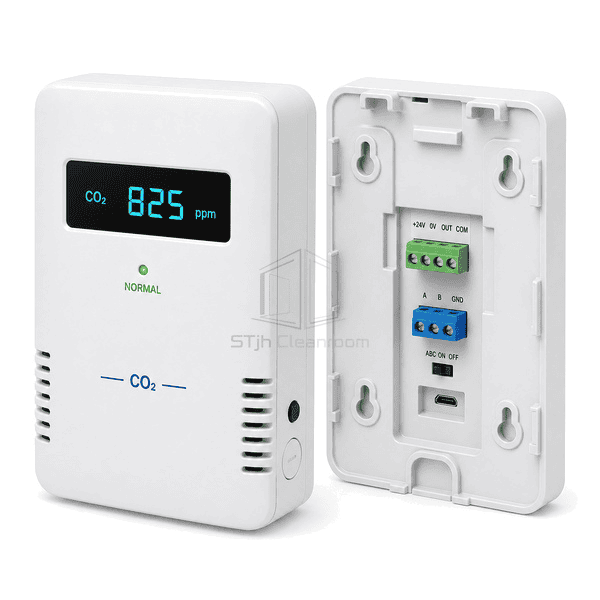

| Joint Type | Rear wall-mount base with protected diffusion vents and pluggable signal terminal |
| Customization | Available based on the intended application and operating environment. |
Available Options
Display or blank faceVoltage or 4-20 mA outputModbus or BACnet communicationSelectable baseline correction
Planning a Carbon Dioxide Sensor specification?
Send us your dimensions, installation conditions, performance targets and required surface finish.
